6-20 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004

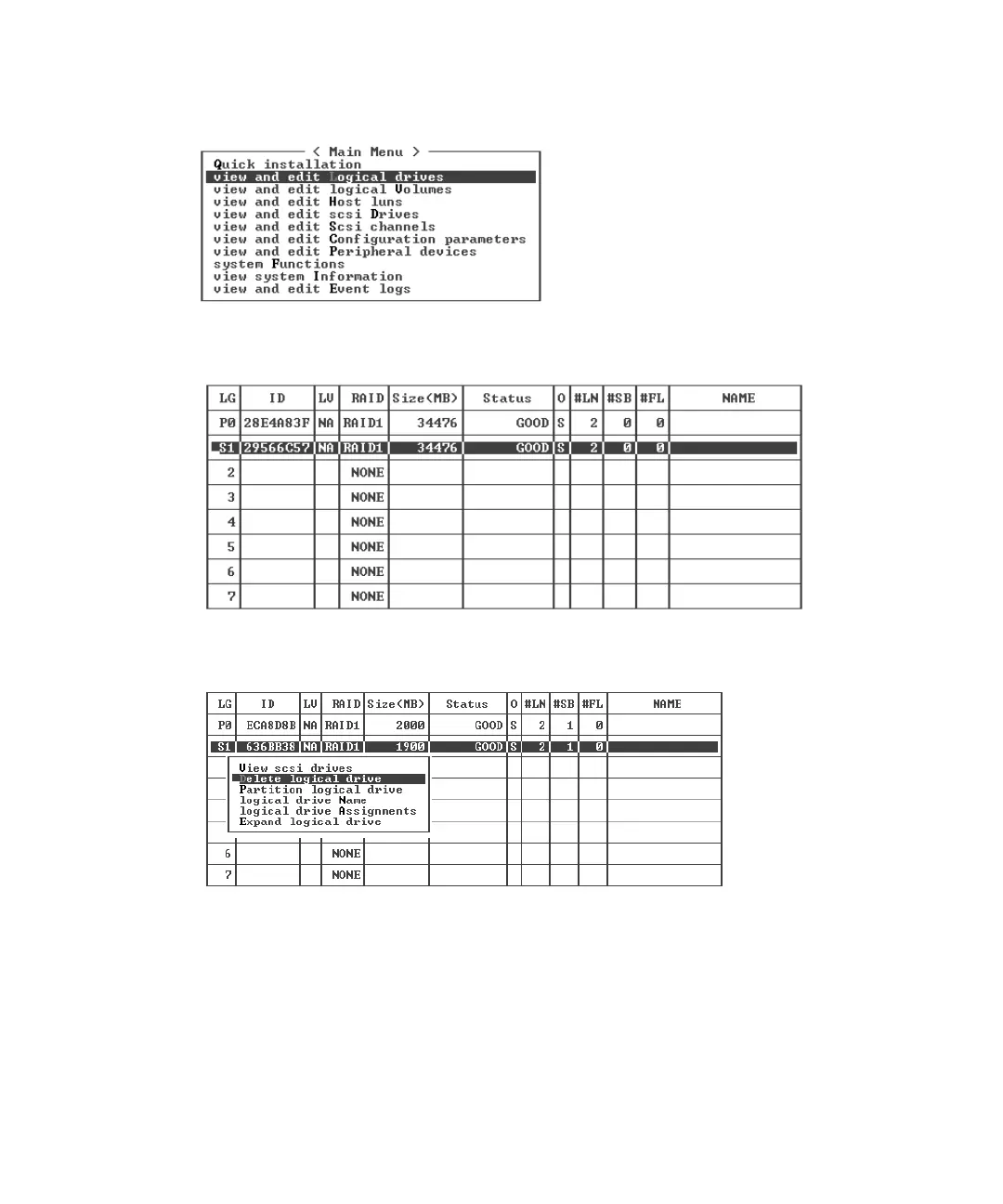

7. From the Main Menu, choose “view and edit Logical drives.”

8. Select a logical drive you unmapped and want to delete, and press Return.

9. Choose “Delete logical drive.”

A warning notice is displayed asking if you are certain you want to delete the logical

drive and its data.
