Innagator | Technical Pack140

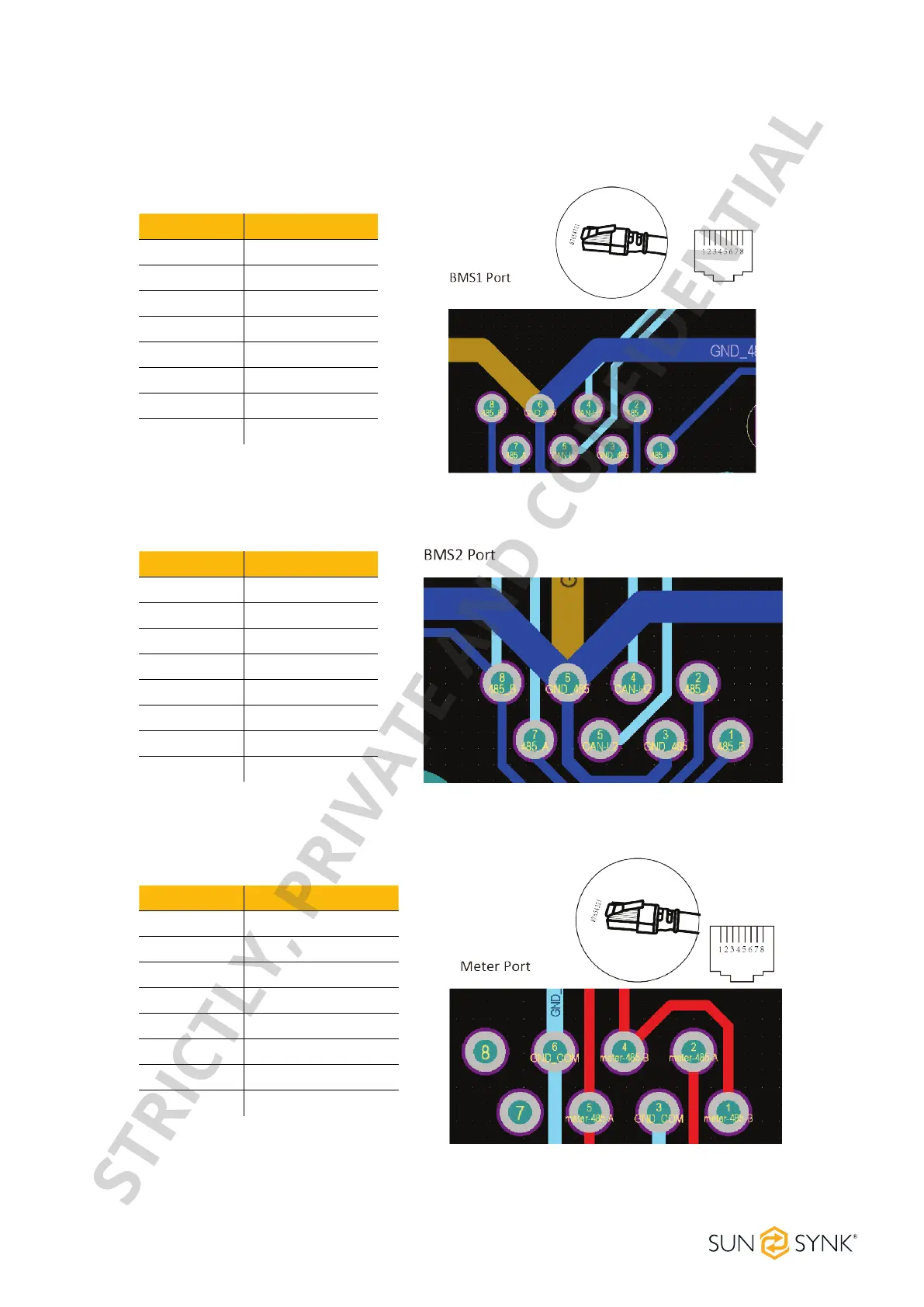

Appendix A
No. RS485 Pin
1 485_B
2 485_A
3 GND_485
4 CAN_H1
5 CAN_L1
6 GND_485
7 485_A
8 485_B
DenitionofRJ45PortPinforBMS1
DenitionofRJ45PortPinforBMS2
No. RS485 Pin
1 485_B
2 485_A
3 GND_485
4 CAN_H2
5 CAN_L2
6 GND_485
7 485_A
8 485_B
DenitionofRJ45PortPinforMeter
No. Meter-485 Pin
1 Meter-485_B
2 Meter-485_A
3 GND_COM
4 Meter-485_B
5 Meter-485_A
6 GND_COM
7 -
8 -
