Innagator | Technical Pack141

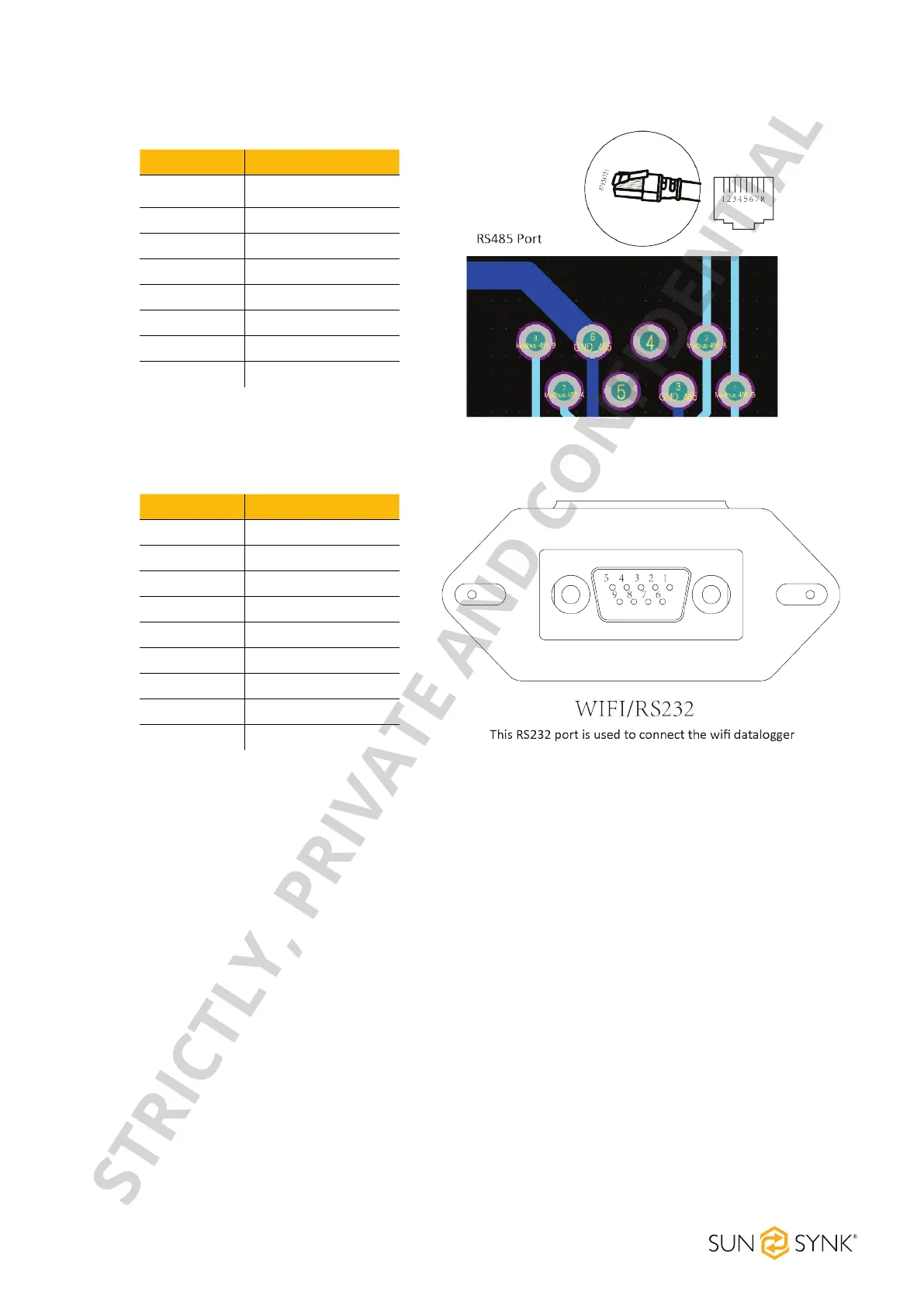

DenitionofRJ45PortPinforRS485
No. RS485 Pin
1 Modbus-485_B
2 Modbus-485_A
3 GND_485
4 -
5 -
6 GND_485
7 Modbus-485_A
8 Modbus-485_B
RS232
No. WIFI/RS232
1
2 TX
3 RX
4
5 D-GND
6
7
8
9 12Vdc
