SWDM40 OPERATION & MAINTENANCE MANUAL
40

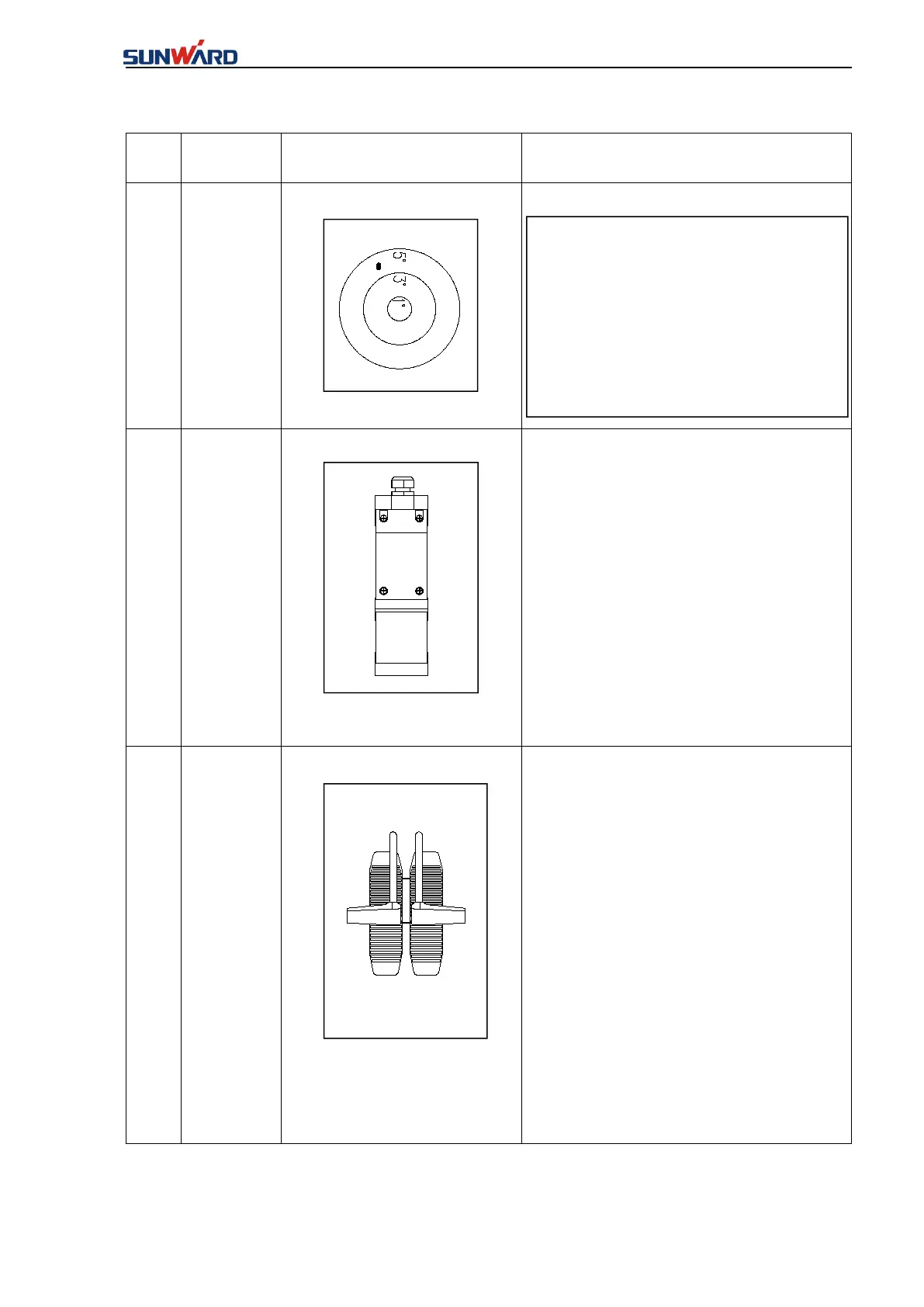

Num
ber
Name
Appearance
Function
1
Gradienter
Check the slope of the ground.
2
Main winch
suspension
pedal
Use with “Button 2- Main winch suspension
switch” in the membrane key panel. When the
switch is connected and the main winch
suspension pedal is treaded, the main winch
function is enabled. Step on the pedal again, the
main winch function is disabled; the main
interface has suspension status tips at the same
time.
3-4
Left/right
travelling
pedal valve
“Button 1- Working switch” in the membrane
key panel is not connected:
Push the two handle forward, the machine
will be advanced.
Push the two handle backward, the machine
will back off.
Push the left handle forward and the right
handle backward, the machine will be turned
right.
Push the left handle backward and the right
handle forward; the machine will be turned left
in situ.
When “Button 1- Working switch” in the
membrane key panel is connected, there is no
action.
Warning
★When travel in falling gradient，grade of slope
in longitudinal must be no more than 5° ， and
adjust the mast backward no less than 10°～15°.
★When traveling, grade of lateral slope must be
no more than 5°.
