SWDM40 OPERATION & MAINTENANCE MANUAL
bottom with red line.

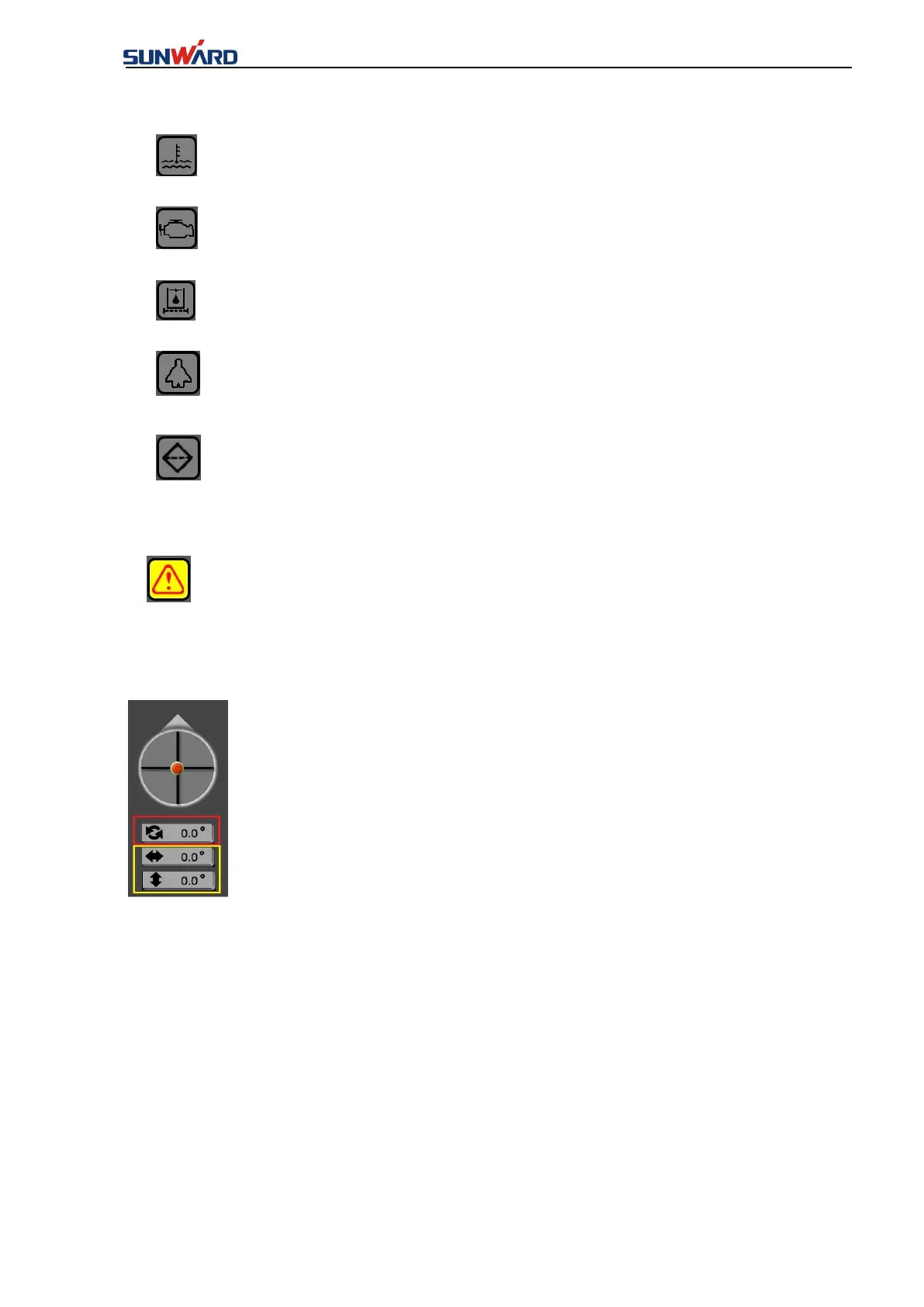

Warning of engine water temperature: when the engine water temperature is too high,
the icon will turn yellow bottom with red line.
Engine failure alarm prompt: this icon will turn yellow bottom with red line when the
engine has failure.
Hydraulic enable prompt: hydraulic system pilot solenoid valve electricity, pilot oil
circuit connected when the icon will become yellow bottom with red line.
Warning of limit position of main winch: when the upper limit position of main winch
hammer is reached, the icon will turn to yellow bottom with red line.
Warning for hydraulic oil returning filter element: when the oil returning filter
element is blocked and the oil returning pressure is too high, the icon will turn to yellow bottom
with red line.
Alarm prompt: in addition to the above alarm, if there is any other alarm on the device,
the icon will turn to yellow bottom with red line. At this time, you should enter the monitoring
interface to view other alarm prompts.
Swing and mast Angle:
The rotation angle is showed in the red box;
The angle of the mast X/Y axis are shown in the yellow box.
3.2.1.2 Leveling Interface
The main interface is shown in figure 3.2.1-1, click "leveling" (Key 5), and enter the " leveling"
interface, shown in figure 3.2.1-2.
