SWDM40 OPERATION & MAINTENANCE MANUAL

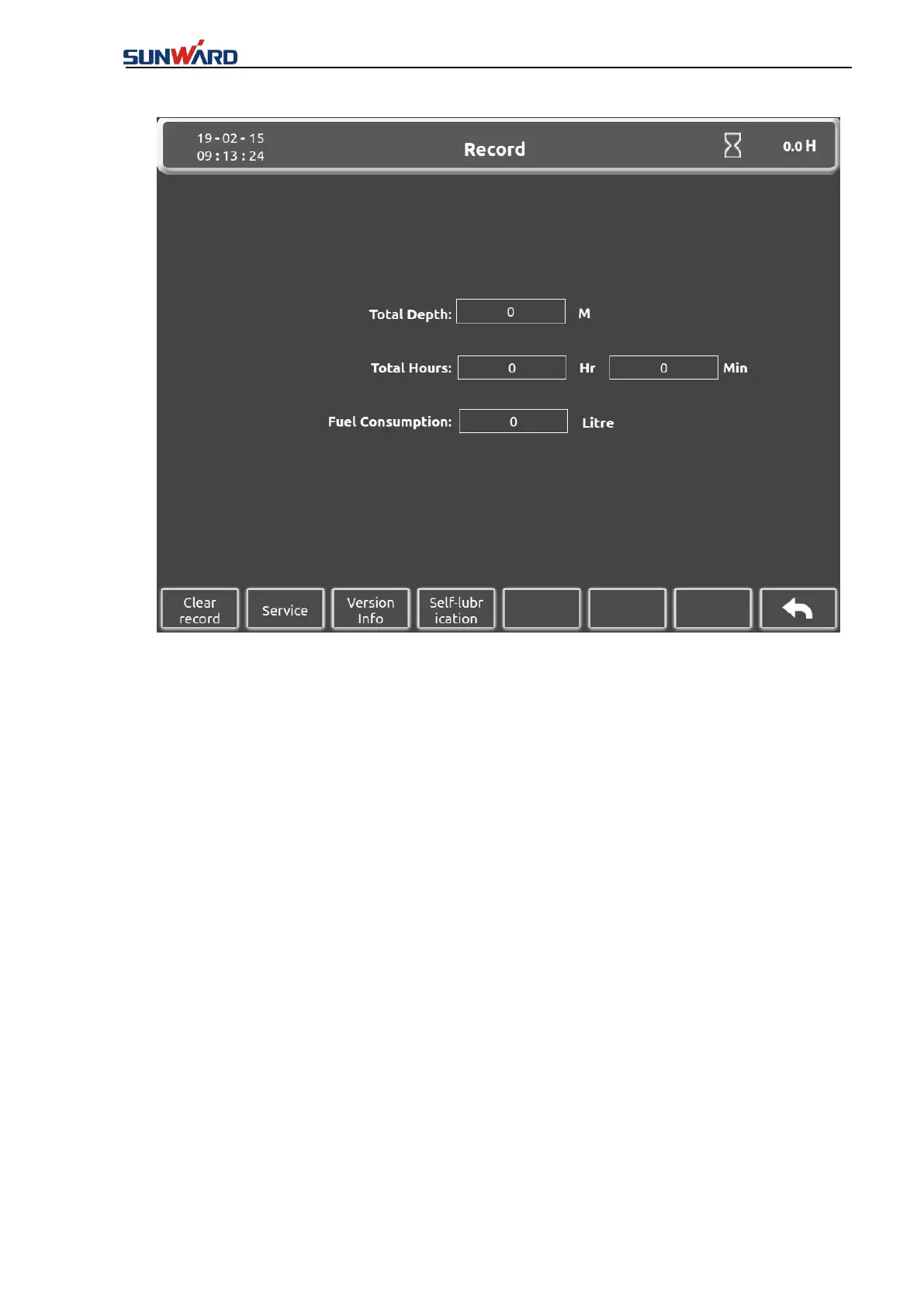

Figure 3.2.1-16
This interface records the accumulated drilling depth and accumulated working hours, total
engine consumption, and the recorded information about the machine, such as the maintenance
information of each key parts of structure, the version of controller and displayer etc.
Enter the "Service Page" by clicking the "Service" (key 2). (Figure 3.2.1-17).
Enter the "Port Monitoring Page 3" by clicking the "Version Information" (key 3). (Figure
3.2.1-18).
Enter the "Main Monitor Interface" (Figure 3.2.1-7) by clicking "Return" (key 8).
