Suzuki GSX-R1000K5 - Rear Seat and Seat Tail Cover; Frame Cover

8-8 CHASSIS

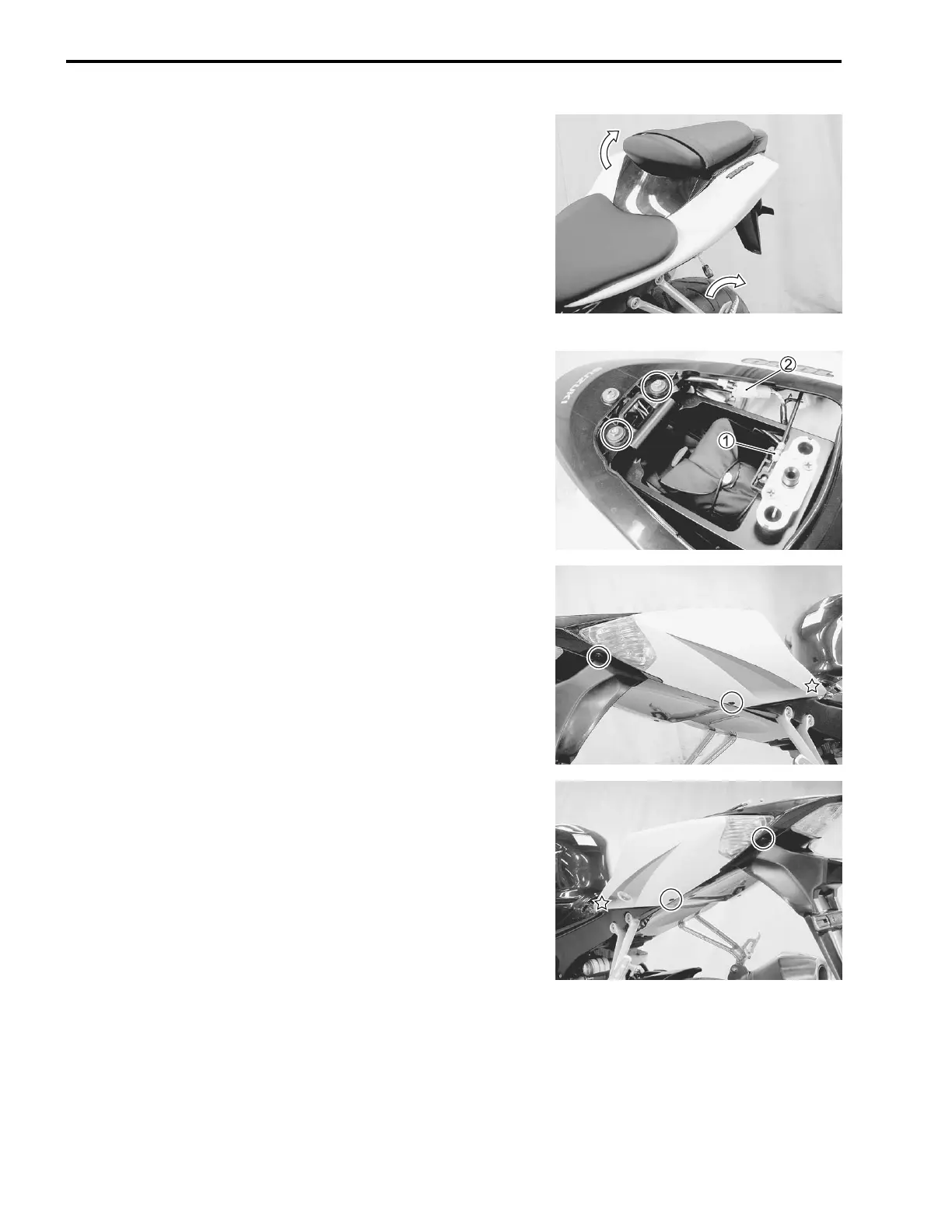

REAR SEAT AND SEAT TAIL COVER
REMOVAL
• Remove the rear seat (seat tail cover) with the ignition key.
INSTALLATION
• Hook the seat hook to the frame and push down the seat
(seat tail cover) firmly until the seat (seat tail cover) snaps into
the locked position.
FRAME COVER
REMOVAL
• Remove the front and rear seats. (8-7 and -8)
• Remove the bolts.
• Disconnect the seat lock cable 1.
• Disconnect the rear combination light lead wire coupler 2.
• Remove the fasteners.
• Remove the frame cover.
NOTE:
“” indicates hook location.
INSTALLATION
• Install the frame cover in the reverse order of removal.
