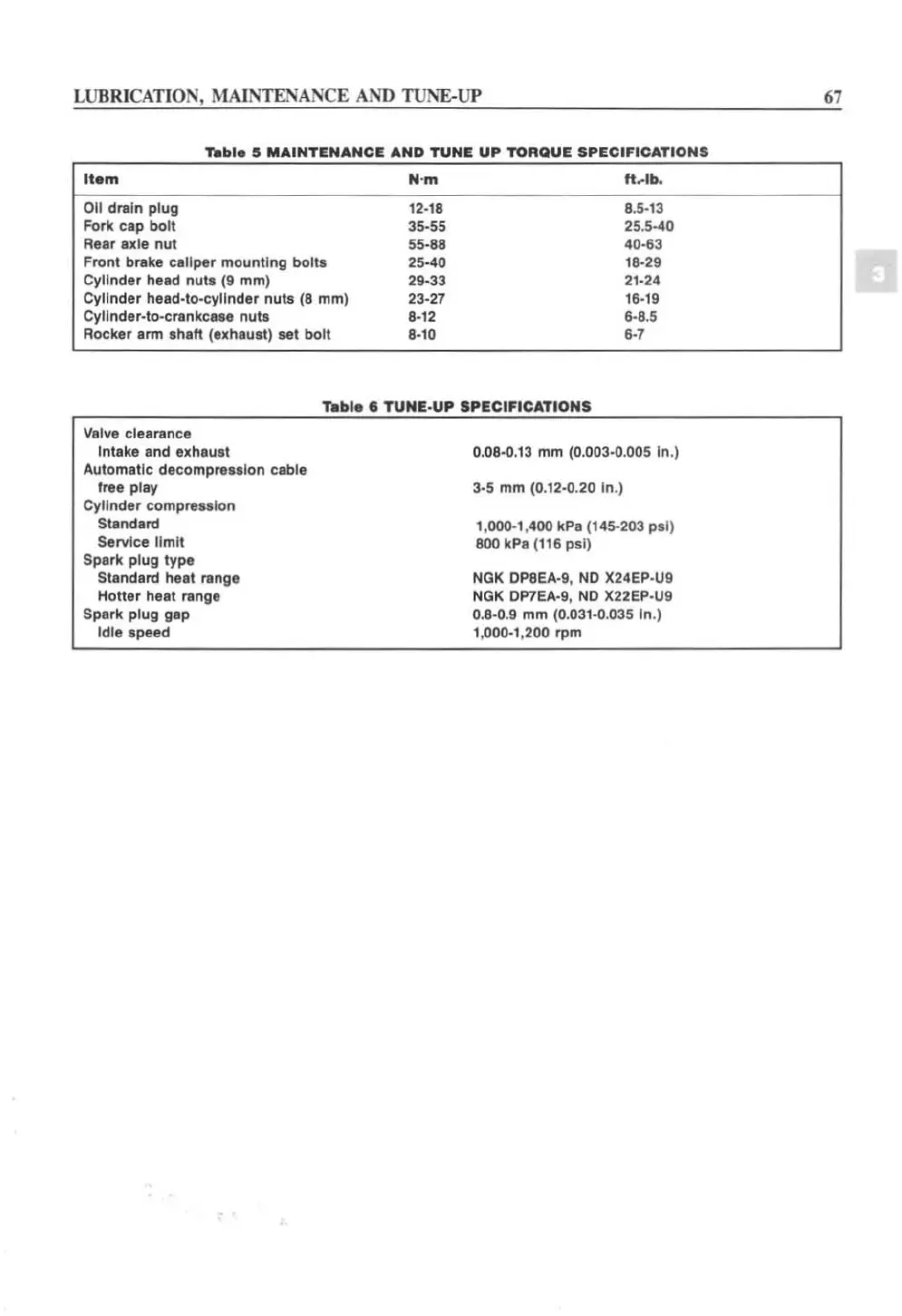

LUBRICATION, MAINTENANCE AND TUNE-UP
,..bl.5 ..... INTEN ... NCE AND TUNE UP TORQUE SPECIFIC ... TIONS
It.m N·m ft ... lb.
Oil drain plug 12-18 8.5- 13
Fork cap boll 35-55 25.5-40
Raar axle nut
55-88 40 - 63
Front brake caliper mount ing bolts
25-40
18- 29
Cylinder head nuts (9 mm ) 29-33 21 -24
Cylinder head-Io-cyllnder nUls (8 mm) 23-27 16-19
Cyllnder-Io-crankcase nuts
8-12
6-8.5
Rocker arm shaft (exhaust) sel bolt 8-10
6· '
,..ble • TUNE_UP SPECIFIC ... TIONS
Valva clearance
Intake and exhauII
Aulomatlc decompression cable
frae play
Cylinder
compression
Standard
Service
limit
Spark plug type
Standard haal range
Hottar heat range
Spsrk plug gap
Idle speed
0.08-0. 13 mm (0.003-0. 005 In.)
3-5 mm (0. 12 -0.20 In.)
1,000-1 ,400 kPa (145-203 psi)
800 kPa (116 psi)
NGK OP8EA-9, NO X24EP-U9
NGK 0P7EA-9,
NO X22EP- U9
0.8-0.9 mm (0.031-0. 035 In.)
1, 000 -1,200 rpm
67
