Suzuki LS650 Savage - Front Master Cylinder (Pulled Back Handlebar)

BRAKES
®
1. Screw
2. Top
cover
3. Diaphragm
4.
Master cvllnder body
5. Clamp
6. Bolt
7. Trim cap
8. Sealing washer
9. Brake hose
10. Union bolt
11 . Bracket
12. Bolt
13. Bracket
14. Grommet

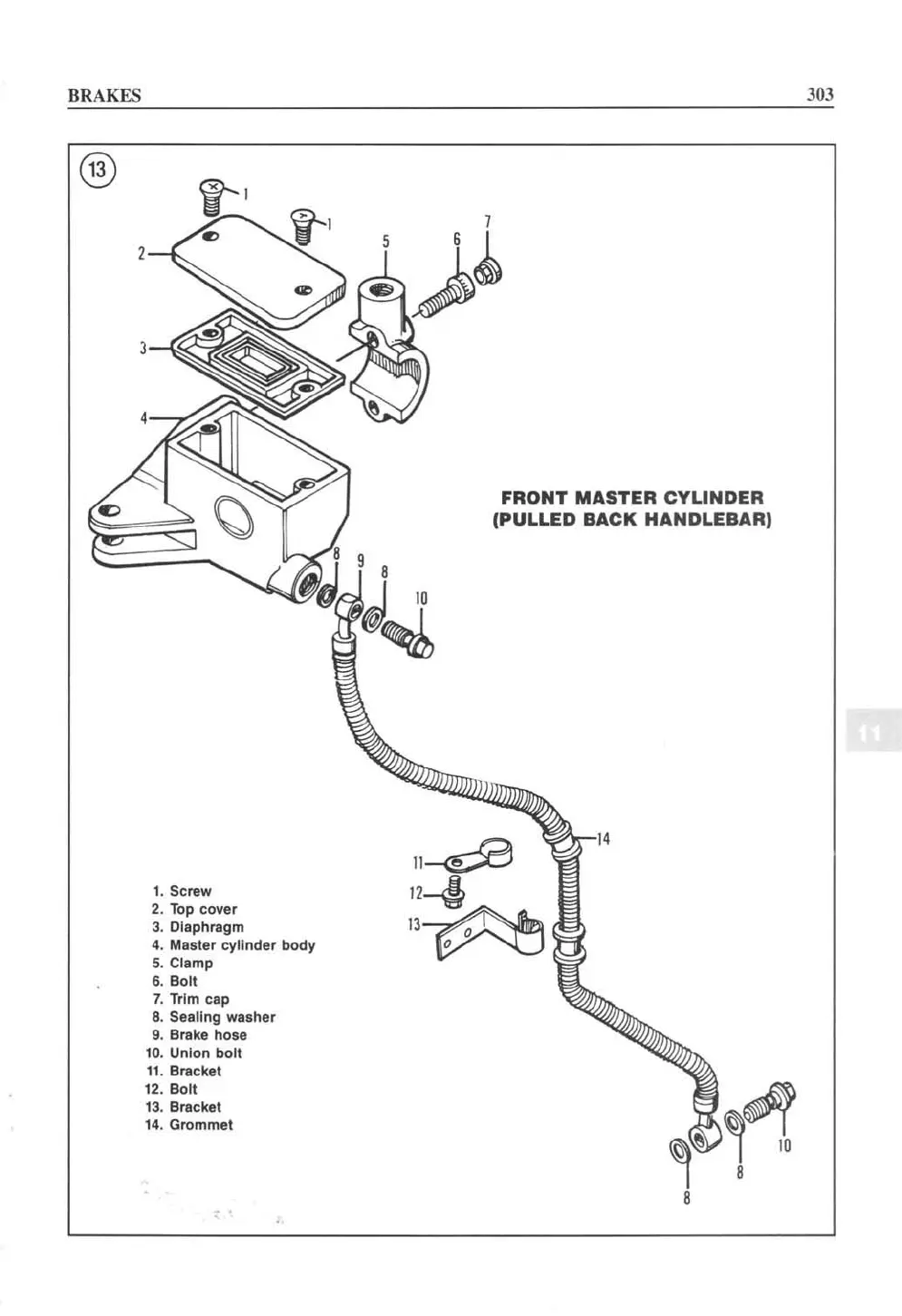

FRONT MASTER CYLINDER
(PULLED BACK HANDLEBAR)
II~
11 --f
13 ~
303
