ENGINE
75

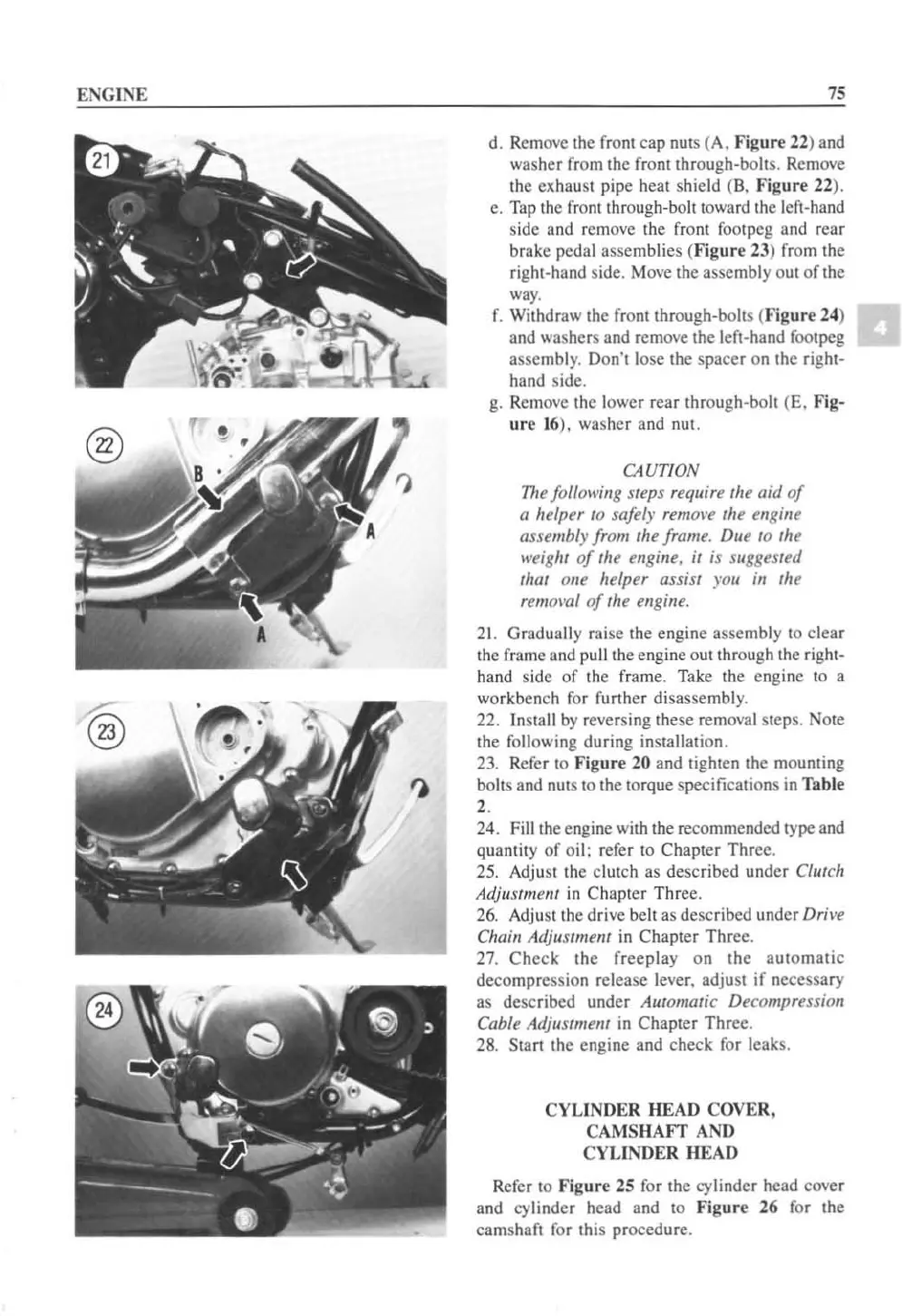

d. Remove
th
e front cap nuts (A. Fig
ur
e 22) and
washer from the front through-bolts. Remove
the exhaust pipe heat s
hi
e
ld
(
B.
Figu
re
22).
c.
Tap
the
front through-bolt toward
the
len-hand
side and remove the from foolpeg and rear
brake pedal assemblies (Fig
ur
e 23) from the
righi-hand side. Move the assembly out of the
way
.
f.
Withdraw the front through-bolls (
Figure
24)
and
washers
and
remove
the
len-hand
footpeg
assembly. D
an',
lose the s
pa
ce r on the right-
hand side.
g.
Remove the lower rear through-bo
lt
(E. Fig-
ur
e 16). washer and nul.
CAUTION
n'l!
/o/loll'ill8 steps require
Ih
e
aid
of
a helper 10 safely rem
Q\'e
the engine
assembly from
Ihe
frame. Dul'
/0
the
weiglu
of
the engine.
il
is suggested
that
onl!
helper assist JOu in the
remoml
of
the engine.
2
1.
Gradually raise the engine assembly
to
clear
the frame and pull the engine out
th
rough the right-
hand side
of
the frame. Take the engine
to
a
wo
rkbench for further disassem
bly.
22. Insta
ll
by
reversing these removal steps. Note
the
following during installation.
23
. Refer
to
Figu
re
20 and lighten the mounting
bolts and nuts
to
the
to
rque speci
fi
catio
ns
in
Table
2.
24. Fill the engine with t
he
re
commended type and
quantity
of
oil: refer to Chapter Three.
25. Adjust the clutch
as
described under Clutch
Adjustment
in
Chapter Three.
26. Adjust the drive belt as described under
Drive
Chain Adjusllllelll
in
Chapler Three.
27.
Check
the freeplay on the
automatic
decompression release lever. adjust if necessary
as described under Automatic Decompression
Cable
AtJjustment in Chapter Three.
28.
Start the engine and c
he
ck for leak
s.
C
YLI
NDER HEAD COVER,
CAMS
H
AFT
AND
CYLIN
DER HEAD
Refer
to
Figu
re
2S
for the
cy
linder head cover
and cylinder head and
to
Figure 26 for the
camshaft
for this procedure.
