Suzuki LS650 Savage - Cylinder Head and Cover

76

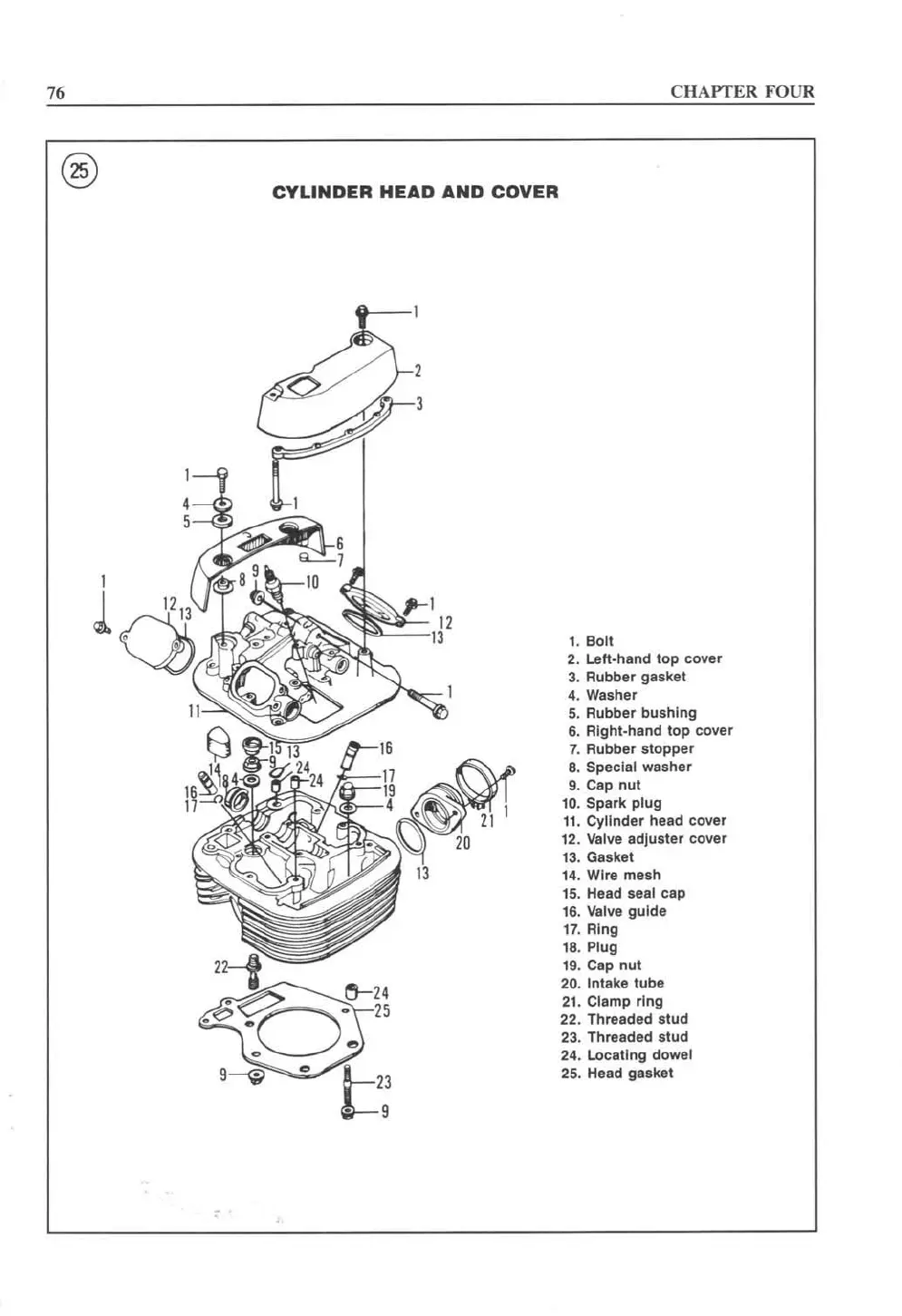

CYLINDER HEAD AND CDVER
1
1
,
CHAPTER FOUR
1. Bolt
2. Left·hand top cover
3. Rubber gasket
4. Washer
S. Rubber bushing
6. Right-hand lop cover
7. Rubber stopper
8. Special washer
9. Cap nul
10. Spark plug
11. Cylinder head cover
12. Valve adjuster cover
13. Gasket
14 . Wire mesh
15. Head seal cap
16. Valve guide
17. Ring
18. Plug
19. Cap nut
20. Intake tube
21, Clamp ring
22. Threaded stud
23. Threaded st ud
24. Locating dowel
25. Head gasket
