Suzuki LS650 Savage User Manual

3 04

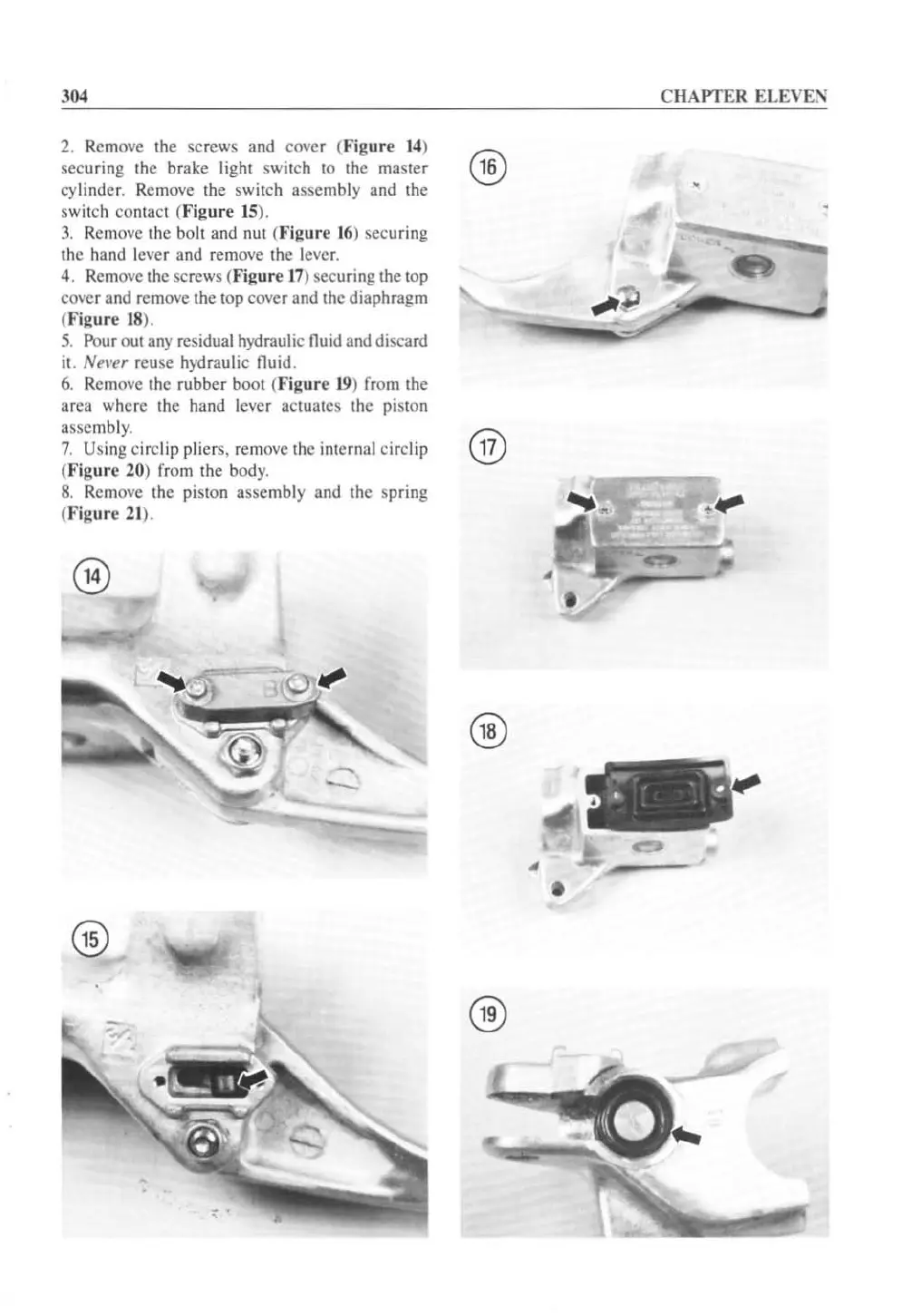

2. Rem ove the sc rews and cove r (Fig ur e 14 )
secur in g the brake light switch to the m aS ler
cy linder. Remove th e switch assembly a nd t he
switch contact ( Figur e IS).
3. Remove the bolt and nut (Fig ur e 16) securing
the hand lever and remove th e levcr.
4. Remove the screws (F ig ur e 17) securing the lOp
cover and remove the top cover a nd the diaphragm
(Figure 18).
5. Pour o ut any re sidual hydraulic flu id and disca rd
il. Nel 'u reu se h yd raul ic fluid.
6. Remove the rubber boo t (Fig ur e 19 ) from the
area
wh ere the hand lever actuates the p is ton
asse mb l y.
7. U si ng cir cl ip pliers, rem ove the internal circlip
Ct' igurc 20 ) from the bod y.
8. Remove the piston assembly a nd the spring
(Fig ur e 21 ).
®
®
®
®
®
CHAPTER ELEVEN
'- .
, .
•
•

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
