9. FINAL DRIVING MECHANISM
9-4

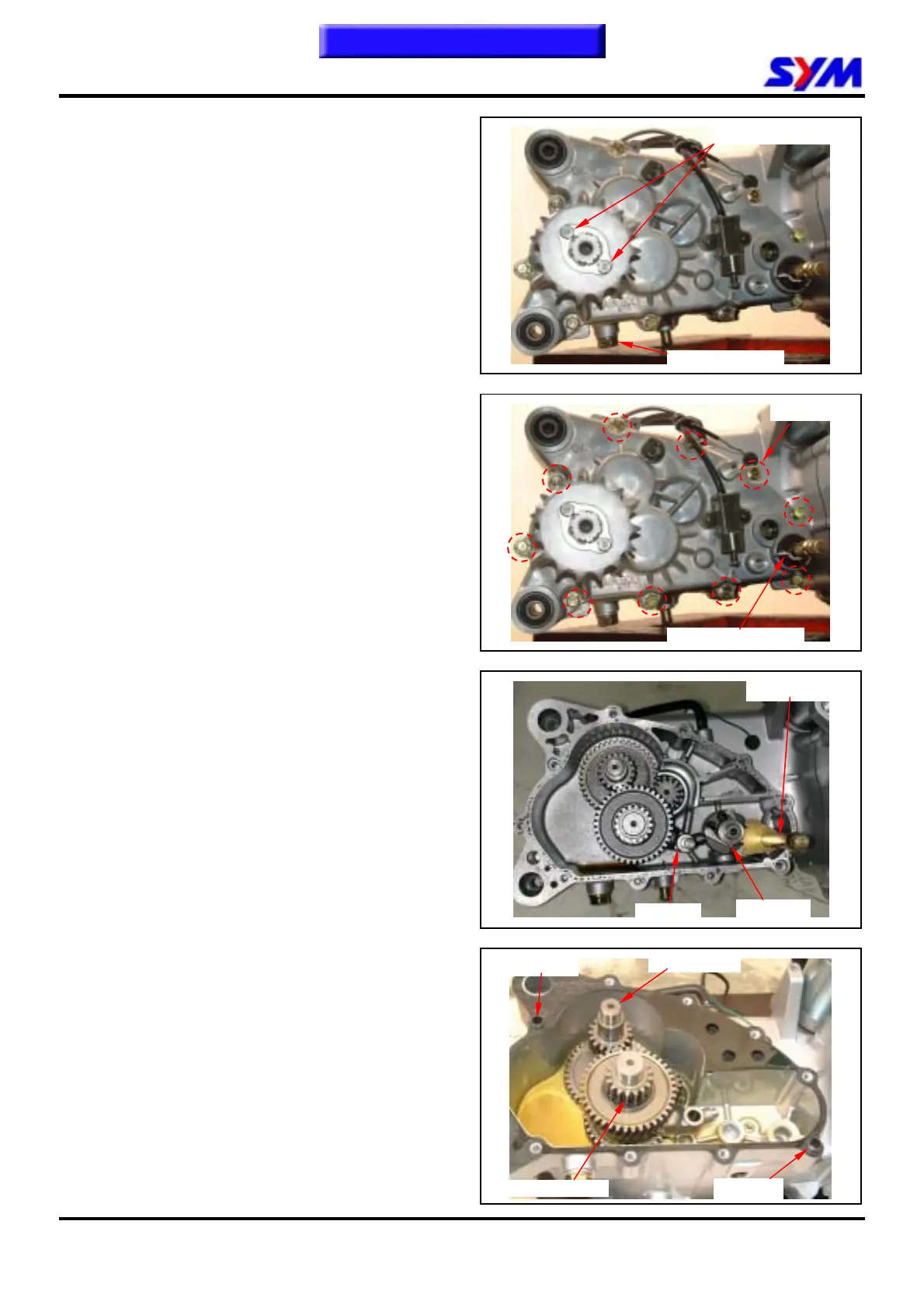

Disassembly of Final Driving
Mechanism
Remove engine.
Remove driven pulley.
Drain gear oil out from gear box.
Remove drive sprocket.
Remove shift spindle bracket.
Remove gear box cover bolts (10 bolts) and then
remove the cover and final shaft.
Remove shift spindle, shift drum, shift fork shaft
and fork.
Remove gear shift shaft, gear and washer.
Remove counter shaft and gear.
Remove gasket and dowel pin.
Gear oil drain bolt
Shift drum
Shift spindle
Counter shaft
Shift fork
To this chapter contents
Drive sprocket bolts
Shift spindle bracket
10 bolts
Gear shift shaft
Dowel pin
Dowel pin
