11. CRANKCASE / CRANK
11-7

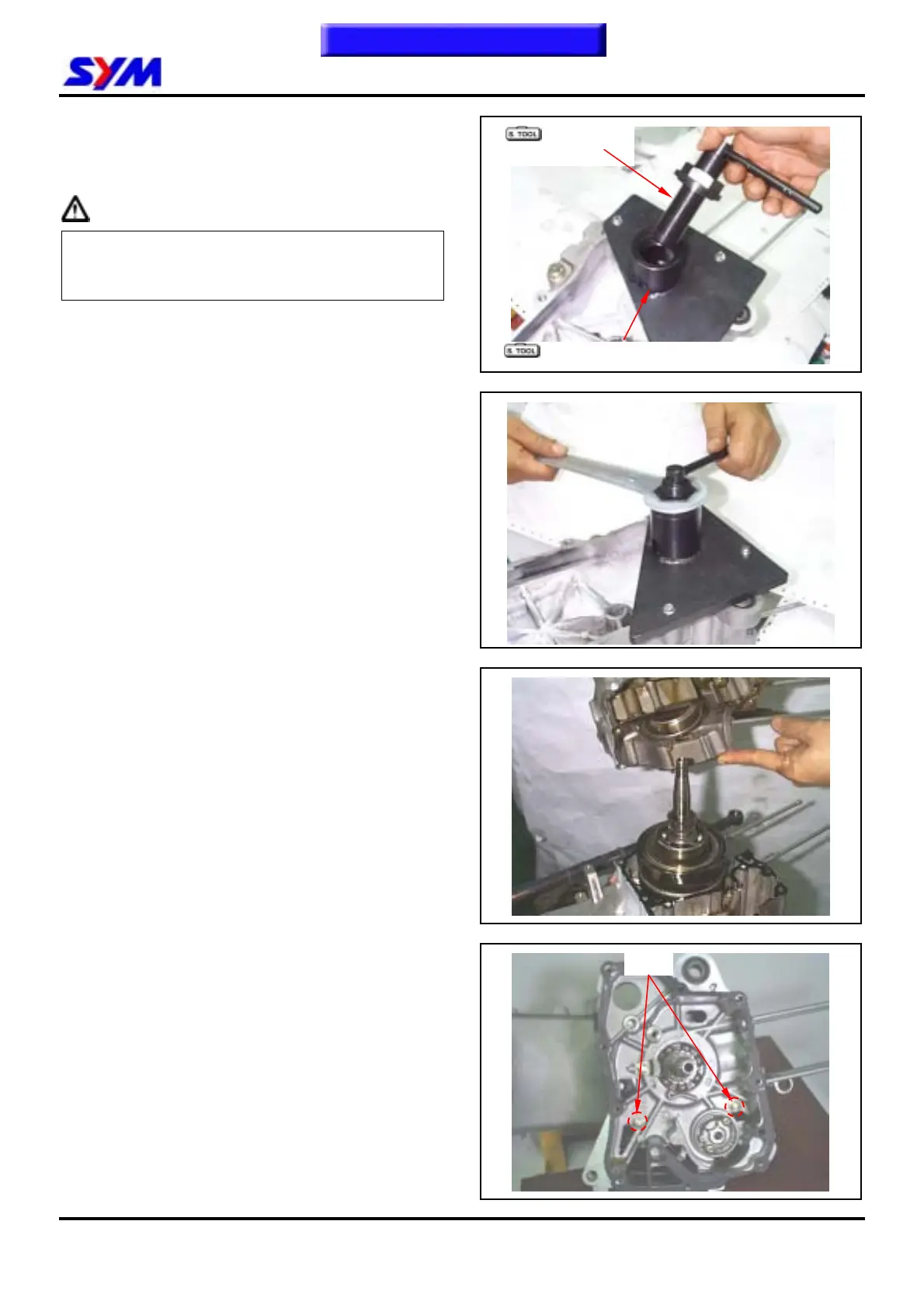

Install R/L. crank case disassemble/install tool on
the left crank case.
Again turns on crank shaft puller on the crankshaft
spiral tooth.
Caution
Crank shaft puller lock into on as far as possible
the crank spiral tooth, prevented pulls the bad
crank spiral tooth.
Gradually tightens the crank shaft puller upper cap
nut, drags into the crank to locate.
Install 2 new dowel pin and new gasket.
Install the right crankcase onto the left crankcase.
Tighten 2 bolts on the crankcase.
Torque value: 0.8~1.2kgf-m
Crank case disassemble/install tool
Crank shaft
puller
To this chapter contents
2 bolts
