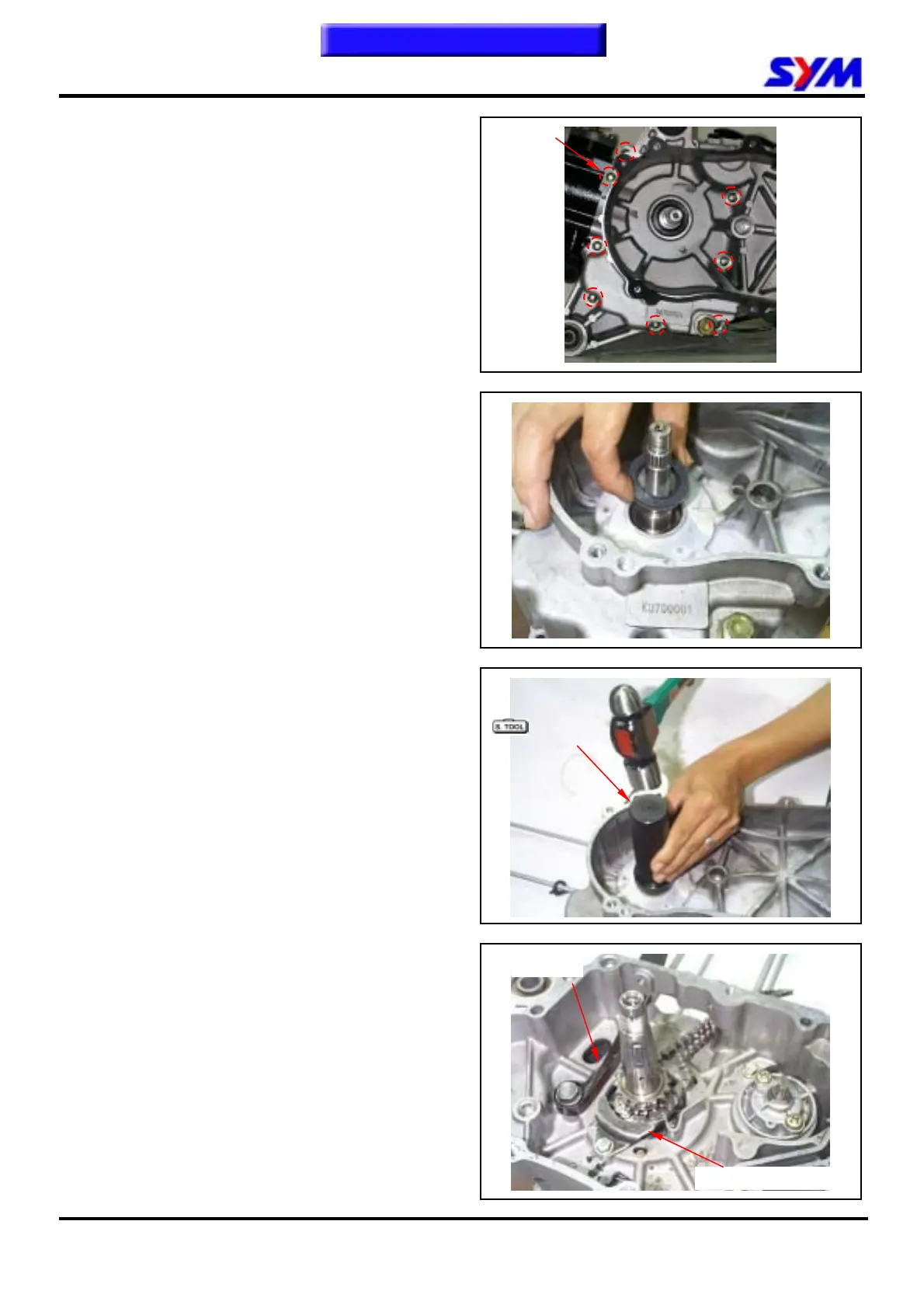

11. CRANKCASE / CRANK
11-8
Tighten 7 bolts on the crankcase.
Torque value: 0.8~1.2kgf-m
Clean the crankshaft.
Apply a layer of grease on the lip of oil seal, Puts
on the left crank shaft.
Install the oil seal in the left crankcase with care
not to damage the lip of the oil seal.
By oil seal driver (25×40×8), oil seal will knock into
locate.
Special tool:
Oil seal driver (25*40*8)
Install the tensioner and tighten the bolts.
Torque value: 1.2 ~1.6kgf-m
Install the cam chain.
Install the cam chain setting plate.
Cam chain setting plate
Tensioner
Oil seal
driver
