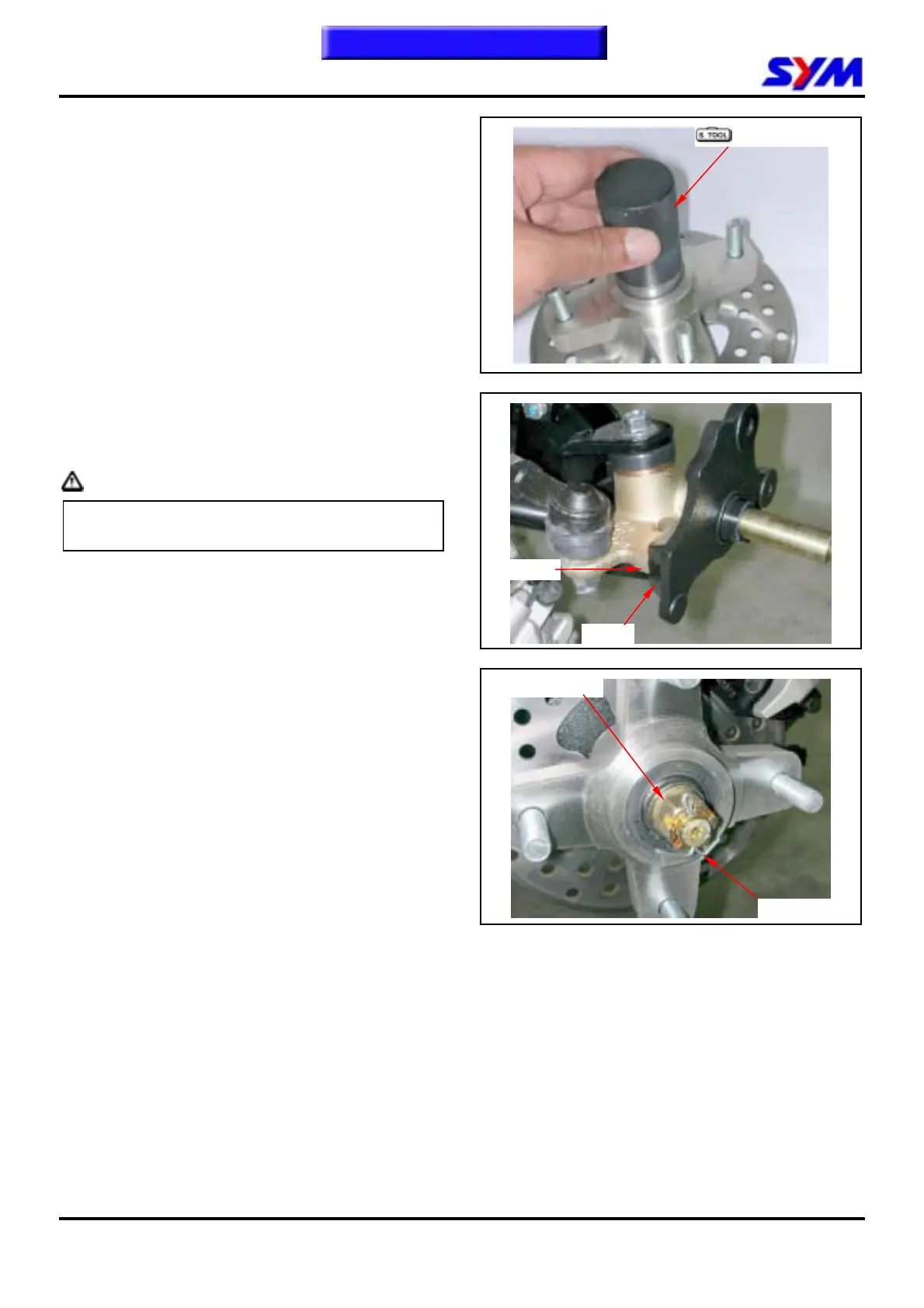

14. FRONT BRAKE & FRONT WHEEL
14-6
Assembly
Install brake disk.
Install new inner side bearing and seal into front
wheel hub.
Install front wheel hub bearing inner spacer.
Install new out side bearing and seal into front
wheel hub.
Special tool:
Bearing driver (6203)
Oil seal drive (24×35×7)
Installation
Install the front brake disk to the wheel hub.
Install brake caliper mounting seat on to knuckle.
Caution
Align the brake caliper mounting seat groove
with the stopper flange.
Install wheel hub and brake disk on to knuckle.
Install wheel hub washer and tighten the wheel
hub nut.
Torque: 5.0kgf-m
Install cotter pin.
To this chapter contents
Groove
Stopper
Wheel hub nut
Cotter pin
Bearing driver
