3. LUBRICATION SYSTEM
3-5

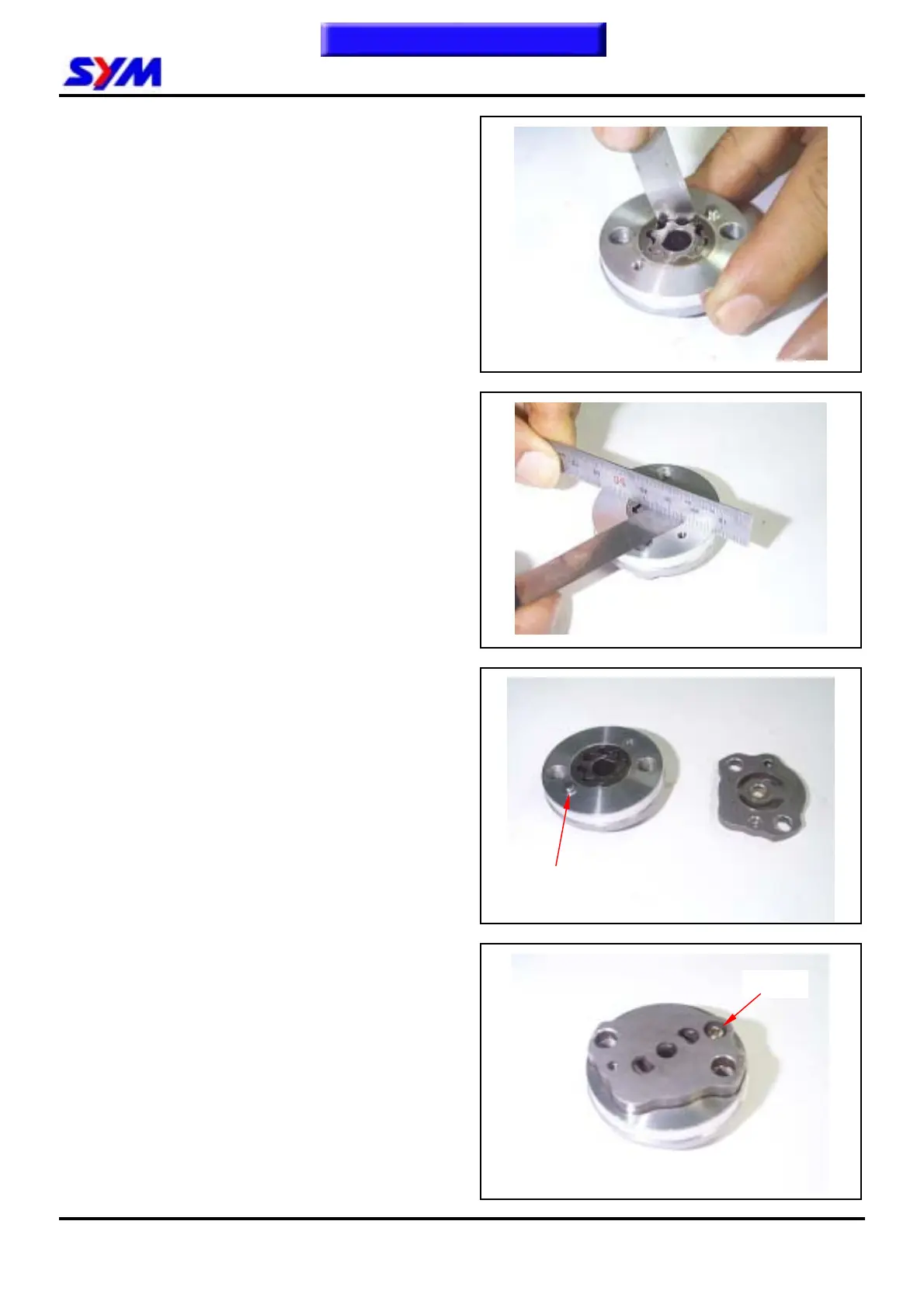

Check clearance between inner and outer rotors.
Limit: 0.20 mm
Check clearance between rotor side face and
pump body
Limit: 0.12 mm
Oil Pump Re-assembly
Install inner and outer rotors into the pump body
Align the indent on driving shaft with that of inner
rotor. Install the driving shaft
Install fixing pin
Install the oil pump cover and fixing pin properly
Pin
1 Screw
