ES3000 User Guide
4-58

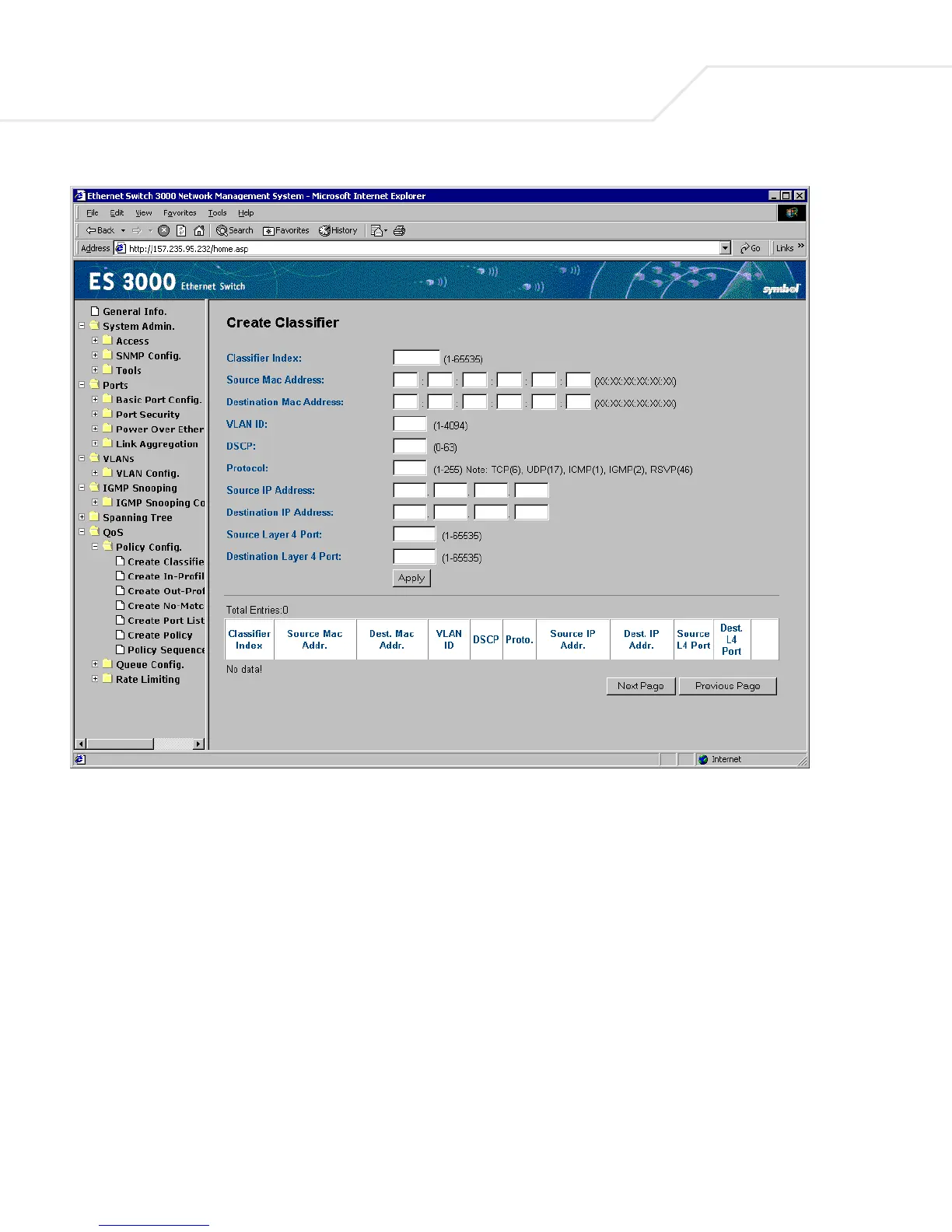

Nine parameters are available to classify a data packet, including the Source Mac Address,
Destination Mac Address, VLAN ID, DSCP, Protocol, Source IP Address, Destination IP Address,
Source Layer 4 Port Number, and Destination Layer 4 Port Number.
Classifier Index: A unique ID to distinguish a classifier. The value can be any number
between 1 and 65535. No default ID is given.
Source MAC Address: The source MAC address of a data packet is 6-bytes long and
presented as twelve characters in hexadecimal. For example, 'arp -a'
on command window can be used to find the MAC address table of a
system running a Microsoft OS.
