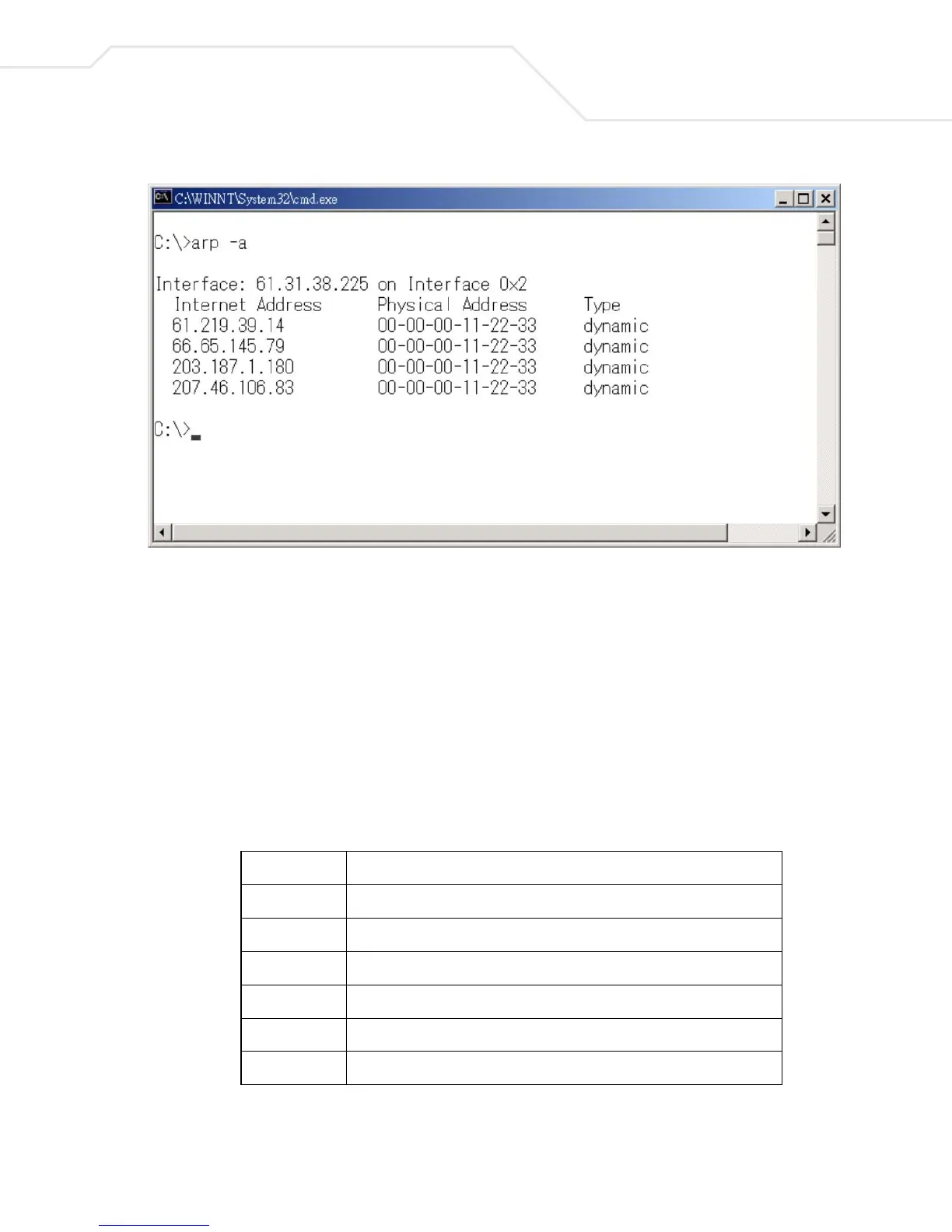

Web Management Access
4-59
Destination MAC: The destination MAC address on a data packet. The format is same
as source MAC address.
VLAN ID: The ID of a VLAN. The value is between 1 and 4094. 0 is used to
indicate no VLAN and 4095 is reserved for system use.
DSCP: Differentiated Service Code Point has 6 bits and the value is between
0 and 63.
Protocol: The protocol ID of an IP packet. It is a single byte with a value is
between 0 and 255.
Common protocol numbers include:
Protocol ID Description
1 ICMP (Internet Control Message Protocol)
2 IGMP (Internet Group Management Protocol)
6 TCP (Transmission Control Protocol)
17 UDP (User Datagram Protocol)
46 RSVP (Resource reSerVation Protocol)
80 HTTP (HyperText Transport Protocol)
