Administration Console Acce
ss
3-45

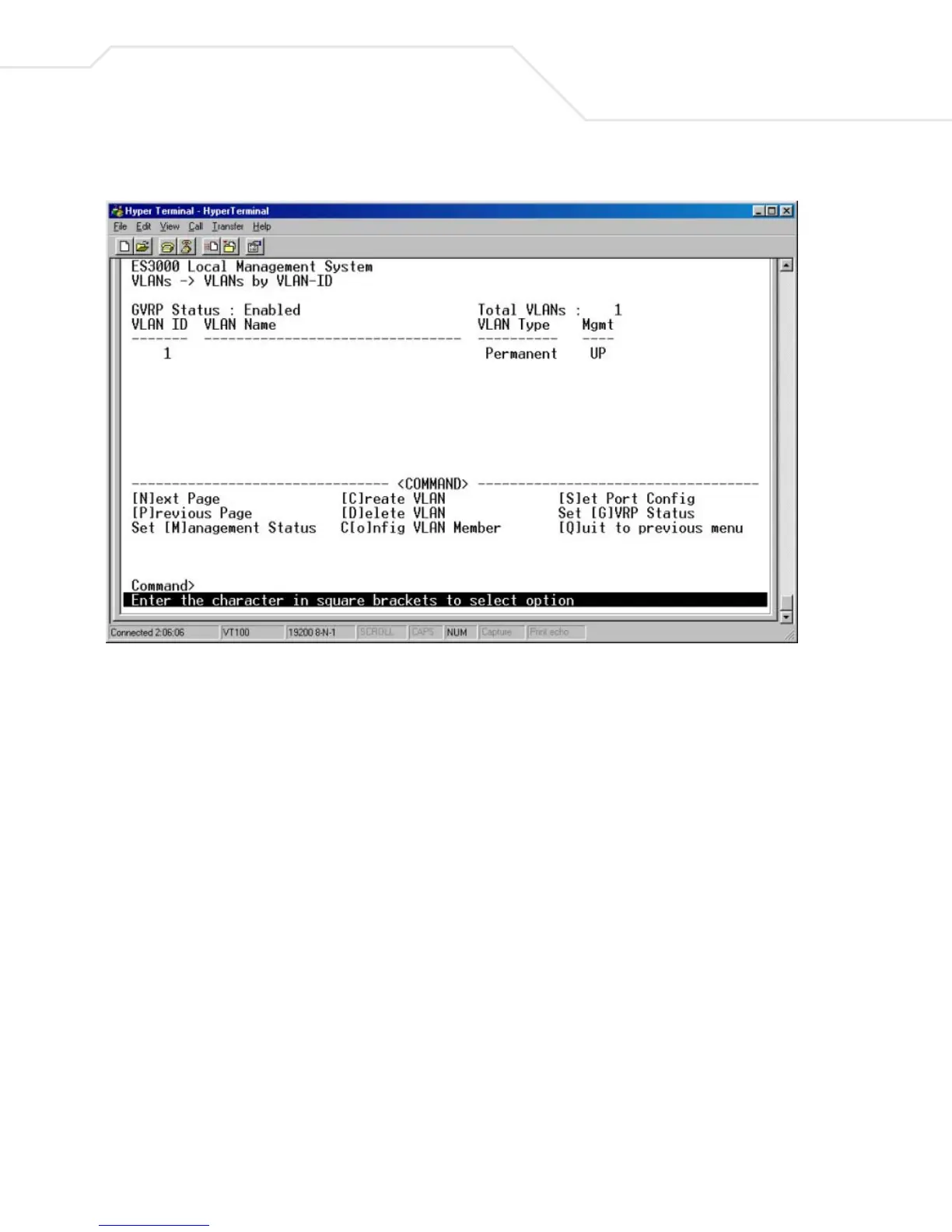

T
o create a new VLAN Group:
1.
Select
Create VLAN
.
2.
Enter the VLAN ID and name in the provided fields.
3.
Add VLAN members if so desired.
4.
Click
Apply
.
T
o delete a VLAN Group:
1.
Select
Delete VLAN
.
2.
Give the correspondin
g VLAN ID.
T
o configure a VLAN Member:
1.
Select
Delete VLAN.
2.
Give the correspondin
g VLAN ID.
