Note
The encoder ports are connected by a multiplexer to the same circuits as the integrated encoders. This
means that if external encoder 1 is used, integrated encoder 1 can not be used. External encoder 2
can be used with ABI or HALL only when the integrated encoder 2 is used.

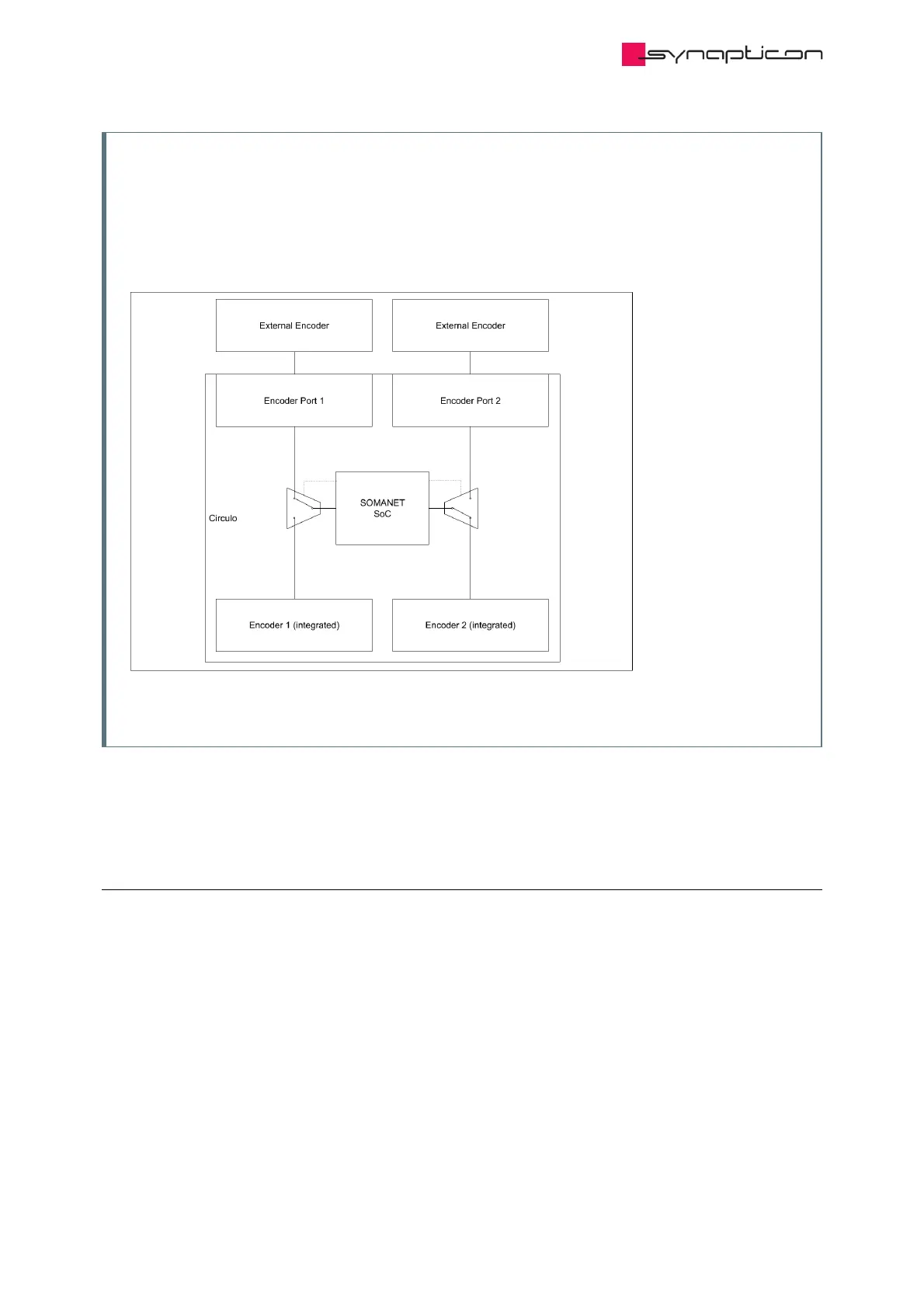

Please refer to the following image for details:
1.2.6.2.1.2.3.1 External Encoder 1
Circulo 7
Synapticon Documentation
© 2021 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 4.11.0 | Built 2021-07-23 155/887
