2.4.2 Auto-Tuning
The manual describes how to tune the cascaded position controller using the Auto-tuning feature.
Before conducting any of the tuning activities please check if motor is functional in torque mode and sensor
data is transmitted normally. For high-quality motor control tasks, a precise and reliable sensor should be
used. Quality of the motor position control may be insufficient with low resolution sensors, especially if a Hall
sensor is used.
The current version of the auto-tuning feature allows user to tune a BLDC motor drive. A load can be attached
to the motor. However, if the motor position has very strict limits this feature is not recommended, because
the motor may make a few full turns.
2.4.2.1 Concept of Auto-Tuning
Auto-tuning is performed in three steps:
System identification Identifying the physical properties of the object to build a mathematical model of
the target system.
Position auto-tuning Using the model to calculate controller gains that result in a specified position
control-loop performance.
Velocity auto-tuning Tuning the velocity loop with Velocity Auto-Tuning for Cyclic Synchronous Velocity
mode (CSV).
2.4.2.2 Goal of Position Auto-tuning

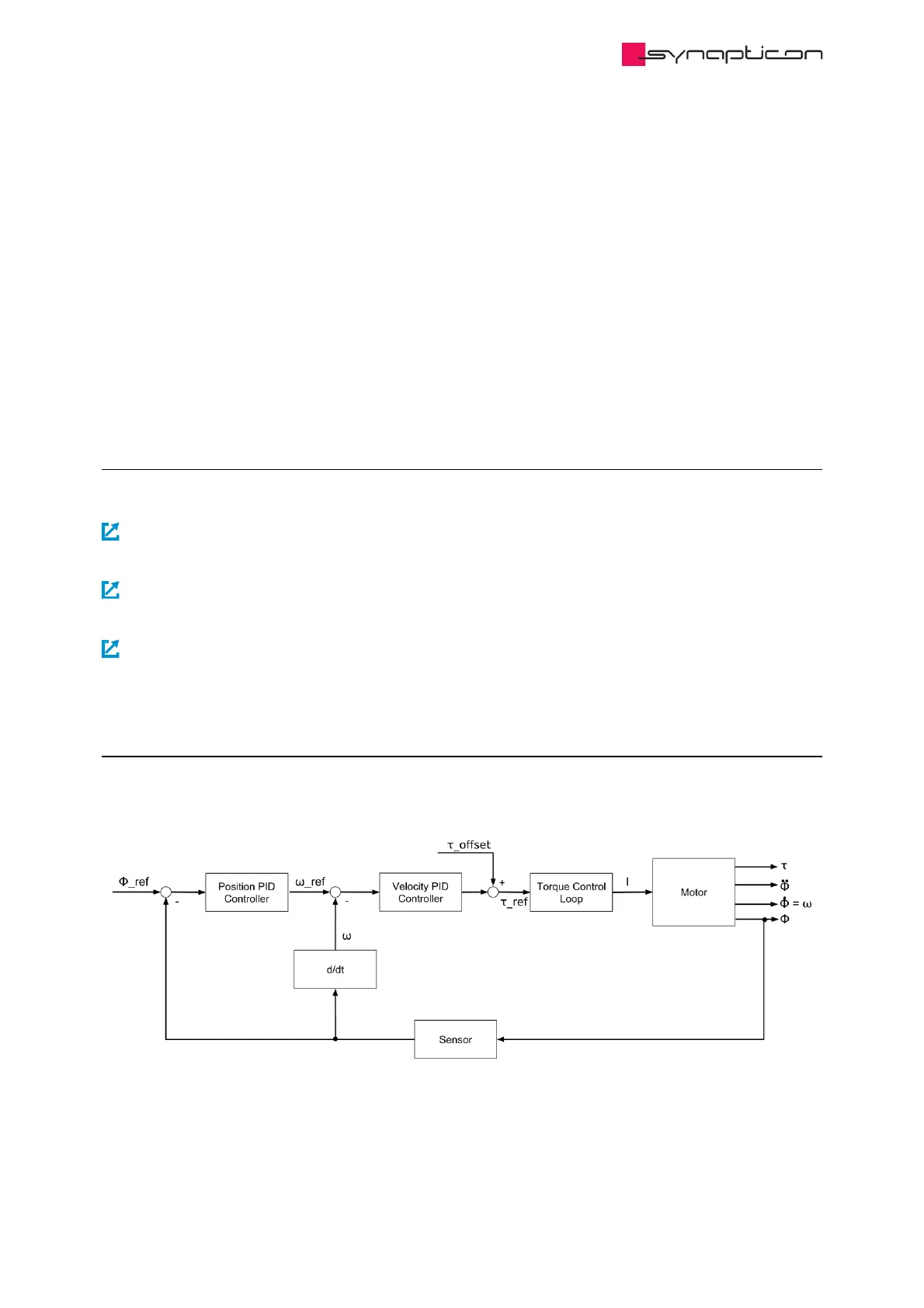

The Position Auto-tuning process calculates the gains for the cascaded controller automatically.
The core of the cascaded controller is linear. However, there are multiple nonlinear additions: saturation,
feedforward terms and integrator clamping.
