SYNAPTICON SOMANET Node 400 User Manual

1.3.2.4.1.3.4.3 Attaching a voltage divider
A voltage divider is needed when the Analog In needs to be calibrated. This is required for adjusting the
measuring range when using a temperature sensor.

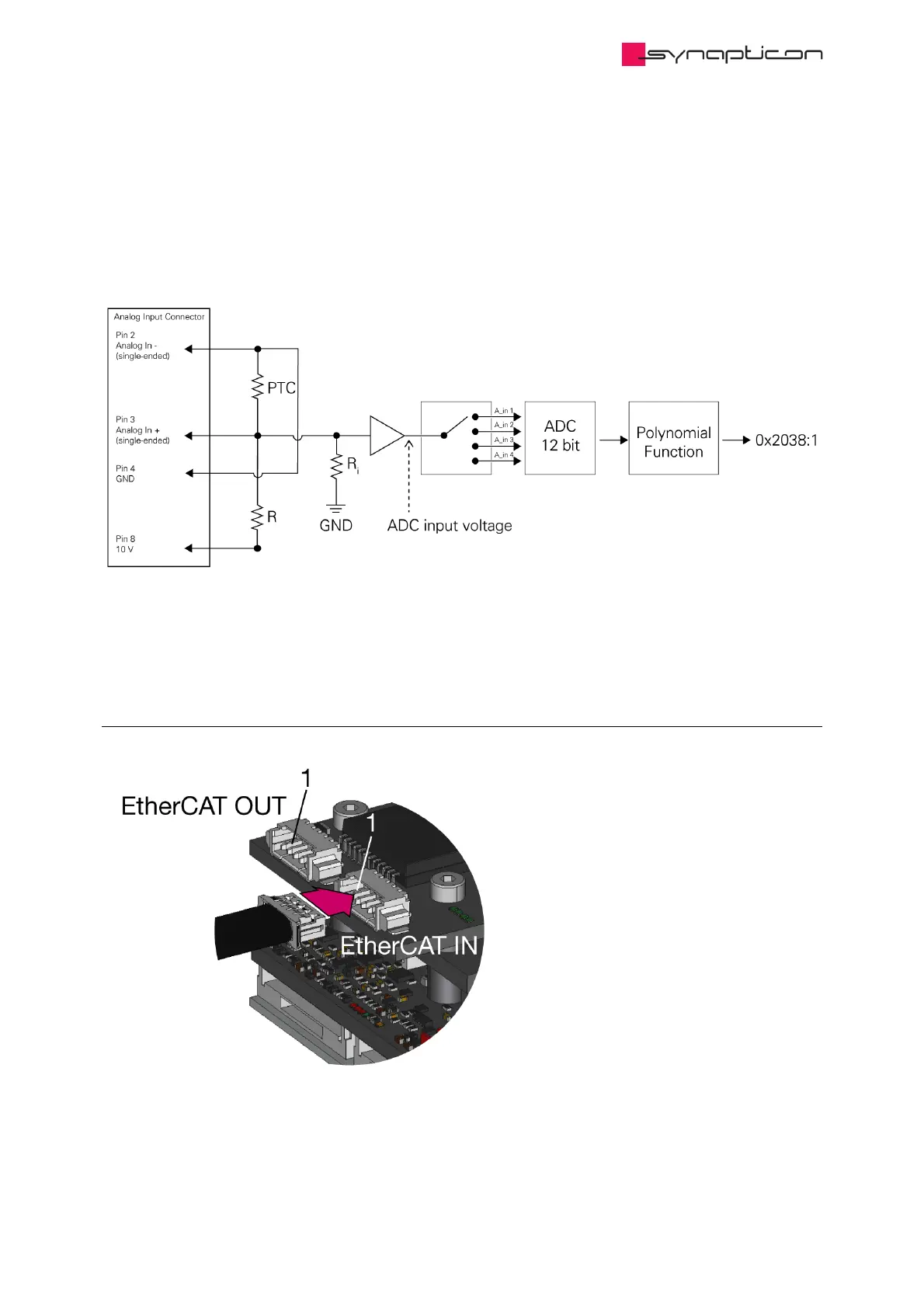

The image below depicts how to connect an RTD sensor resistance using the single-ended analog input.
The internal resistance R of the single-ended analog input is 20.4 kΩ and it is connected in parallel to the RTD
sensor.
i
1.3.2.4.1.3.5 EtherCAT port
Synapticon Documentation
© 2021 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 4.11.0 | Built 2021-07-23 246/887
