SYSMEX CyFlow Ploidy Analyser - Components of the Device; Control Elements; Computer Interface Ports; Sheath Fluid and Waste Bottle

4 Overview
CyFlow™ Ploidy Analyser | Operating Manual | October 2021
19

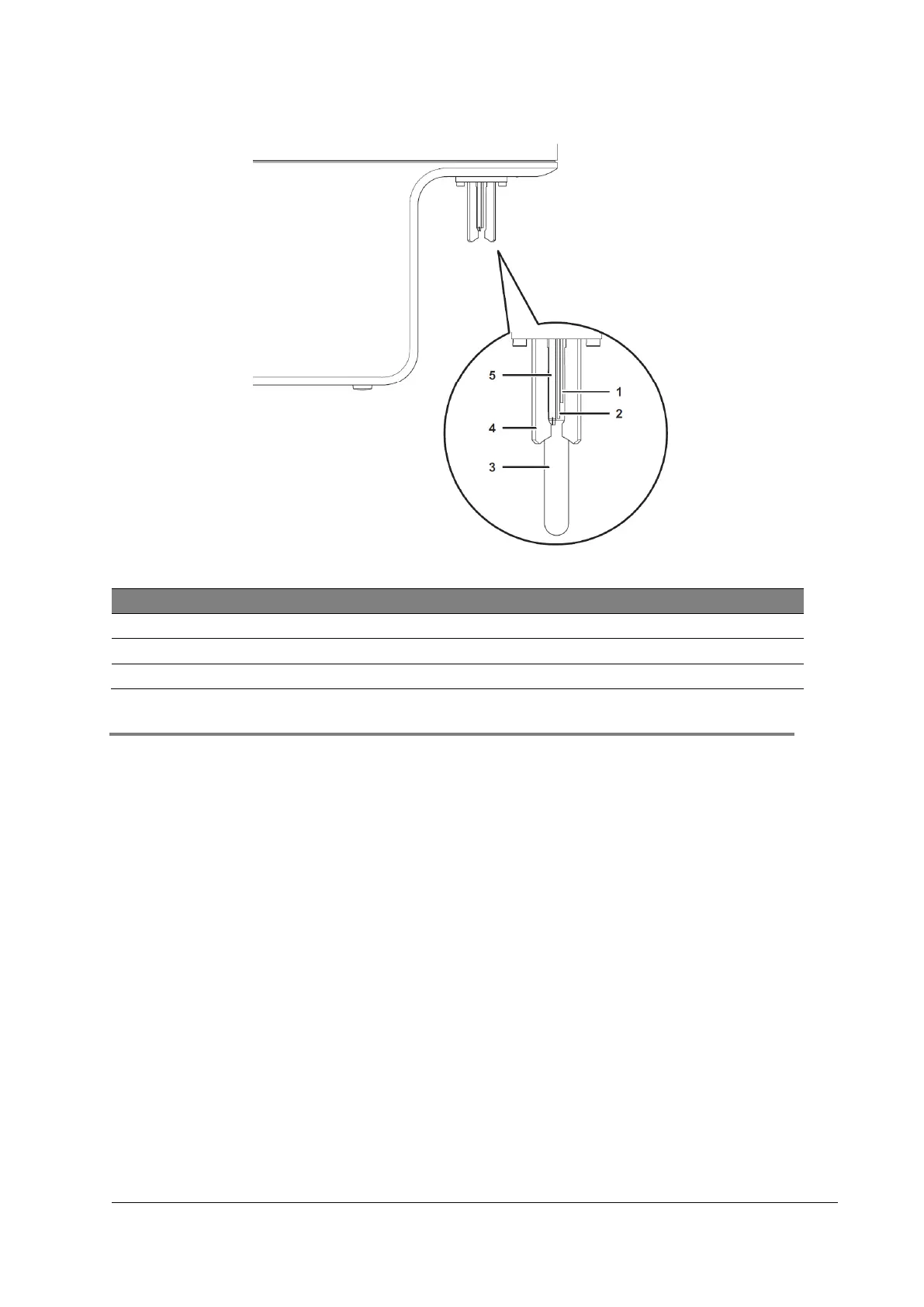

Figure 4: Sample port at the right side of the device
#
Item
#
Item
1
Start electrode
4
Sample holder
2
Stop electrode
5
Sample port injection needle
3
Sample tube
4.2 Components of the device
The device contains the flow cuvette, the optics, the fluidics, the computer unit and data
acquisition electronics. No work steps inside the device are necessary.
The main components of the device are:
4.2.1 Control elements
The device is operated via keyboard and mouse. The On switch is located on the top
lefthand corner, when the display of the device is lifted up. The power switch is located on
the rear side of the device.
4.2.2 Computer interface ports
The computer interface ports connect the device with additional optional electronic
devices. They are located on the left side of the device.
4.2.3 Sheath Fluid and Waste bottle
The Sheath Fluid transports the sample flow during the measurement. The connecting
ports for the tubing of the Sheath Fluid bottle and Waste bottle are located on the rear
side of the device. The Sheath Fluid bottle and Waste bottle are located next to the
device.
