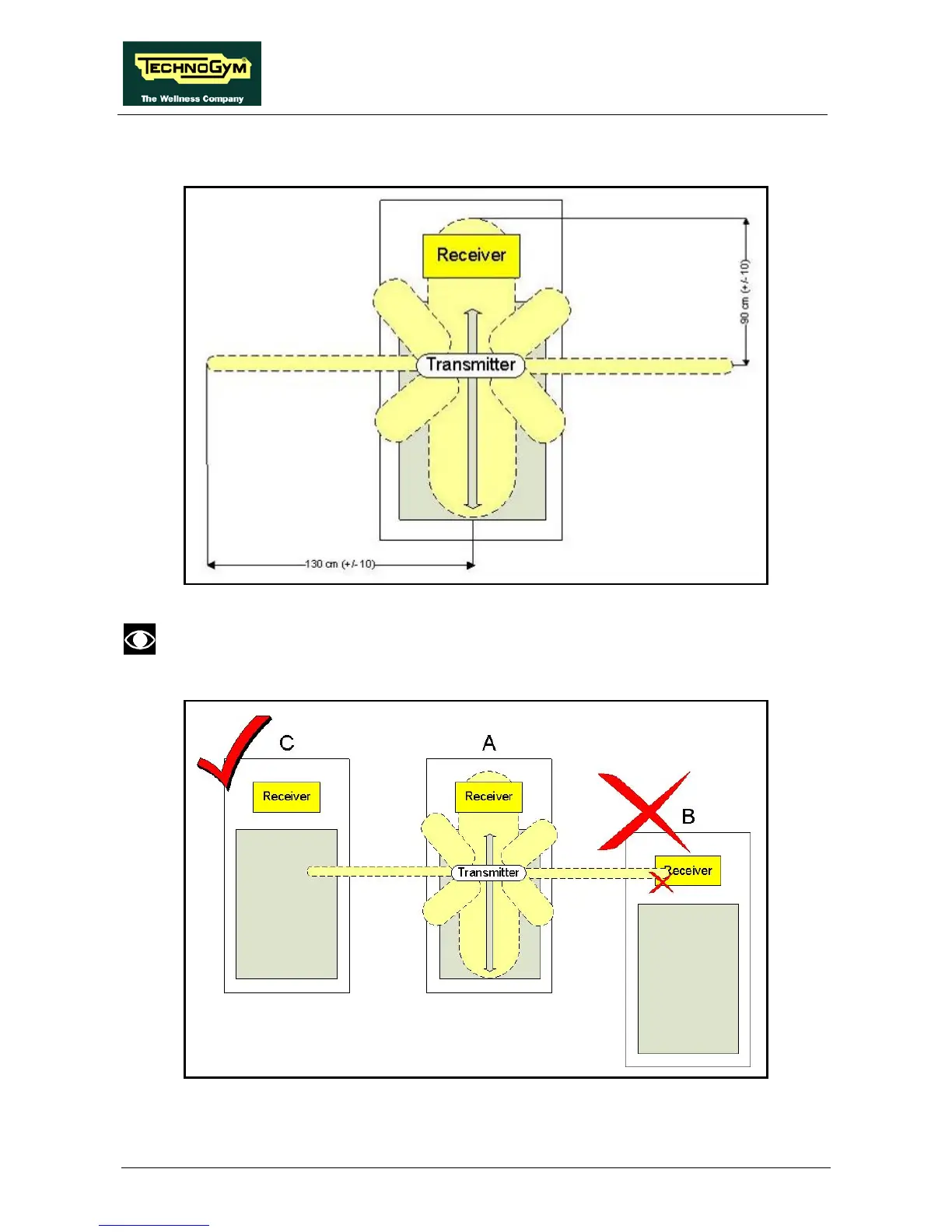

(2) Comply with the distance and positioning of the pieces of equipment with each other, keeping
to the following diagram:
Figure 6-1
The lateral range (130cm) is greater than the frontal range (90cm) even though it covers
a tighter area. Position the pieces of equipment, therefore, as shown in the following
diagram:
Figure 6-2
