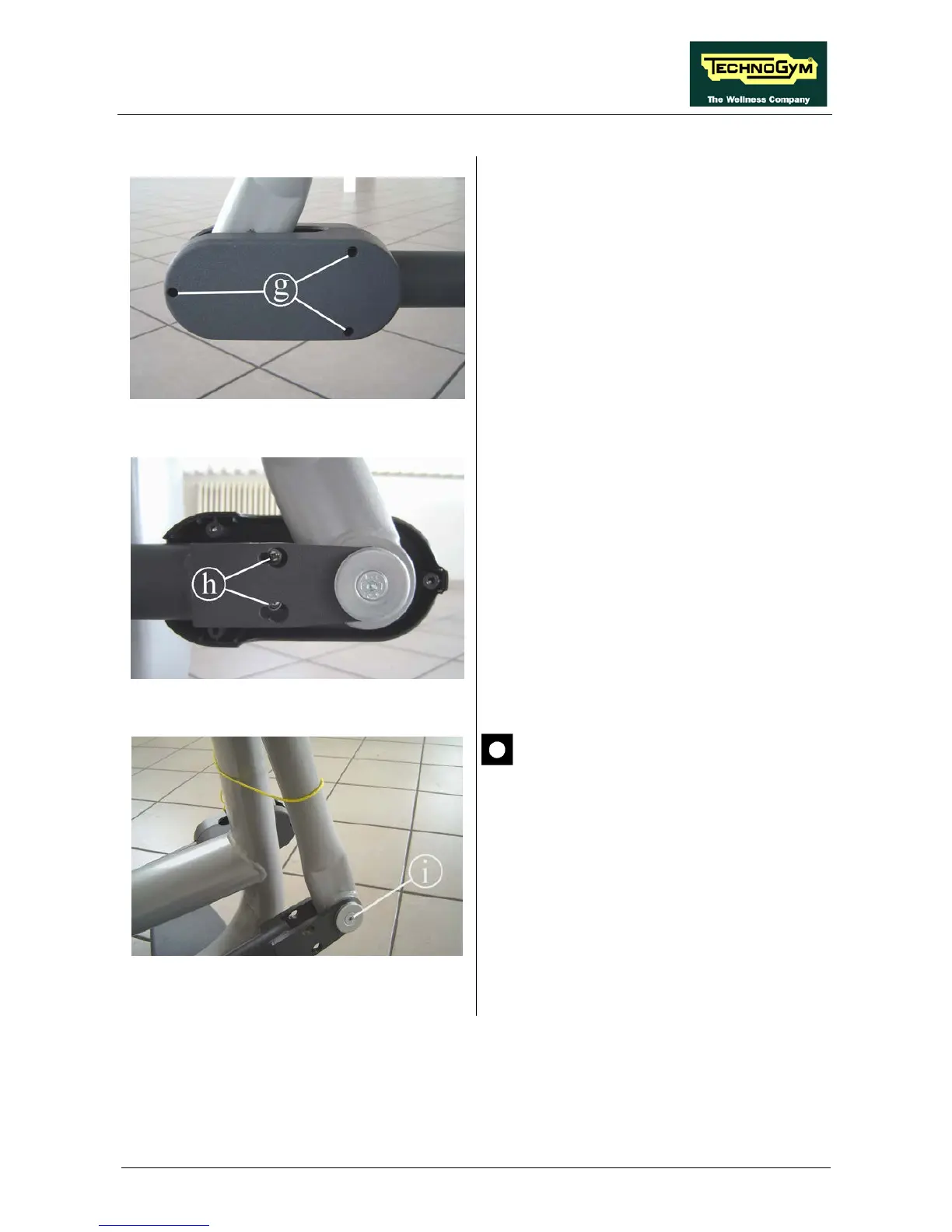

Figure 7.7-4
7. Back off the screws g
using a medium
Phillips screwdriver and remove the rear
casing.
Figure 7.7-5
8. Back off the screws h
using a medium
Phillips screwdriver and remove the front
casing.
Figure 7.7-6
Before to disconnect the lower lever
from the upper one, we suggest to fix the
upper levers on the frame as shown in
the picture to side.
9. Back off the screw i using a 5-
mm hex
wrench, lock
ing down the screw on the
opposite side using another 5-
mm hex
wrench.
10.
Remove the pin and the spacers which keep
connected the two parts of the lever.
Continued on following page →
