Technogym CROSS FORMA - Page 72

CROSS FORMA: Service & Maintenance Manual - rev. 2.1
Page 7.14

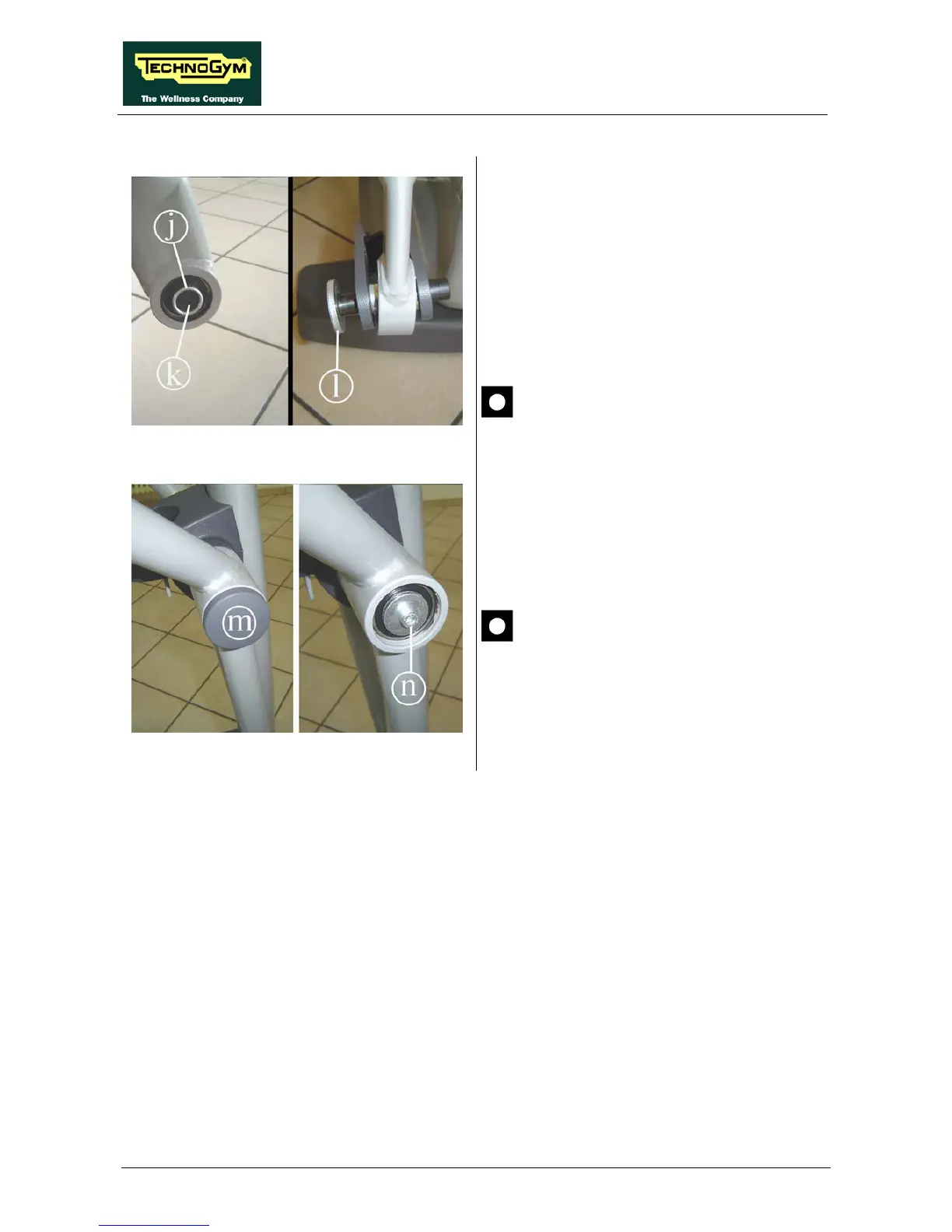

Figure 7.7-7
To reassemble the lever:
11. Using the pin k
included in the machine tool
kit, insert the pin on the upper lever and fit
the two spacers j on top of it.
12.
Prepare the two parts of the lever in the
position for fixing, and insert the definitive
pin l until it pushes out the pin k.
13. Lock down the 2 screws i again.
During reassembly, lock down the screw
“i” using a torque wrench set for 31 Nm.
Figure 7.7-8
To disassemble the upper lever:
14. Remove the cap m using a screwdriver.
15. Back off the screw n using a 6-
mm hex
wrench.
During reassembly, lock down the screw
“n” using a torque wrench set for 22
Nm.
To reassemble the levers, carry out the above
steps in reverse order.
