Tektronix 1730 Series - Figure 5-1: Remote Connector for RGB

To Next Page

To Previous Page

1730–Series Checks and Adjustments

5–5

19. Precision 50W Coaxial Cable

For example: Tektronix Part No. 012–0482–00 (used with the SG503).

20. 50W-to-75W Minimum Loss Attenuator

For example: Tektronix Part No. 011–0057–00.

21. Parade Display Test Connector

A 15-pin sub-miniature D-type connector (for example: Tektronix Part

No. 131–0459–00), modified to enable and test the RGB Parade input.

See Fig. 5-1.

12345678

9101112131415

RGB staircase

signal input

RGB enable

ground

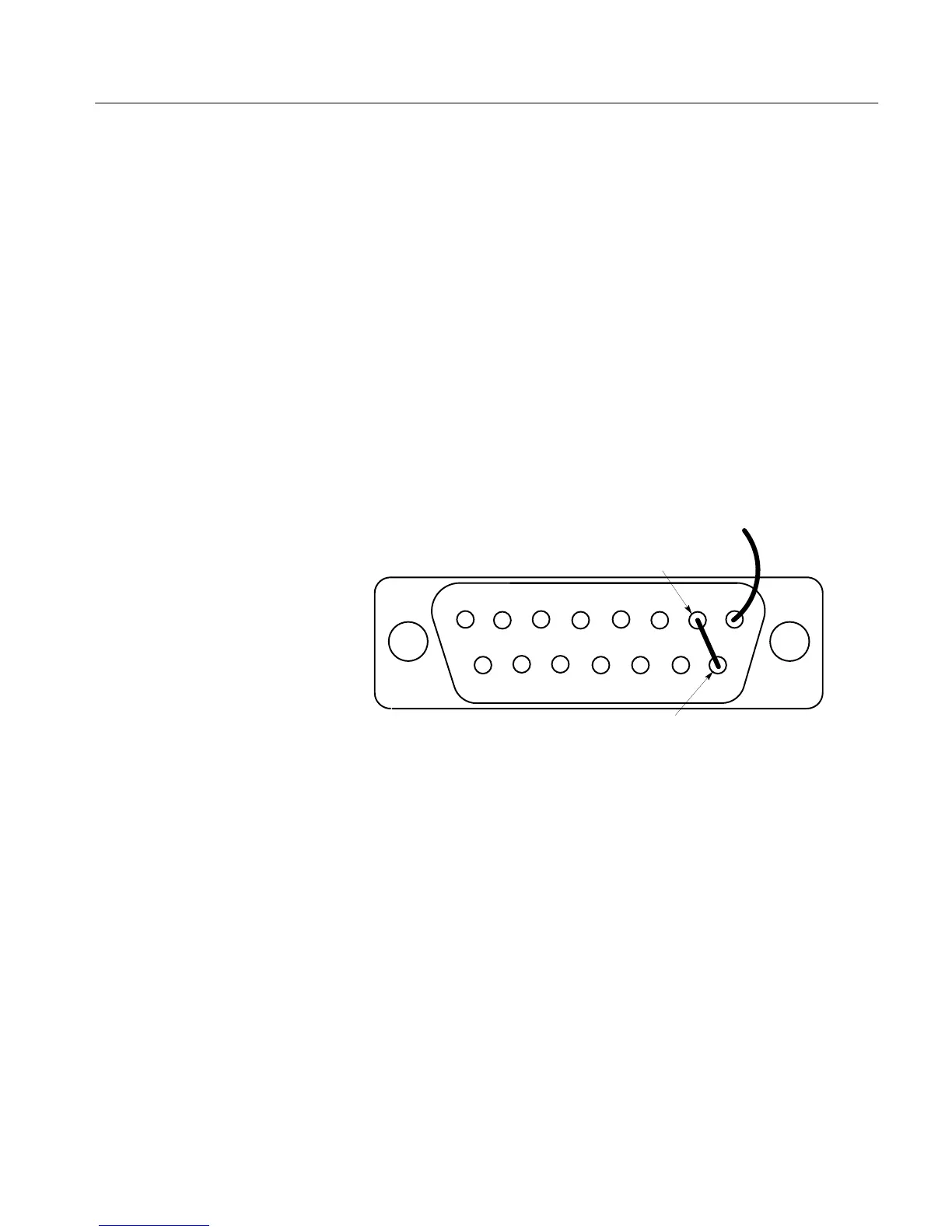

Figure 5-1: Remote connector for RGB.

22. 90/100 Hz Test Connector

A 15-pin sub-miniature D-type connector (for example: Tektronix Part

No. 131–0459–00), modified to enable and test the 90/100 Hz triggering.
