Tektronix 1730 Series User Manual

1730–Series Checks and Adjustments
5–32
b. Loop-through connect the multiburst output from the 1410-Series
generator to the CH–A INPUT of the 1730-Series and the Digital
Counter. See Fig. 5-9.
1730-SERIES
(REAR VIEW)
1410-SERIES
(REAR VIEW)
DIGITAL
COUNTER
MULTIBURST
SIGNAL

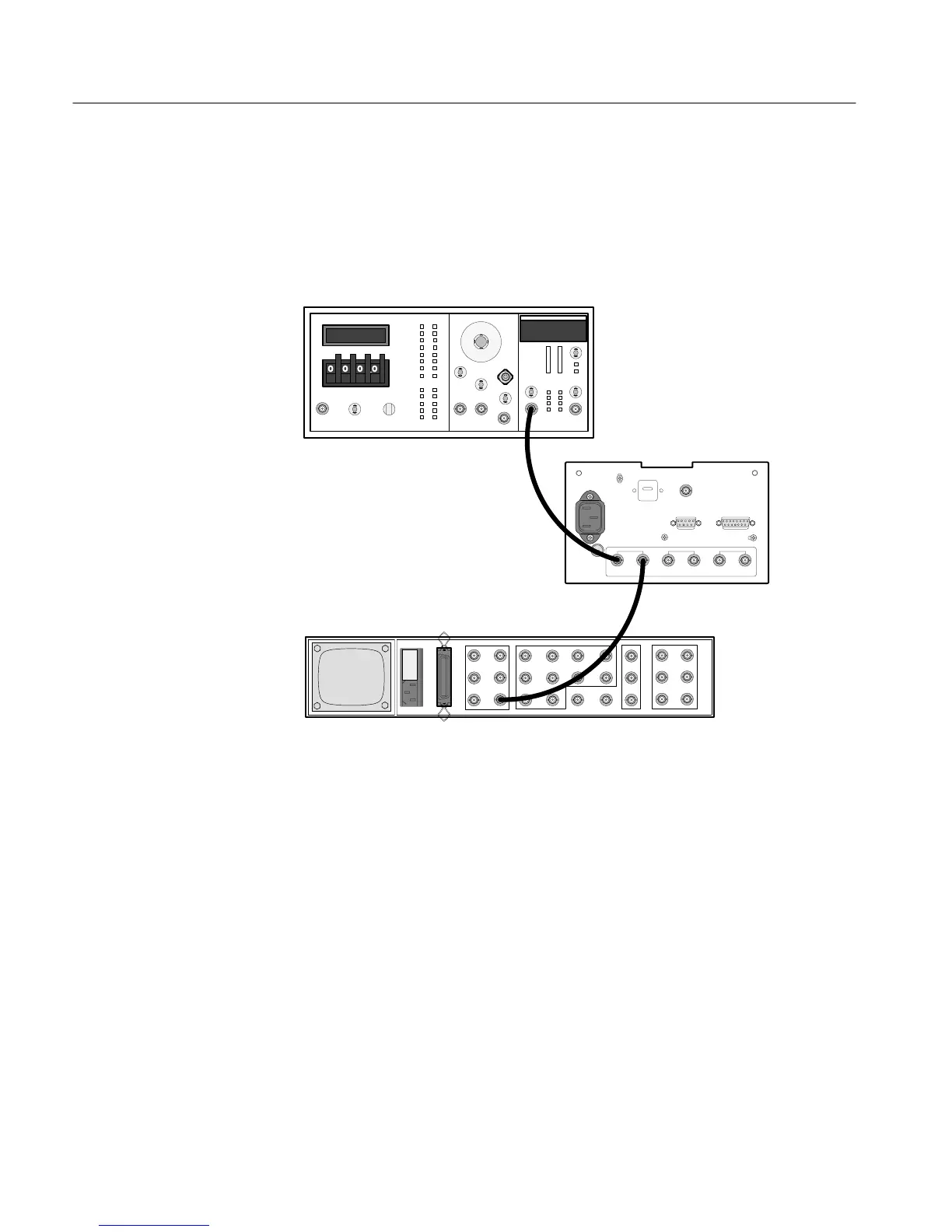

Figure 5-9: Equipment setup to adjust 0.2 ms timing.
c. Set the multiburst generator to Low, Continuous, and Manual. Turn
Markers off.
d. Adjust the multiburst Frequency for a 5 MHz sine wave as measured on
the Digital Counter.
e. Select the 1730-Series VAR VERTICAL GAIN and adjust the VAR
GAIN control for a display amplitude of approximately 6 divisions.
f. Change the multiburst generator to Composite.
g. Select 1LINE SWEEP and MAG.
