Tektronix 1730 Series User Manual

1730–Series Installation
3–12
If only one section of the rack adapter is used, a 1700F06 Blank Panel can be
inserted in the unused section. See Figure 3-9. The rack adapter and panel are
available through your local Tektronix field office or representative.
In addition to being able to fill the unused side of the side-by-side rack mount
cabinet (1700F05) with a blank front panel, an accessory drawer (1700F07) can
be installed in the blank side of the cabinet. See Figure 3-10.
1700F07
1700F05

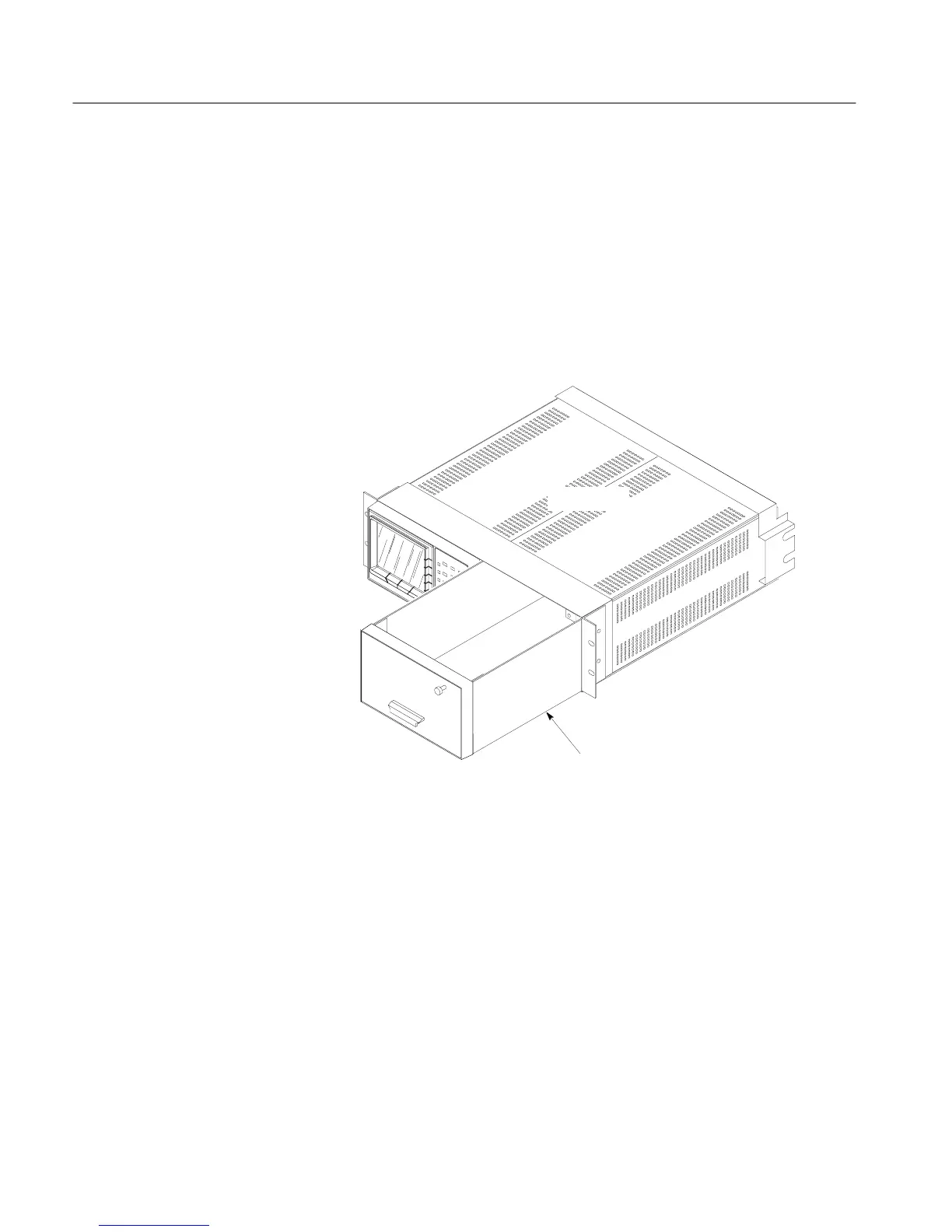

Figure 3-10: A 1700F05 side-by-side rack mounting cabinet with an
instrument and a 1700F07 utility drawer.
For applications such as consoles, shown in Figure 3-11, the instrument can be
mounted with front molding flush or protruding from the console. In both cases,
allow approximately 3 inches of rear clearance for bnc and power-cord connec-
tions.
To mount the 1730-Series safely, attach it to a shelf strong enough to hold its
weight. Install the mounting screws through the four 0.156-inch diameter holes
in the bottom of the 1700F00 cabinet. See Figure 3-11.
Custom Installation
