1730–Series Installation

3–9

The portable cabinet, 1700F02, is shown in Figure 3-6. The 1700F02 has a

handle, four feet, a flip-up stand, and is compatible with the TEKTRONIX BP1

battery pack that can be used for a dc power source. The hole sizes and spacing

are different from those of the 1700F00.

5.0001.625

REAR

BOTTOM SIDE

9.435

6.875

8.250

0.688

5.105

3.310

16.180

0.141 DIA.

(4)

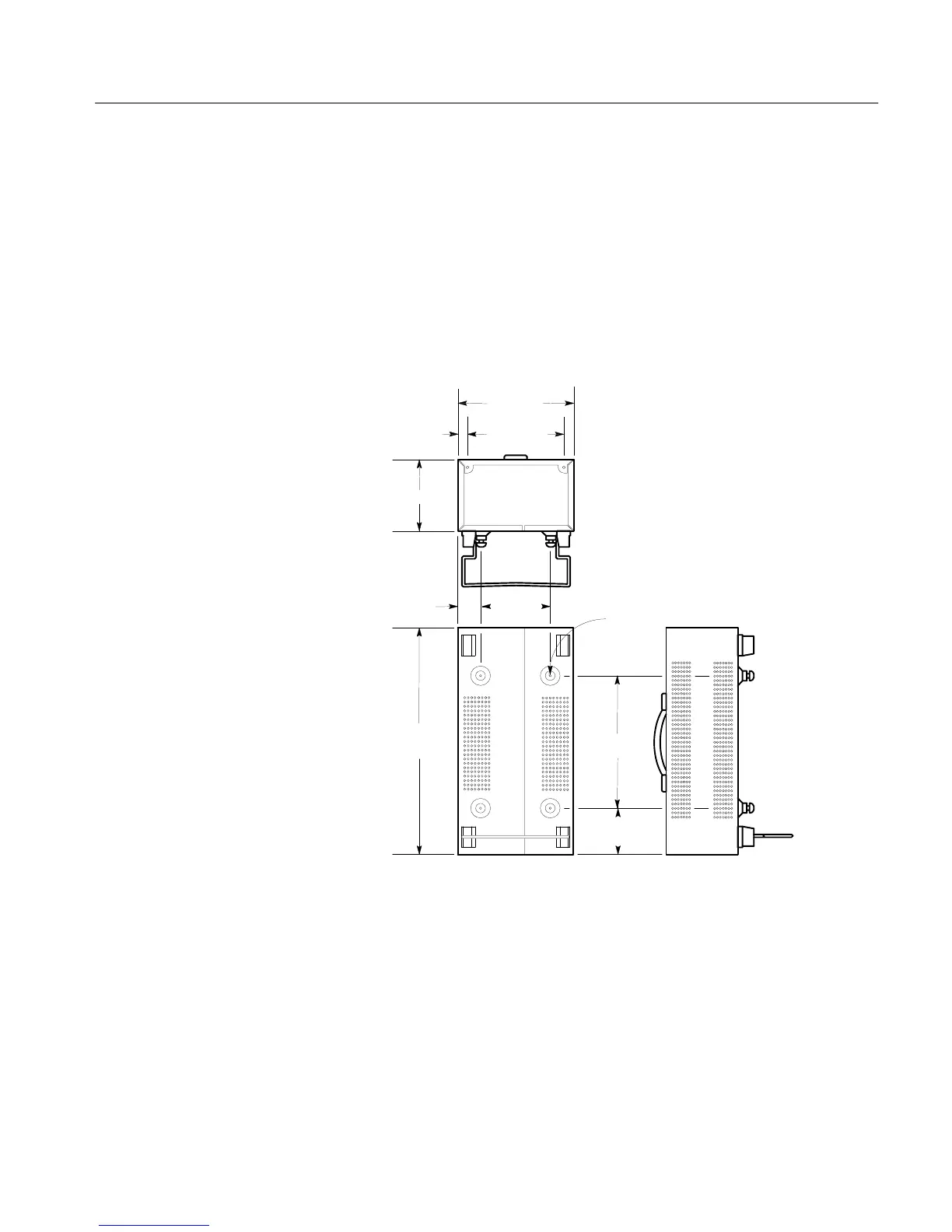

Figure 3-6: 1700F02 portable cabinet.

All of the 1700-Series metal cabinets, which are available from Tektronix as

Optional Accessories, provide the proper electrical environment for the

instrument. They supply adequate shielding, minimize handling damage, and

reduce dust accumulation within the instrument.
