1730–Series Maintenance
6–23
6. Remove the seven screws that are holding the Power Supply board
down. See Fig. 6-7.
7. Remove the board by sliding it forward and lifting it up.
8. To replace the board, reverse this procedure.
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
FRONT
J1
J3
J2 J4
Ground strap
Remove these screws to remove this board

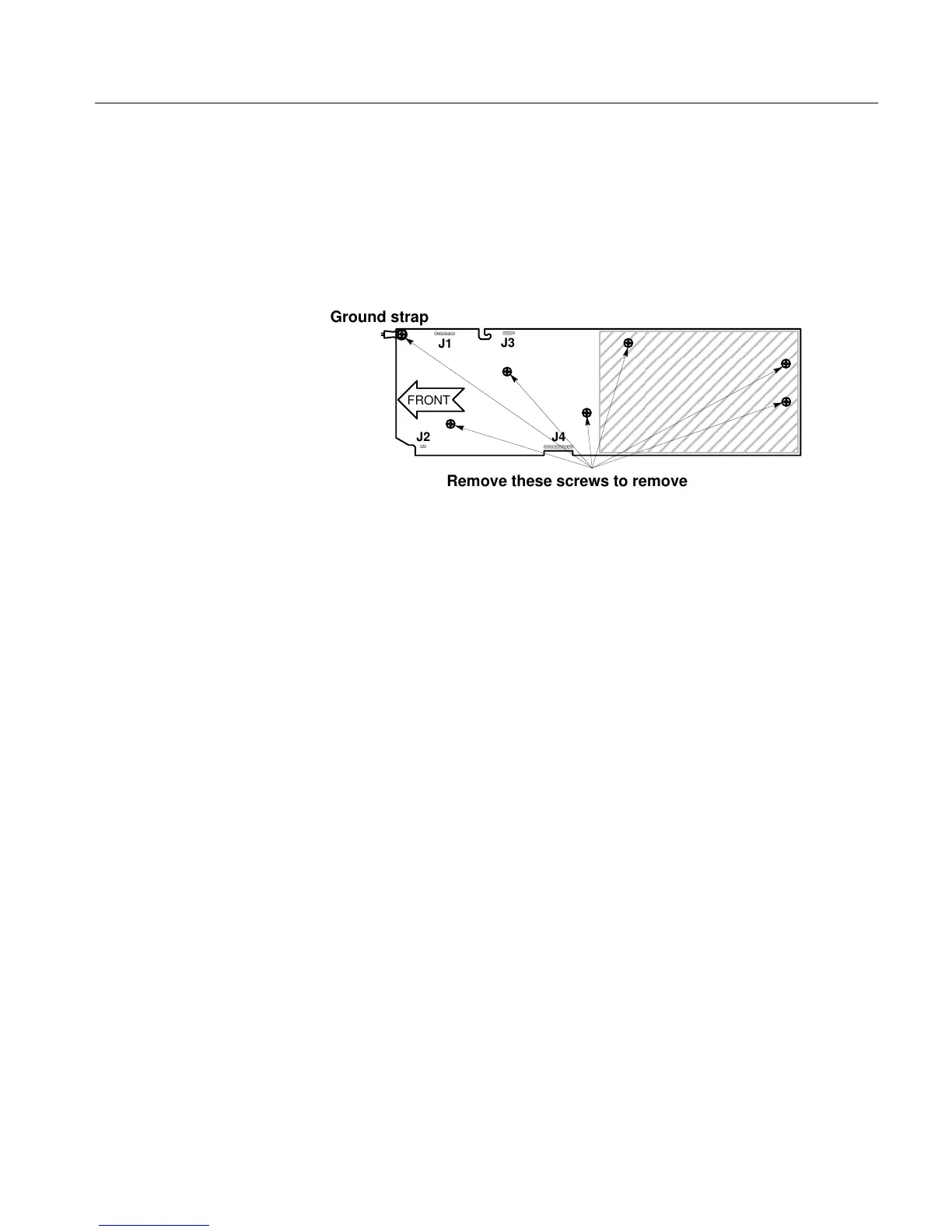

Figure 6-7: Screws holding the Power Supply circuit board (A1) in place.
Repackaging
If the instrument is to be shipped to a Tektronix Service Center for service or
repair, attach a tag to the instrument showing:
1. Owner (with complete address) and the name of the person at your firm
that can be contacted.
2. Instrument serial number and a description of the service required.
Repackage the instrument in the original manner to provide adequate protection
(see Fig. 6-8). If the original packaging is not available or is unfit for use,
repackage the instrument as follows:
1. Obtain a corrugated cardboard carton whose inside dimensions are at
least six inches greater than the dimensions of the instrument to allow room
for cushioning. The shipping carton should have a test strength of at least
275 pounds.
2. Surround the instrument with polyethylene sheeting to protect the finish.
3. Cushion the instrument on all sides by tightly packing dunnage or
urethane foam between the carton and the instrument. Allow three inches on
all sides for cushioning.
4. Seal the carton with shipping tape or an industrial stapler.
Identification Tag
Repackaging for Shipment
