1730–Series Operating Instructions
2–18
Hold the FILTER button in until both the FLAT and LPASS front–panel
indicators are lit. The display now consists of two lines, the first of which has
the chrominance removed and the second is unfiltered. See Figure 2-10.
Push the FILTER switch and return to FLAT.
0V
1.2
1.0
1.1
0.9
0.8
0.7
0.6
0.5
0.4
0.2
0.1
0
PAL
–0.3
+0.7
Tek 2% & 4% K FACTOR
F1:131

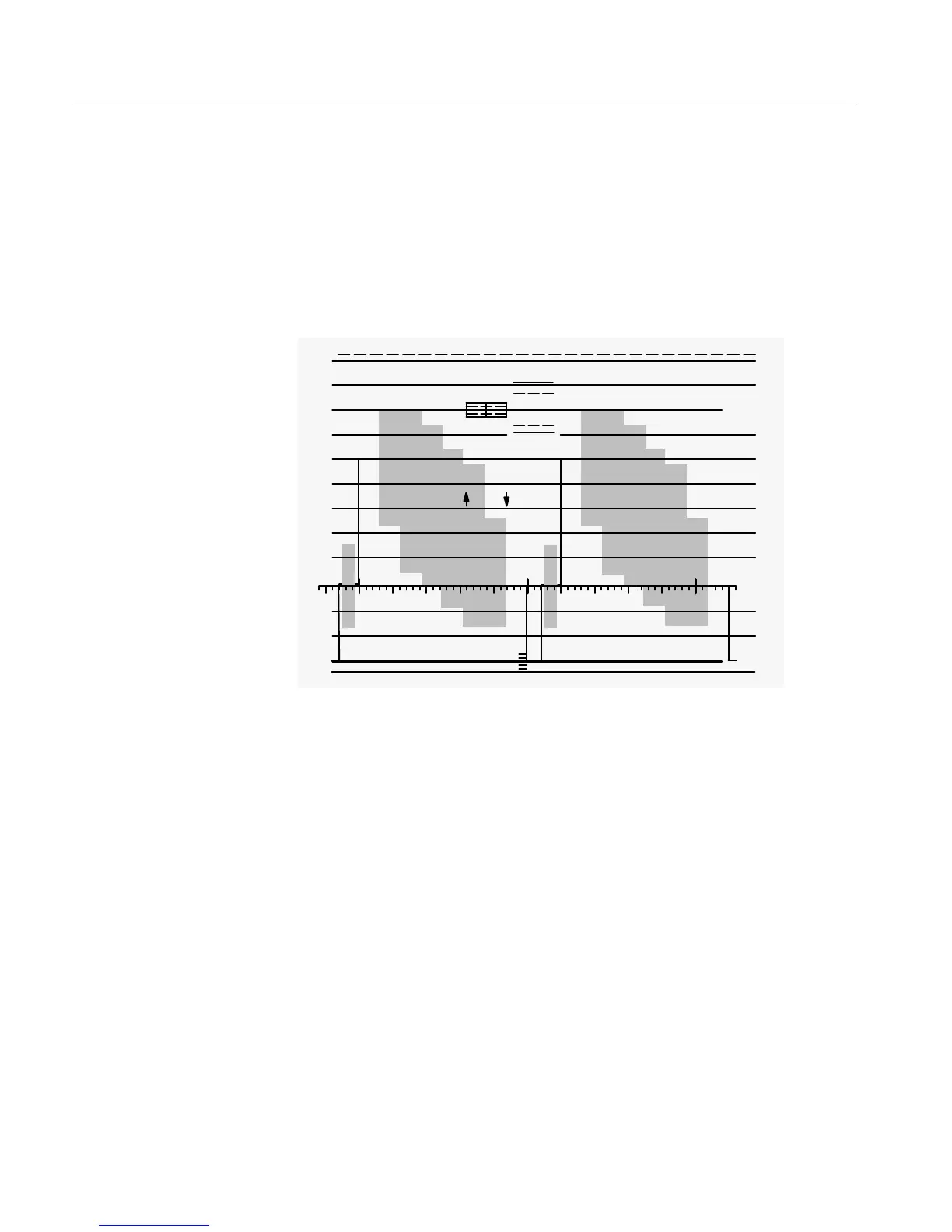

Figure 2-11: Two–line display with LINE SELECT on. Note readout in
upper left corner.
11. Sweep Speeds and Line Select
Turn on LINE SELECT and push and hold both the UP and DOWN buttons
until the readout indicates that line 19 of field 1 is being displayed. Use the
LINE SELECT UP or DOWN button to display line 131 (see Figure 2-11).
Holding in the UP or DOWN button causes the counter to move faster.
