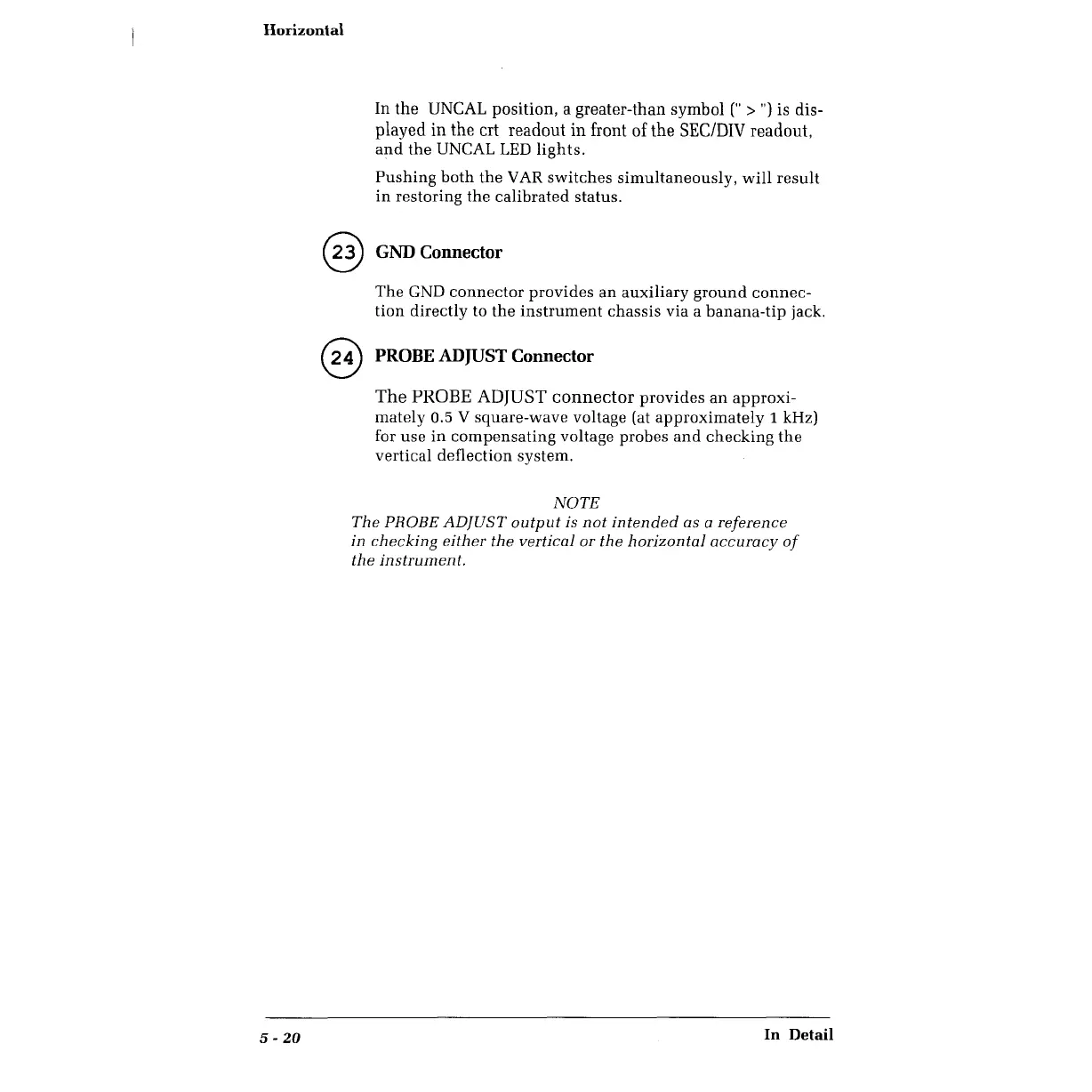

Horizontal
5 -
20
In
the
UNCAL
position,
a greater-than symbol
("
>
")
is dis-
played
in
the
crt
readout
in
front
of
the
SEC/DIV
readout,
and
the
UNCALLED
lights.
Pushing
both
the
VAR
switches
simultaneously,
will
result
in
restoring
the
calibrated
status.
@ GND Connector
The
GND
connector
provides
an
auxiliary
ground
connec-
tion
directly to
the
instrument
chassis
via a
banana-tip
jack.
@ PROBE ADJUST Connector
The
PROBE
ADJUST
connector
provides
an
approxi-
mately
0.5
V square-wave voltage (at
approximately
1 kHz)
for
use
in
compensating
voltage probes
and
checking
the
vertical deflection system.
NOTE
The
PROBE
ADJUST
output
is
not
intended
as a
reference
in
checking
either
the
vertical or
the
horizontal
accuracy
of
the
instrument.
In
Detail
