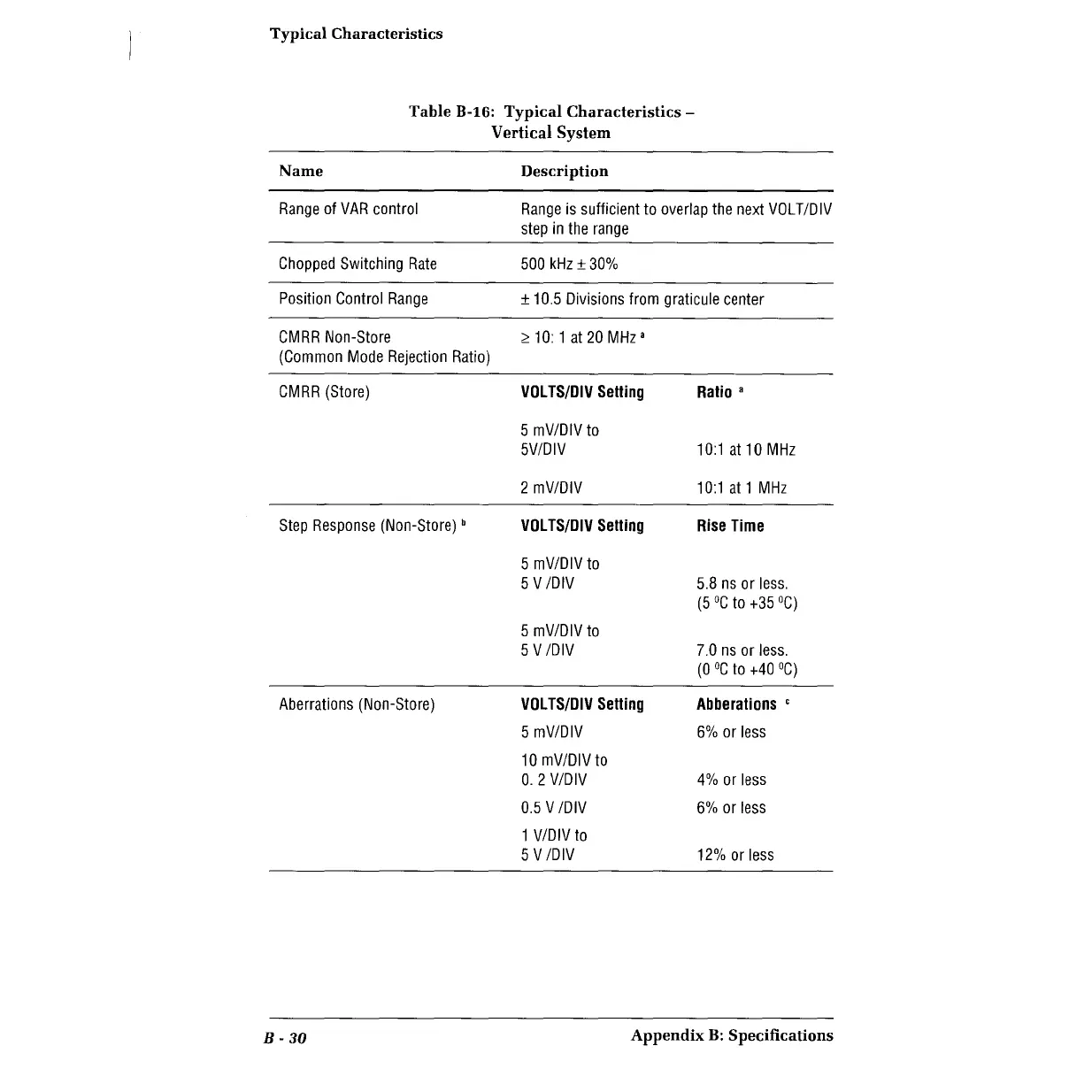

Typical Characteristics
Table B-16: Typical Characteristics -
Vertical System
Name Description
Range of VAR control Range is sufficient to overlap the next VOLT/DIV
step in the range
Chopped Switching Rate 500 kHz± 30%
Position Control Range ± 10.5 Divisions from graticule center
CMRR Non-Store ;::: 10: 1 at 20 MHz•
(Common Mode Rejection Ratio)
CMRR (Store) VOL TS/DIV Setting Ratio •
5 mV/DIV to
5V/DIV 10:1 at 10 MHz
2 mV/DIV 10:1at1MHz
Step Response (Non-Store) b
VOL TS/DIV Setting
Rise Time
5 mV/DIV to
5 V /DIV
5.8 ns or less.
(5 °C to +35 °C)
5 mV/DIV to
5 V /DIV
7.0 ns or less.
(0 °c to +40 °C)
Aberrations (Non-Store) VOL TS/DIV Setting
Abberations c
5 mV/DIV 6% or less
10 mV/DIV to
0. 2 V/DIV 4% or less
0.5 V /DIV
6% or less
1 V/DIV to
5 V /DIV 12% or less
B-30
