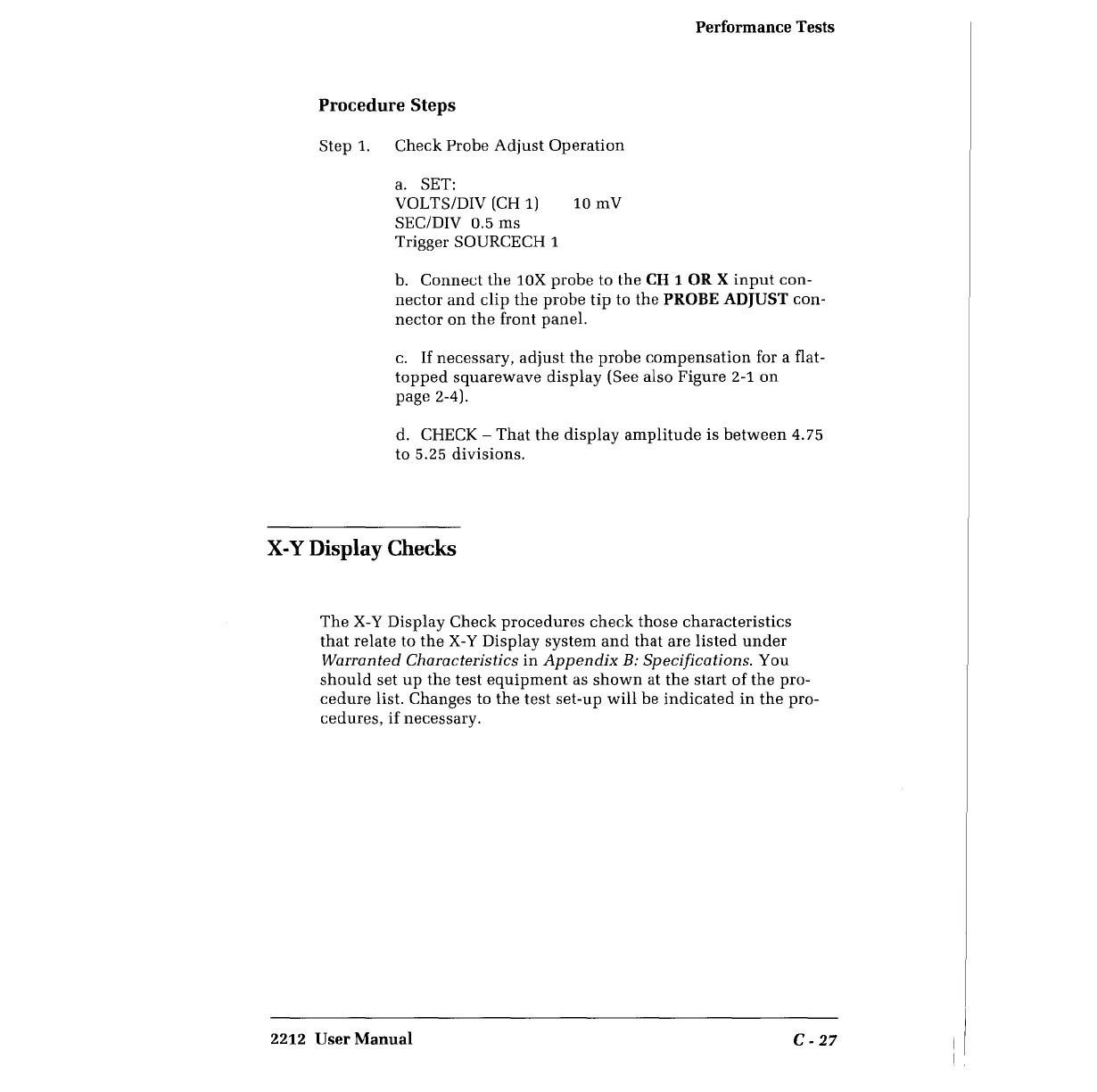

Procedure Steps
Step
1.
Check
Probe
Adjust
Operation
a. SET:
VOL TS/DIV (CH 1)
SEC/DIV
0.5
ms
Trigger SOURCECH 1
10mV
Performance Tests
b.
Connect
the
lOX
probe
to
the
CH
1 OR X
input
con-
nector
and
clip
the
probe
tip
to
the
PROBE ADJUST con-
nector
on
the
front
panel.
c. If
necessary,
adjust
the
probe
compensation
for a flat-
topped
squarewave
display
(See also
Figure
2-1
on
page
2-4).
d. CHECK
-That
the
display
amplitude
is
between
4.75
to
5.25
divisions.
X-Y Display Checks
The
X-Y
Display
Check
procedures
check
those
characteristics
that
relate
to
the
X-Y
Display
system
and
that
are
listed
under
Warranted Characteristics
in
Appendix
B:
Specifications.
You
should
set
up
the
test
equipment
as
shown
at
the
start
of
the
pro-
cedure
list. Changes to
the
test
set-up
will
be
indicated
in
the
pro-
cedures,
if
necessary.
2212 User Manual
C-
27
