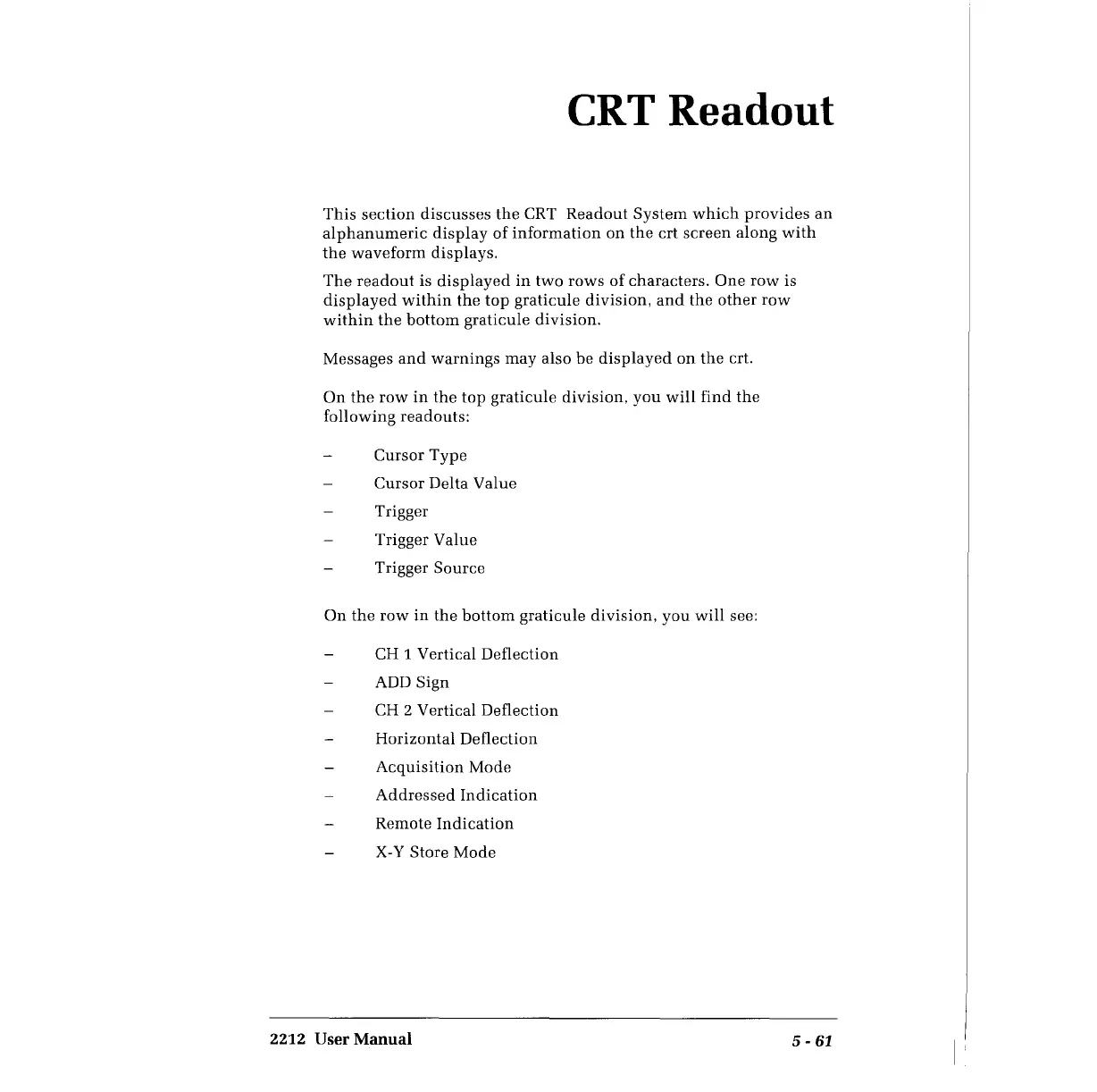

CRT
Readout
This
section
discusses
the
CRT
Readout
System
which
provides
an
alphanumeric
display
of
information
on
the
crt
screen
along
with
the
waveform
displays.
The
readout
is
displayed
in
two
rows
of
characters.
One
row
is
displayed
within
the
top
graticule
division,
and
the
other
row
within
the
bottom
graticule
division.
Messages
and
warnings
may
also
be
displayed
on
the
crt.
On
the
row
in
the
top
graticule
division,
you
will
find
the
following
readouts:
Cursor
Type
Cursor
Delta
Value
Trigger
Trigger
Value
Trigger
Source
On
the
row
in
the
bottom
graticule
division,
you
will
see:
CH
1
Vertical
Deflection
ADD
Sign
CH
2
Vertical
Deflection
Horizontal
Deflection
Acquisition
Mode
Addressed
Indication
Remote
Indication
X-Y
Store
Mode
2212
User
Manual
5
-
61
146
148
