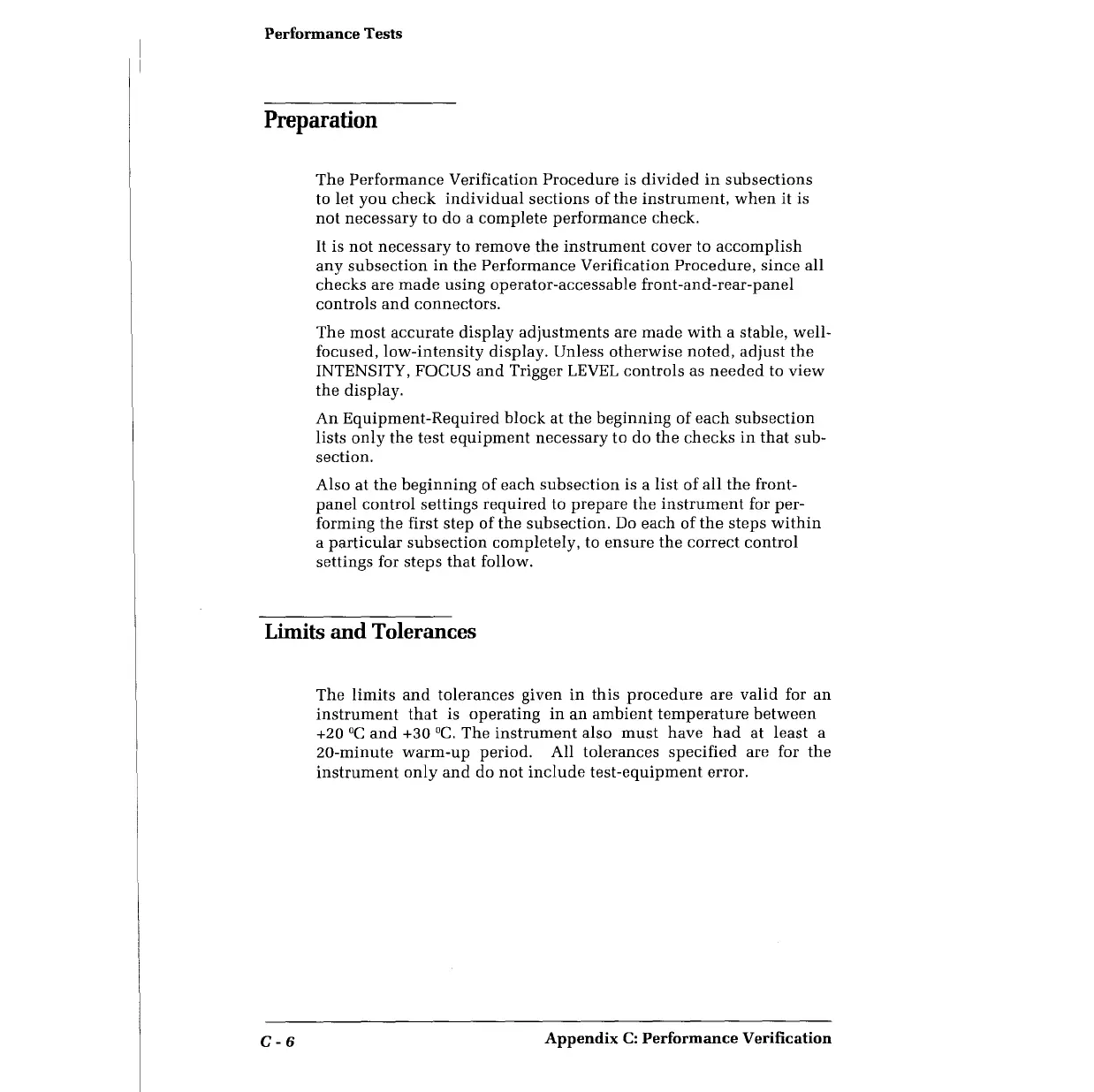

Performance
Tests
Preparation
The
Performance
Verification
Procedure
is
divided
in
subsections
to
let
you
check
individual
sections
of
the
instrument,
when
it
is
not
necessary
to
do
a
complete
performance
check.
It
is
not
necessary
to
remove
the
instrument
cover
to
accomplish
any
subsection
in
the
Performance
Verification
Procedure,
since
all
checks
are
made
using
operator-accessable
front-and-rear-panel
controls
and
connectors.
The
most
accurate
display
adjustments
are
made
with
a
stable,
well-
focused,
low-intensity
display.
Unless
otherwise
noted,
adjust
the
INTENSITY,
FOCUS
and
Trigger
LEVEL
controls
as
needed
to
view
the
display.
An
Equipment-Required
block
at
the
beginning
of
each
subsection
lists
only
the
test
equipment
necessary
to
do
the
checks
in
that
sub-
section.
Also
at
the
beginning
of
each
subsection
is
a
list
of
all
the
front-
panel
control
settings
required
to
prepare
the
instrument
for
per-
forming
the
first
step
of
the
subsection.
Do
each
of
the
steps
within
a
particular
subsection
completely,
to
ensure
the
correct
control
settings
for
steps
that
follow.
Limits
and
Tolerances
C-6
The
limits
and
tolerances
given
in
this
procedure
are
valid
for
an
instrument
that
is
operating
in
an
ambient
temperature
between
+20
°C
and
+30
°C.
The
instrument
also
must
have
had
at
least
a
20-minute
warm-up
period.
All
tolerances
specified
are
for
the
instrument
only
and
do
not
include
test-equipment
error.
Appendix
C:
Performance
Verification
207
209
