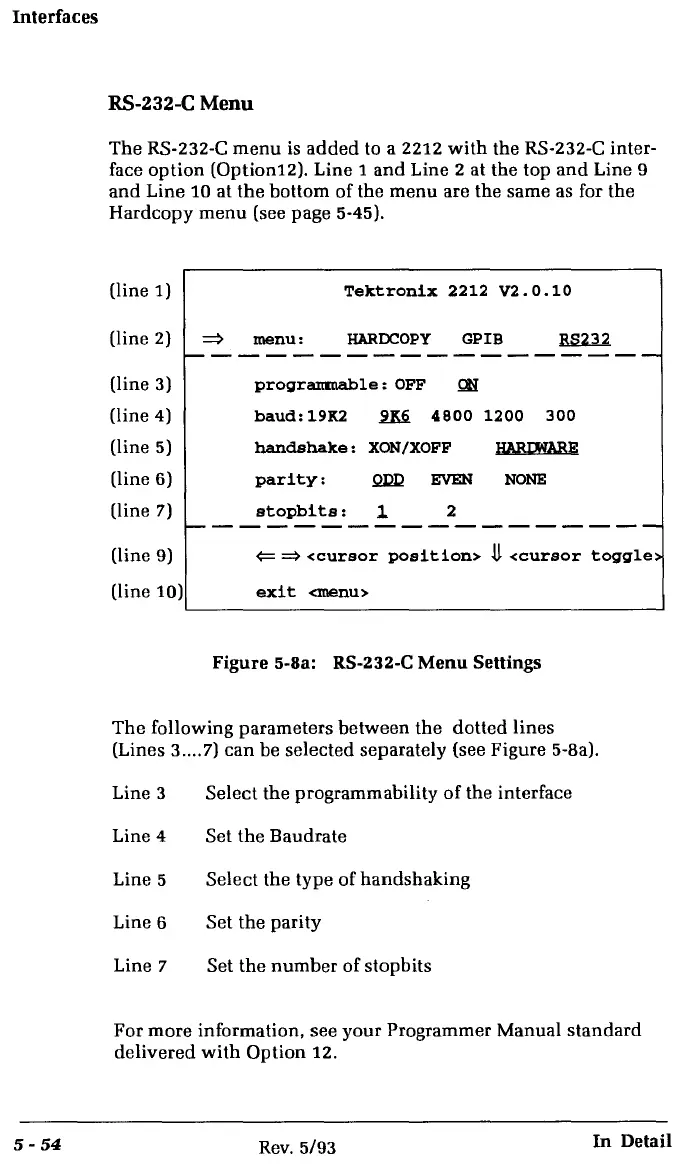

RS-232-C Menu
The RS-232-C menu is added to a 2212 with the RS-232-C inter-
face option (Option12). Line 1 and Line 2 at the top and Line 9
and Line 10 at the bottom of the menu are the same as for the
Hardcopy menu (see page 5-45).
(line 1) Tektronix 2212 v2.o.10
(line 2) • menu: HARDCOPY GPIB
(line 3)
(line 4)
(line 5)
(line 6)
(line 7)
(line 9)
(line 10)
progranmable: OFF ~
baud:19K2 il.6_ 4800 1200 300
handshake: XON/XOFF
HARIMARE
parity: Qm:l EVEN NONE
stopbits: l 2
¢::: • <cursor position> .U. <cursor toggle
exit <menu>
Figure 5-Ba: RS-232-C Menu Settings
The following parameters between the dotted lines
(Lines 3 .... 7) can be selected separately (see Figure 5-Ba).
Line 3
Line 4
Line 5
Line 6
Line 7
Select the programmability of the interface
Set the Baudrate
Select the type of handshaking
Set the parity
Set the number of stopbits
For more information, see your Programmer Manual standard
delivered with Option 12.
