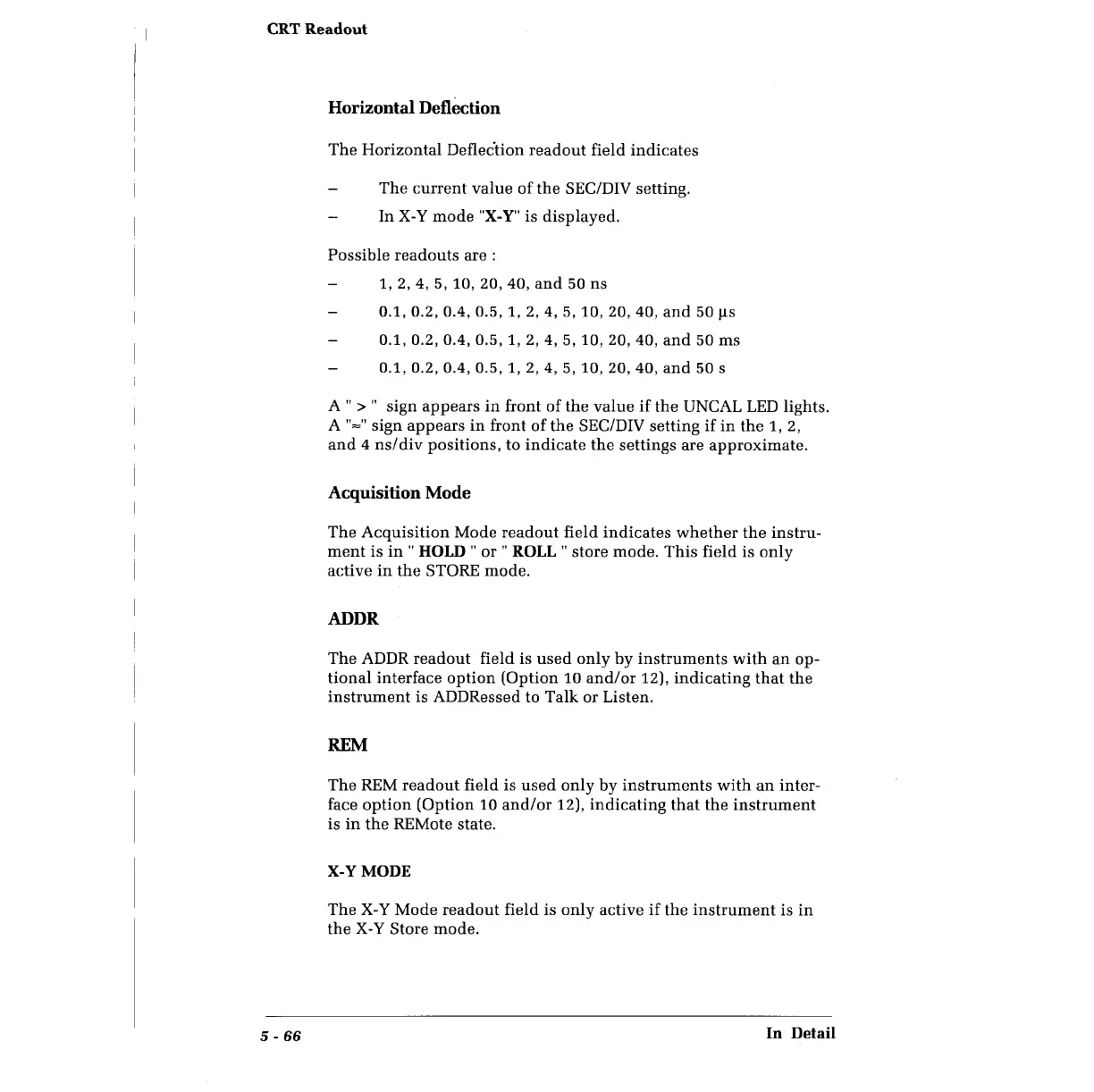

CRT
Readout
5-
66
Horizontal Deflection
The
Horizontal
Deflechon
readout
field
indicates
The
current
value
of
the
SEC/DIV setting.
In
X-Y
mode
"X-Y"
is
displayed.
Possible
readouts
are :
1, 2, 4, 5, 10, 20, 40,
and
50
ns
0.1, 0.2, 0.4, 0.5, 1, 2, 4, 5, 10, 20, 40,
and
50 µs
0.1, 0.2, 0.4, 0.5, 1, 2, 4, 5, 10, 20, 40,
and
50
ms
0.1, 0.2, 0.4, 0.5, 1, 2, 4, 5, 10, 20, 40,
and
50 s
A">"
sign
appears
in
front
of
the
value
if
the
UNCALLED lights.
A",,," sign
appears
in
front
of
the
SEC/DIV
setting
if
in
the
1, 2,
and
4
ns/div
positions,
to
indicate
the
settings
are
approximate.
Acquisition Mode
The
Acquisition
Mode
readout
field
indicates
whether
the
instru-
ment
is
in
" HOLD "
or
" ROLL " store
mode.
This
field is
only
active
in
the
STORE mode.
ADDR
The
ADDR
readout
field is
used
only
by
instruments
with
an
op-
tional
interface
option
(Option
10
and/or
12).
indicating
that
the
instrument
is ADDRessed to
Talk
or Listen.
REM
The
REM
readout
field is
used
only
by
instruments
with
an
inter-
face
option
(Option 10
and/or
12),
indicating
that
the
instrument
is
in
the
REMote state.
X-YMODE
The
X-Y
Mode
readout
field is
only
active
if
the
instrument
is
in
the
X-Y Store
mode.
In Detail
