Interfaces

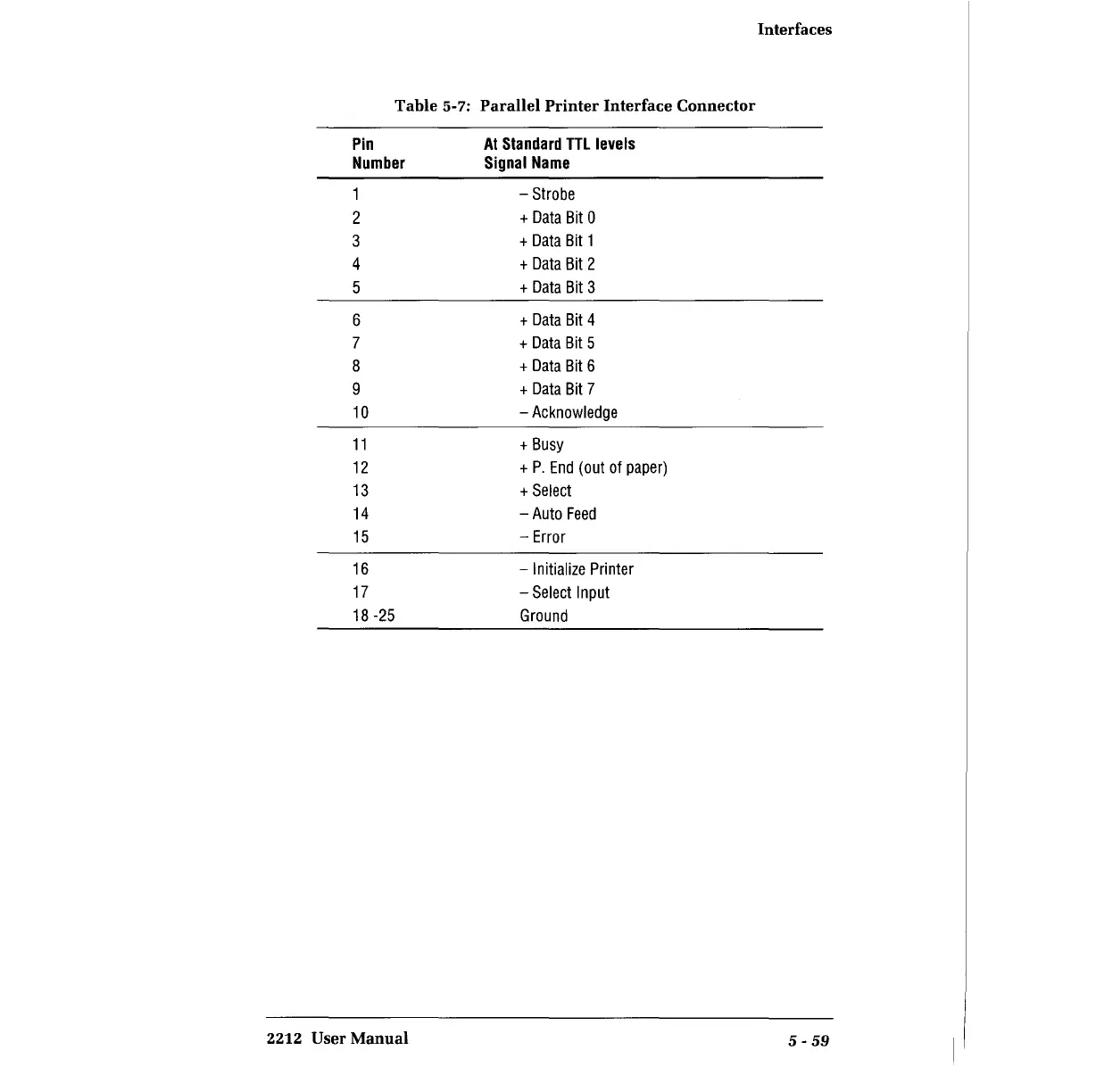

Table
5-7:
Parallel
Printer
Interface
Connector
Pin
At
Standard
TTL
levels
Number
Signal
Name
1
-
Strobe
2
+
Data
Bit
O
3
+
Data
Bit
1
4
+
Data
Bit
2
5
+
Data
Bit
3
6
+
Data
Bit
4
7
+
Data
Bit
5
8
+
Data
Bit
6
9
+
Data
Bit
7
10
-
Acknowledge
11
+
Busy
12
+
P.
End
(
out
of
paper)
13
+
Select
14
-Auto
Feed
15
-
Error
16
-
Initialize
Printer
17
-
Select
Input
18
-25
Ground
2212
User
Manual
5-59
144
146
