Nominal Traits

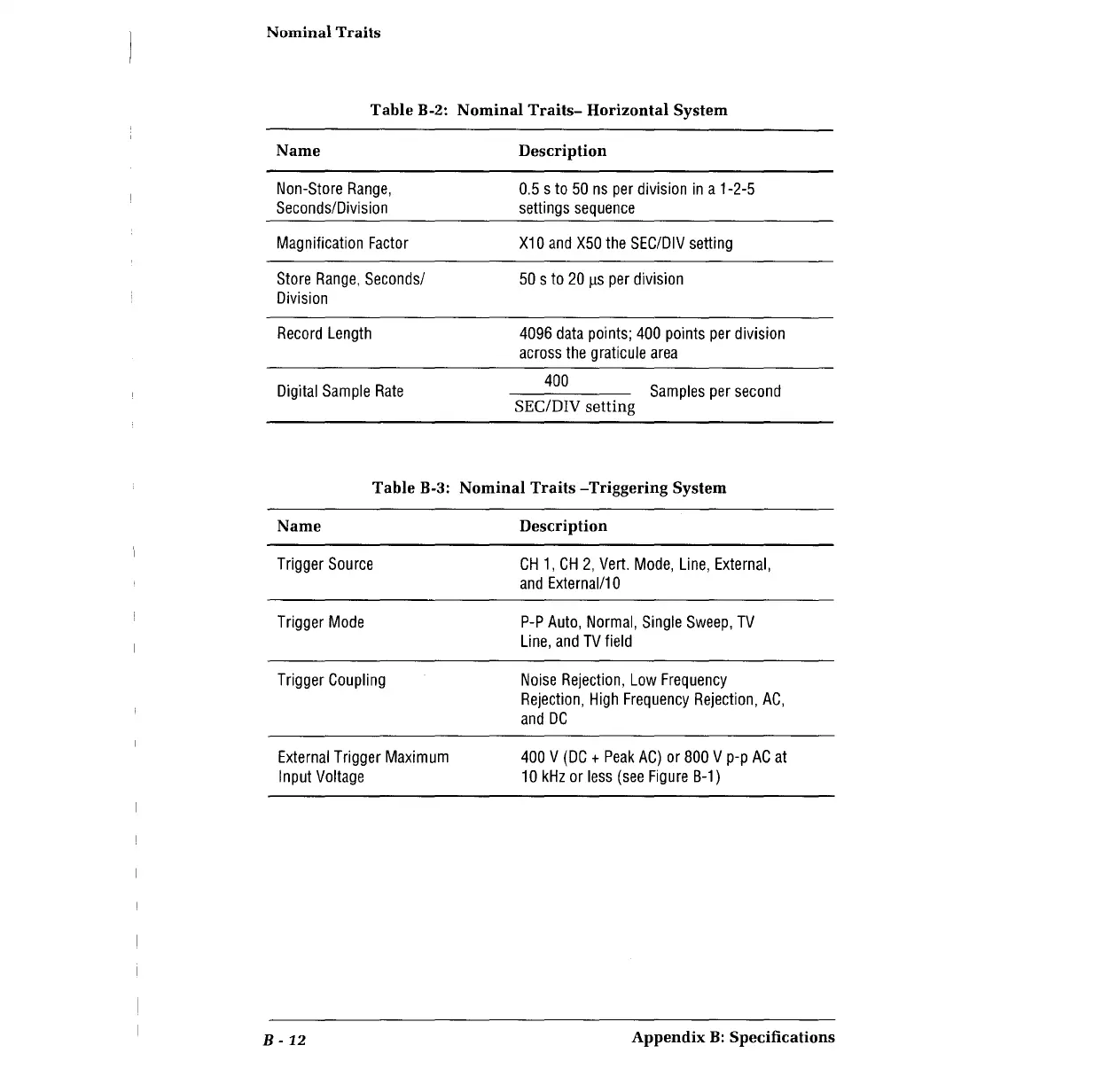

Table B-2: Nominal Traits- Horizontal System
Name
Non-Store Range,
Seconds/Division
Magnification Factor
Store Range, Seconds/
Division
Record Length
Digital Sample Rate
Description
0.5 s to 50 ns per division in a 1-2-5
settings sequence
X10 and X50 the SEC/DIV setting
50 s to 20 µs per division
4096 data points; 400 points per division
across the graticule area
400
Samples per second
SEC/DIV setting
Table B-3: Nominal Traits -Triggering System
Name
Trigger Source
Trigger Mode
Trigger Coupling
External Trigger Maximum
Input Voltage
B- 12
Description
CH 1, CH 2, Vert. Mode, Line, External,
and External/10
P-P Auto, Normal, Single Sweep, TV
Line, and TV field
Noise Rejection, Low Frequency
Rejection, High Frequency Rejection, AC,
and DC
400 V (DC+ Peak AC) or 800 V p-p AC at
10 kHz or less (see Figure B-1)
Appendix B: Specifications
