Warranted Characteristics

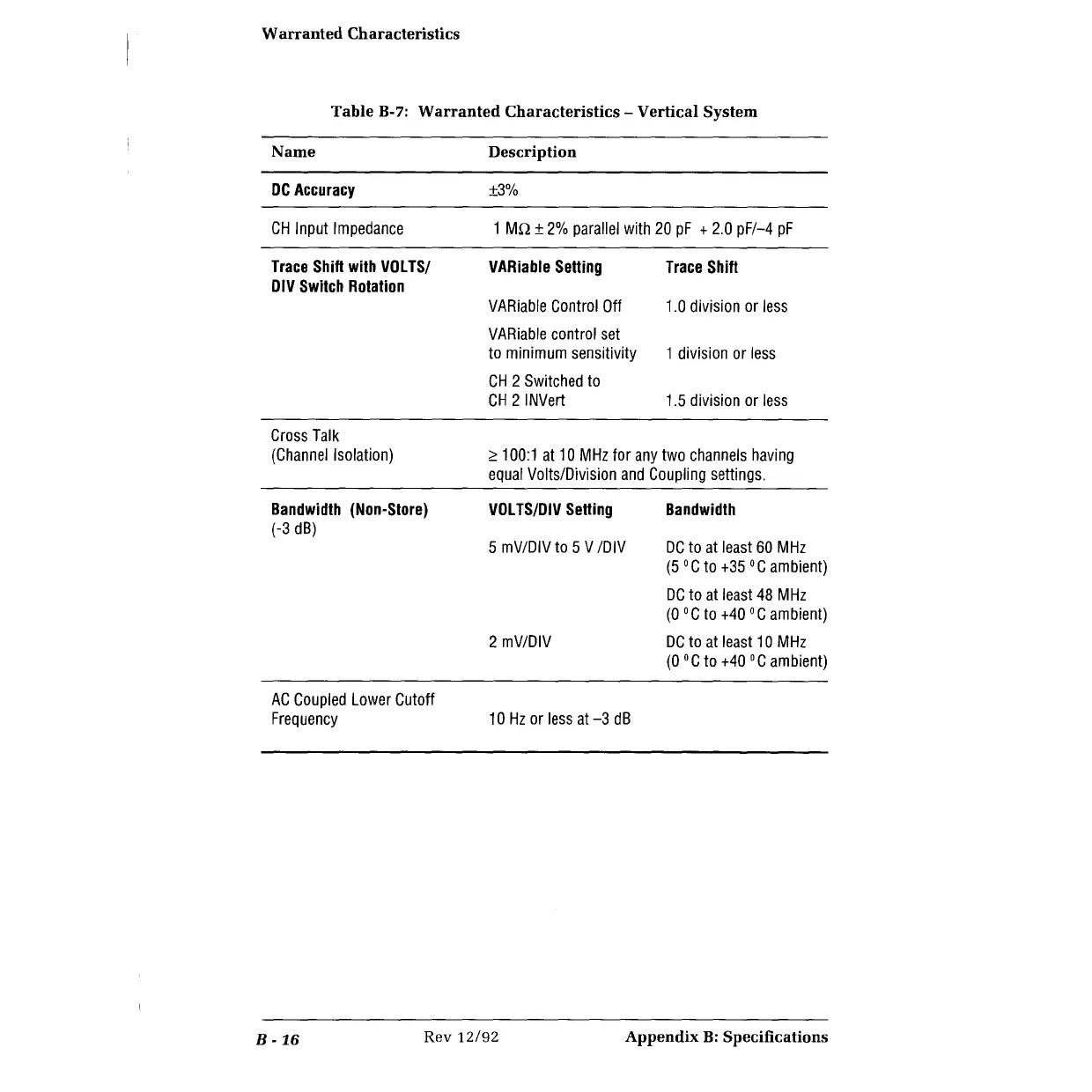

Table B-7: Warranted Characteristics - Vertical System
Name
DC Accuracy
CH Input Impedance
Trace Shiff with VOL TS/
DIV Switch Rotation
Cross Talk
(Channel Isolation)
Bandwidth (Non-Store)
(-3 dB)
AC Coupled Lower Cutoff
Frequency
Description
±3%
1 Mn± 2% parallel with 20 pF + 2.0 pF/-4 pF
VARiable Setting
VARiable Control Off
VARiable control set
Trace Shift
1.0 division or less
to minimum sensitivity 1 division or less
CH 2 Switched to
CH 2 INVert 1.5 division or less
;:: 100:1 at 10 MHz for any two channels having
equal Volts/Division and Coupling settings.
VOL TS/DIV Setting
Bandwidth
5 mV/DIV to 5 V /DIV DC to at least 60 MHz
(5 ° C to +35 ° C ambient)
DC to at least 48 MHz
(0 ° C to +40 ° C ambient)
2 mV/DIV DC to at least 10 MHz
(0 ° C to +40 ° C ambient)
10 Hz or less at -3 dB
B-16
Rev 12/92
