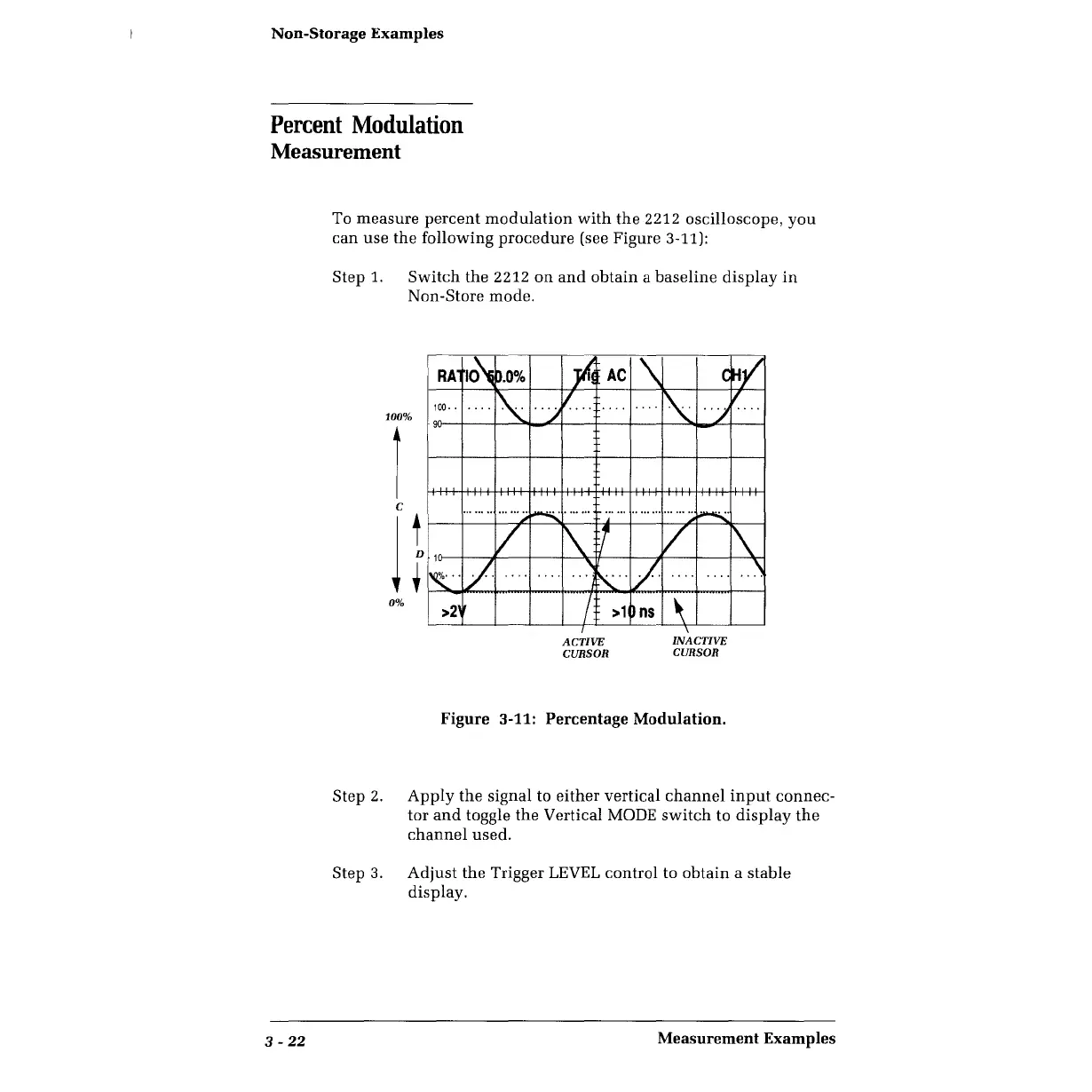

Non-Storage
Examples
Percent
Modulation
Measurement
To
measure
percent
modulation
with
the
2212
oscilloscope,
you
can
use
the
following
procedure
(see
Figure
3-11):
Step
1.
Switch
the
2212
on
and
obtain
a
baseline
display
in
Non-Store
mode.
100%
1
f----+---+-.
9
~-+-+----l
C
l},~~---------
0%
ACTIVE
CURSOR
INACTIVE
CURSOR
Figure
3-11:
Percentage
Modulation.
Step
2.
Apply
the
signal
to
either
vertical
channel
input
connec-
tor
and
toggle
the
Vertical
MODE
switch
to
display
the
channel
used.
Step
3.
Adjust
the
Trigger
LEVEL
control
to
obtain
a
stable
display.
3
-
22
Measurement
Examples
69
71
