Warranted Characteristics

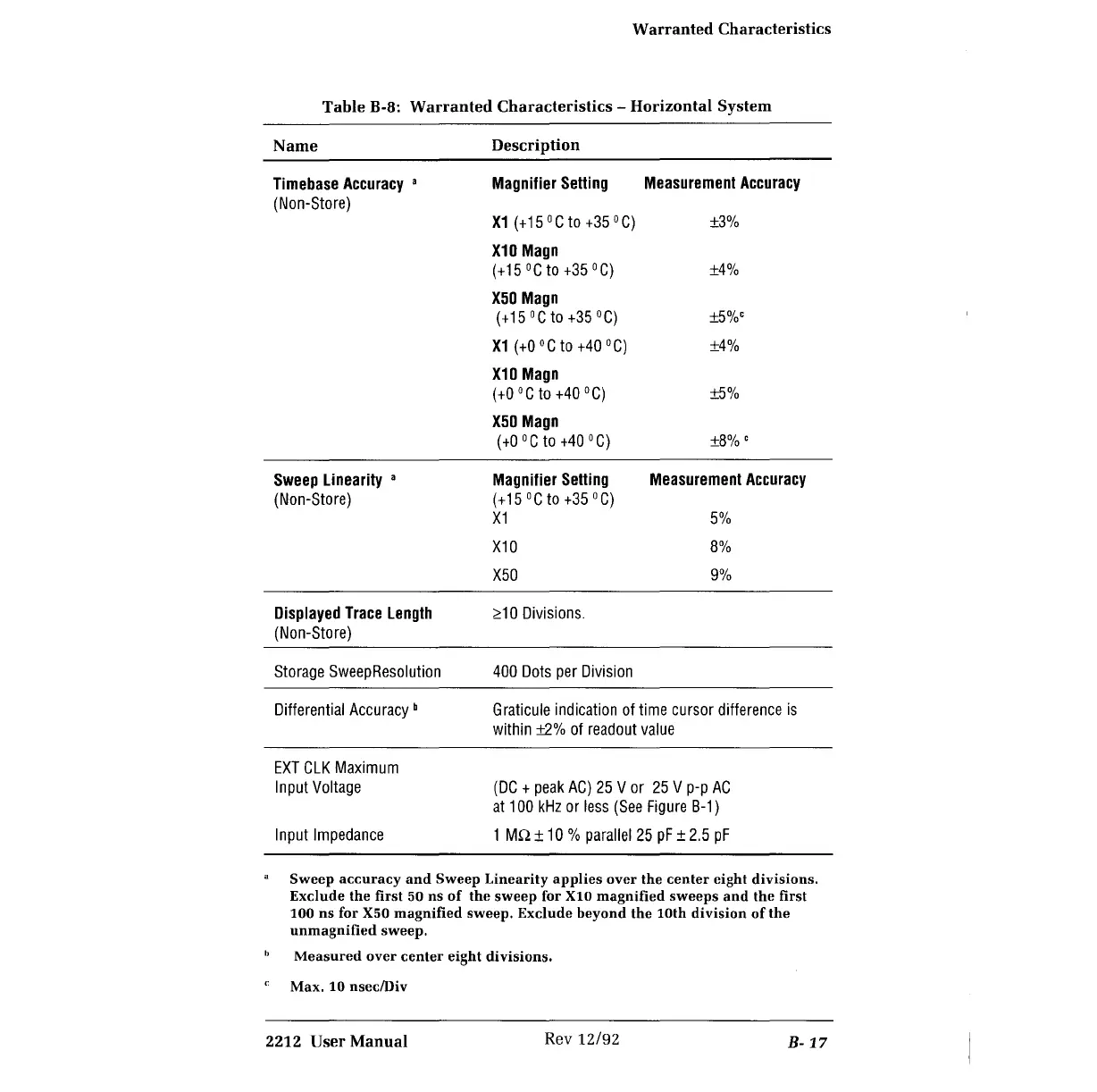

Table B-8: Warranted Characteristics - Horizontal System
Name
Timebase Accuracy •
(Non-Store)
Sweep Linearity •
(Non-Store)
Displayed Trace Length
(Non-Store)
Storage SweepResolution
Differential Accuracy b
EXT CLK Maximum
Input Voltage
Input Impedance
Description
Magnifier Setting
Measurement Accuracy
X1 ( + 15 ° C to +35 ° C)
±3%
X10 Magn
(+ 15 °c to +35 °C)
±4%
X50 Magn
(+15 °C to +35 °C) ±5%'
X1 (+0 °C to +40 °C)
±4%
X10 Magn
(+0 °C to +40 °C)
±5%
X50 Magn
( +0 ° C to +40 ° C)
±8% C
Magnifier Setting
Measurement Accuracy
(+15 °c to +35 °C)
X1 5%
X10
8%
X50
9%
~1 0 Divisions.
400 Dots per Division
Graticule indication of time cursor difference is
within ±2% of readout value
(DC + peak AC) 25 V or 25 V p-p AC
at 100 kHz or less (See Figure B-1)
1 Mn± 10 % parallel 25 pF ± 2.5 pF
Sweep accuracy and Sweep Linearity applies over the center eight divisions.
Exclude the first 50 ns of the sweep for XlO magnified sweeps and the first
100 ns for X50 magnified sweep. Exclude beyond the 10th division of the
unmagnified sweep.
Measured over center eight divisions,
Max. 10 nsec/Div
2212 User Manual
Rev 12/92
B-17
