Tektronix 2212 User Manual

Warranted Characteristics

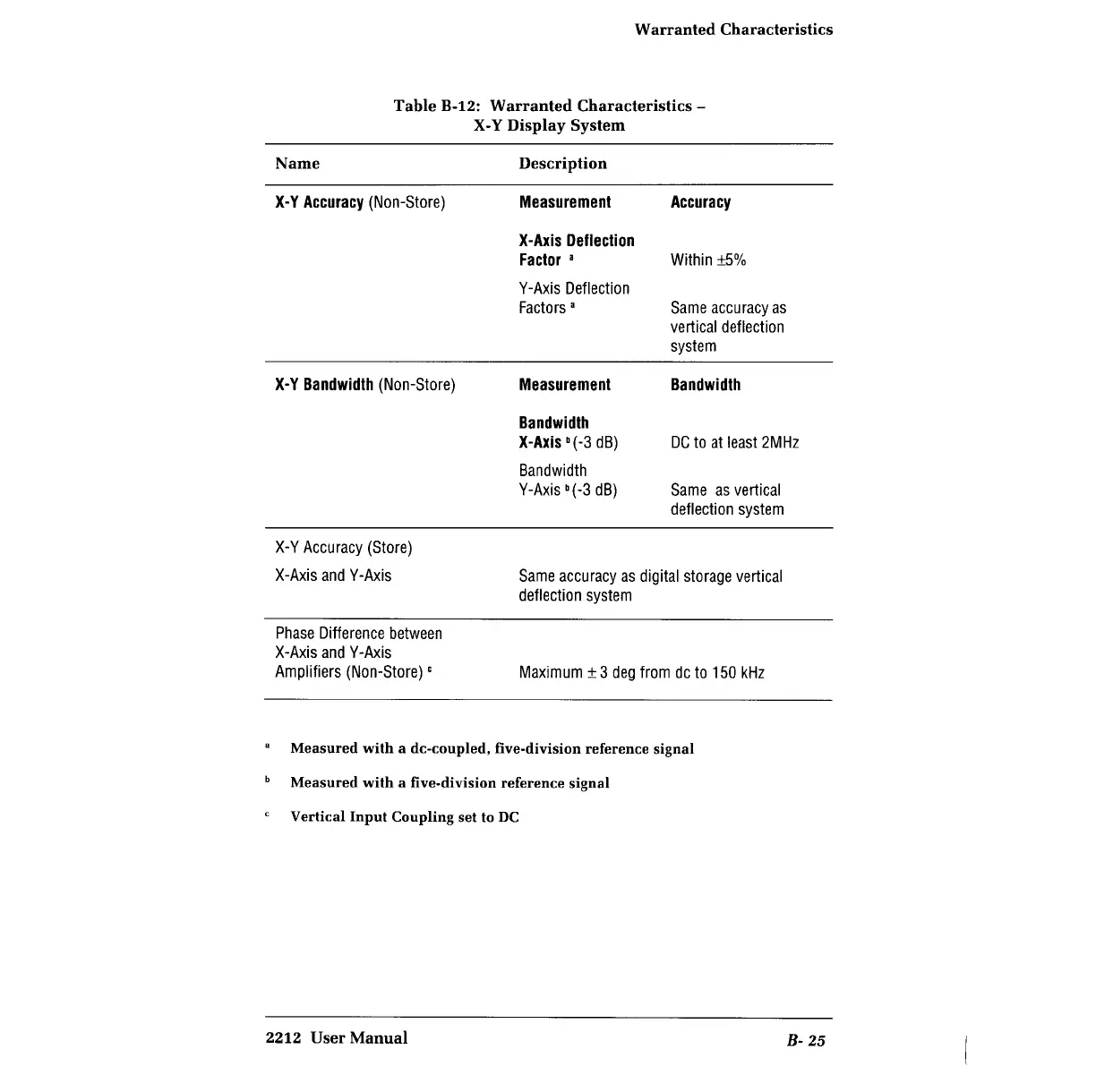

Table B-12: Warranted Characteristics -
X-Y Display System
Name
X-Y Accuracy (Non-Store)
X-Y Bandwidth (Non-Store)
Description
Measurement
X-Axis Deflection
Factor •
Y-Axis Deflection
Factors •
Accuracy
Within ±5%
Same accuracy as
vertical deflection
system
Bandwidth Measurement
Bandwidth
X-Axis b(-3 dB)
DC to at least 2MHz
X-Y Accuracy (Store)
X-Axis and Y-Axis
Phase Difference between
X-Axis and Y-Axis
Amplifiers (Non-Store)•
Bandwidth
Y-Axis b(-3 dB)
Same as vertical
deflection system
Same accuracy as digital storage vertical
deflection system
Maximum± 3 deg from de to 150 kHz
• Measured with a de-coupled, five-division reference signal
h Measured with a five-division reference signal
c Vertical Input Coupling set to DC
