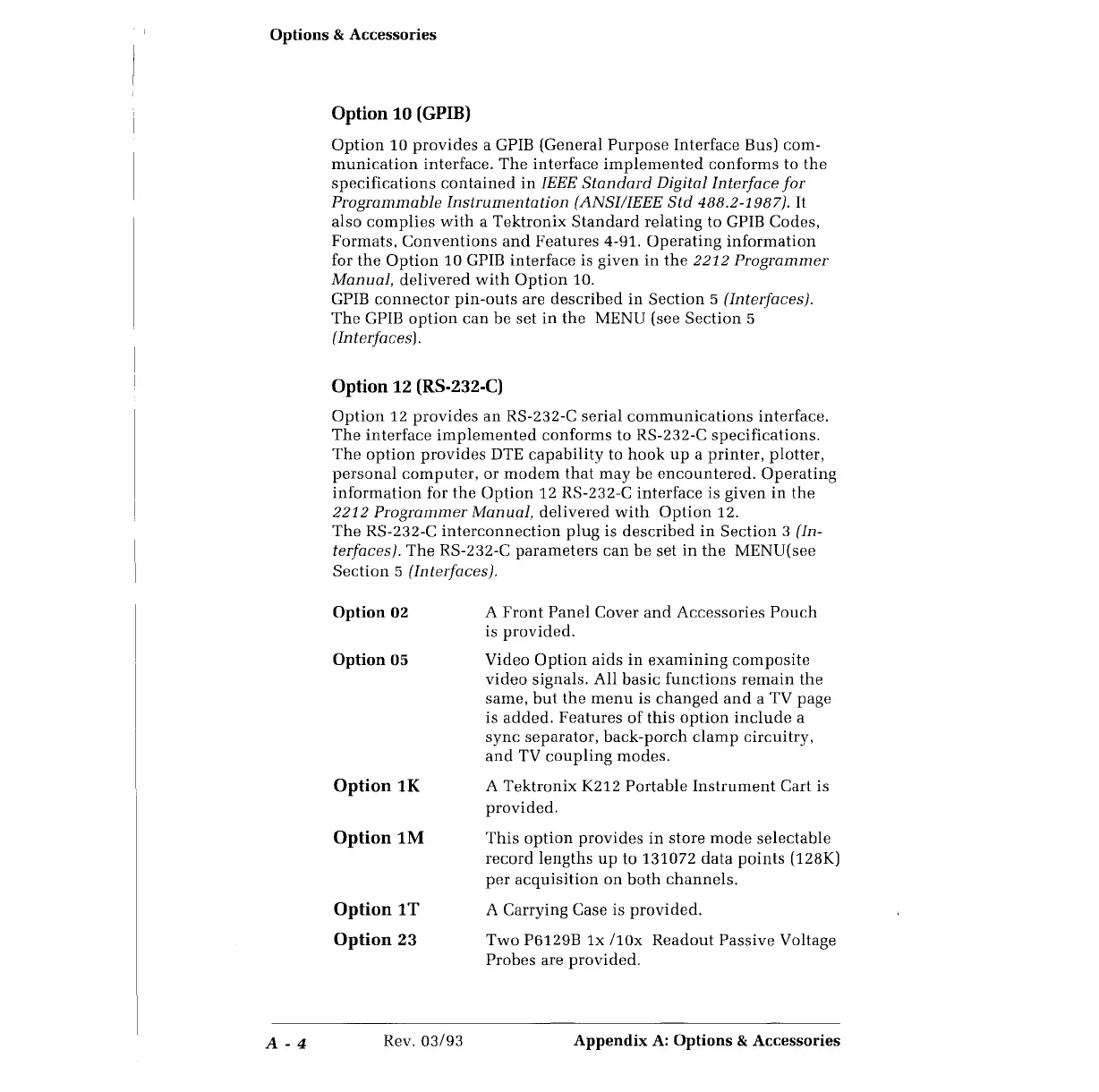

Option 10 (GPIB)
Option 10 provides a GPIB (General Purpose Interface Bus) com-
munication interface. The interface implemented conforms to the
specifications contained in IEEE Standard Digital Interface for
Programmable Instrumentation (ANSI/IEEE Std 488.2-1987). It
also complies with a Tektronix Standard relating to GPIB Codes,
Formats, Conventions and Features 4-91. Operating information
for the Option 10 GPIB interface is given in the 2212 Programmer
Manual, delivered with Option 10.
GPIB connector pin-outs are described in Section 5 (Interfaces).
The GPIB option can be set in the MENU (see Section 5
(Interfaces).
Option 12 (RS-232-C)
Option 12 provides an RS-232-C serial communications interface.
The interface implemented conforms to RS-232-C specifications.
The option provides DTE capability to hook up a printer, plotter,
personal computer, or modem that may be encountered. Operating
information for the Option 12 RS-232-C interface is given in the
2212 Programmer Manual, delivered with Option 12.
The RS-232-C interconnection plug is described in Section 3 (In-
terfaces). The RS-232-C parameters can be set in the MENU(see
Section 5 (Interfaces).
Option 02
Option 05
Option 1K
Option 1M
Option 1T
Option 23
Rev. 03/93
A Front Panel Cover and Accessories Pouch
is provided.
Video Option aids in examining composite
video signals. All basic functions remain the
same, but the menu is changed and a TV page
is added. Features of this option include a
sync separator, back-porch clamp circuitry,
and TV coupling modes.
A Tektronix K212 Portable Instrument Cart is
provided.
This option provides in store mode selectable
record lengths up to 131072 data points (128K)
per acquisition on both channels.
A Carrying Case is provided.
Two P6129B 1x /10x Readout Passive Voltage
Probes are provided.
Appendix A: Options & Accessories
