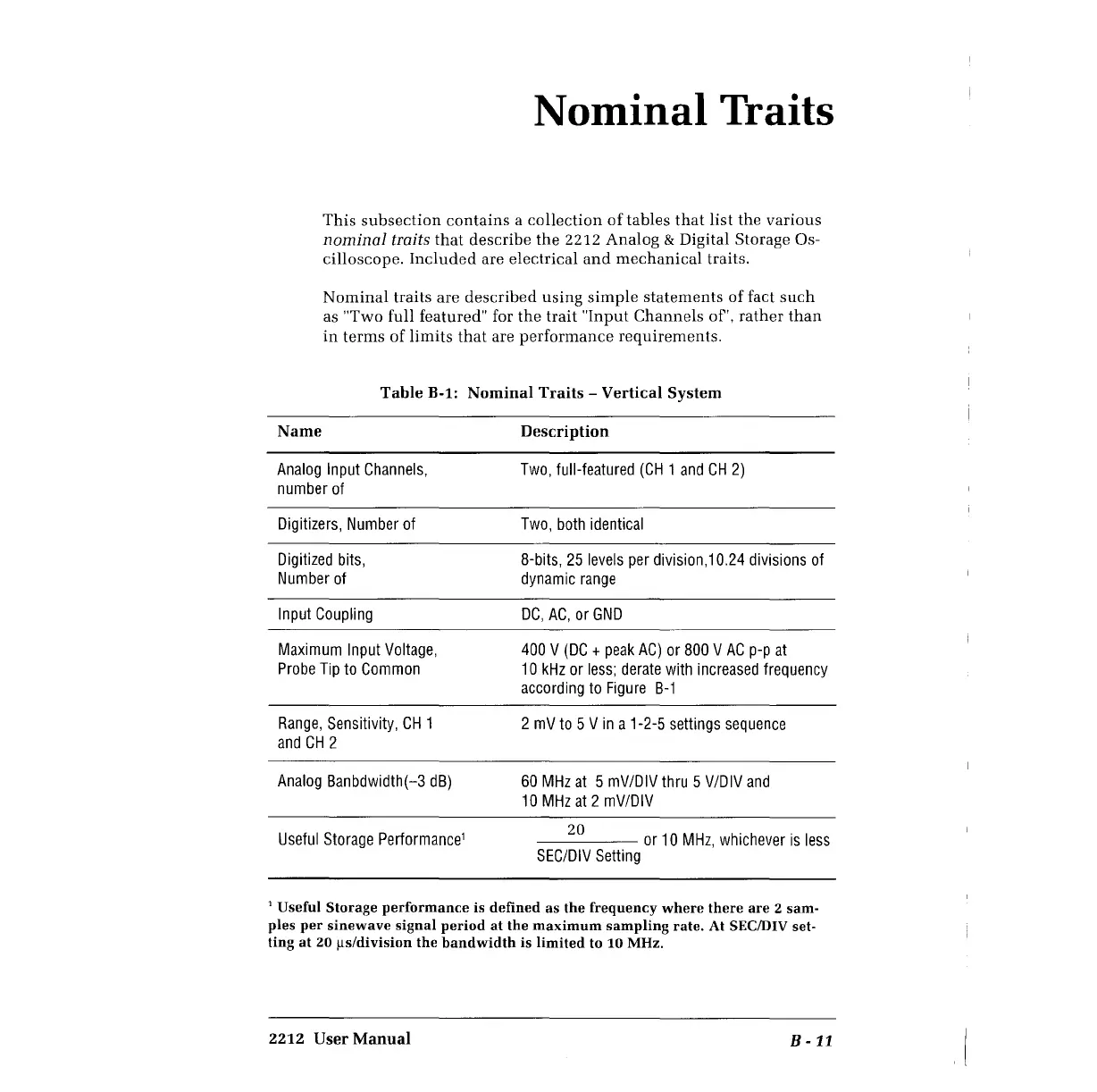

Nominal Traits
This subsection contains a collection of tables that list the various
nominal traits that describe the 2212 Analog & Digital Storage Os-
cilloscope. Included are electrical and mechanical traits.
Nominal traits are described using simple statements of fact such
as "Two full featured" for the trait "Input Channels of', rather than
in terms of limits that are performance requirements.
Table B-1: Nominal Traits - Vertical System
Name
Analog Input Channels,
number of
Digitizers, Number of
Digitized bits,
Number of
Input Coupling
Maximum Input Voltage,
Probe Tip to Common
Range, Sensitivity, CH 1
and CH 2
Analog Banbdwidth(-3 dB)
Useful Storage Performance
1
Description
Two, full-featured (CH 1 and CH 2)
Two, both identical
8-bits, 25 levels per division, 10.24 divisions of
dynamic range
DC, AC, or GND
400 V (DC + peak AC) or 800 V AC p-p at
10 kHz or less; derate with increased frequency
according to Figure B-1
2 mV to 5 V in a 1-2-5 settings sequence
60 MHz at 5 mV/DIV thru 5 V/DIV and
10 MHz at 2 mV/DIV
20
----- or 10 MHz, whichever is less
SEC/DIV Setting
1
Useful Storage performance is defined as the frequency where there are 2 sam-
ples per sinewave signal period at the maximum sampling rate. At SEC/DIV set-
ting at 20 µs/division the bandwidth is limited to 10 MHz.
2212 User Manual
B-11
