Non-Storage Examples

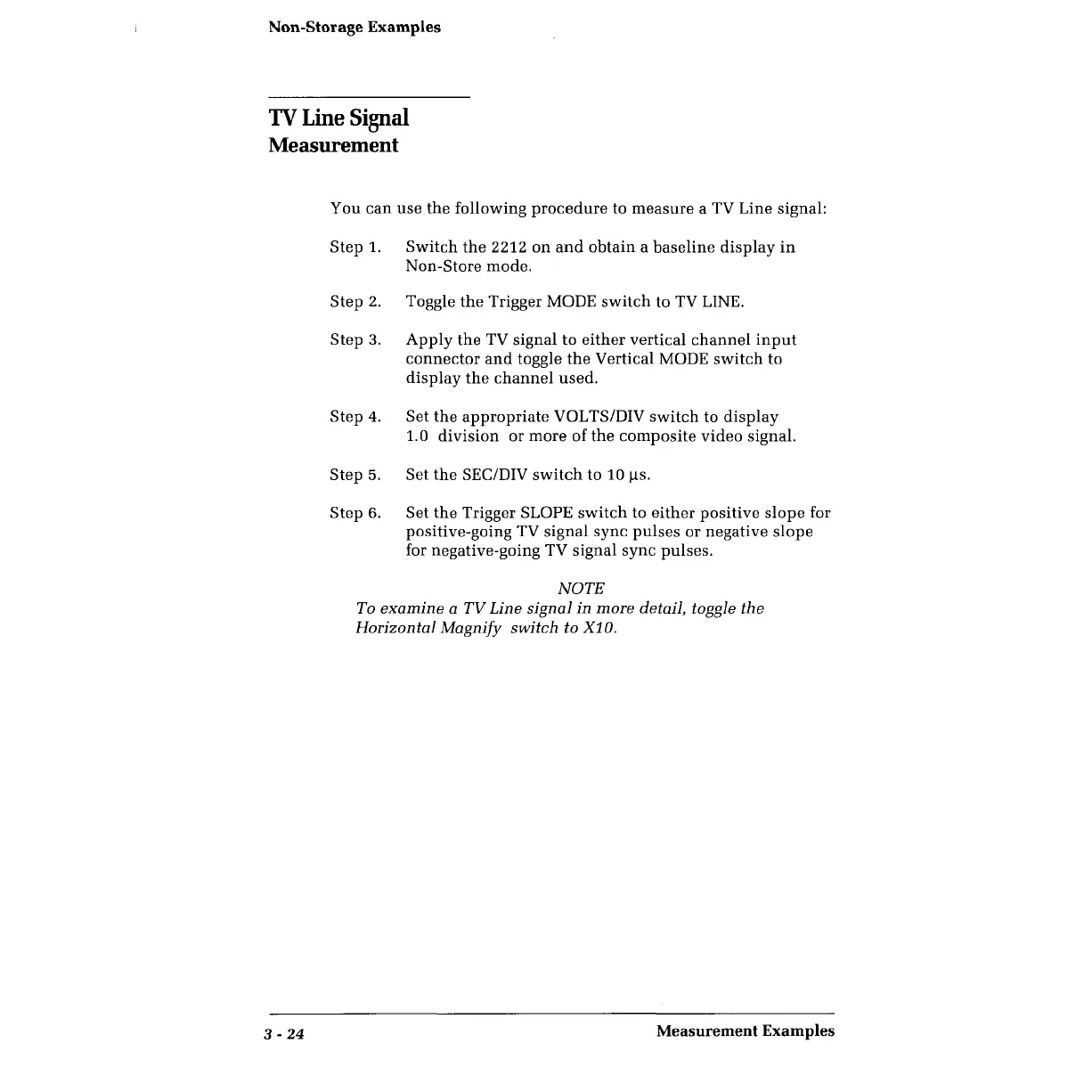

TV Line Signal
Measurement
3- 24
You can use the following procedure to measure a TV Line signal:
Step 1. Switch the 2212 on and obtain a baseline display in
Non-Store mode.
Step 2. Toggle the Trigger MODE switch to TV LINE.
Step 3. Apply the TV signal to either vertical channel input
connector and toggle the Vertical MODE switch to
display the channel used.
Step 4. Set the appropriate VOL TS/DIV switch to display
1.0 division or more of the composite video signal.
Step 5. Set the SEC/DIV switch to 10 µs.
Step 6. Set the Trigger SLOPE switch to either positive slope for
positive-going TV signal sync pulses or negative slope
for negative-going TV signal sync pulses.
NOTE
To examine a TV Line signal in more detail, toggle the
Horizontal Magnify switch to X10.
Measurement Examples
