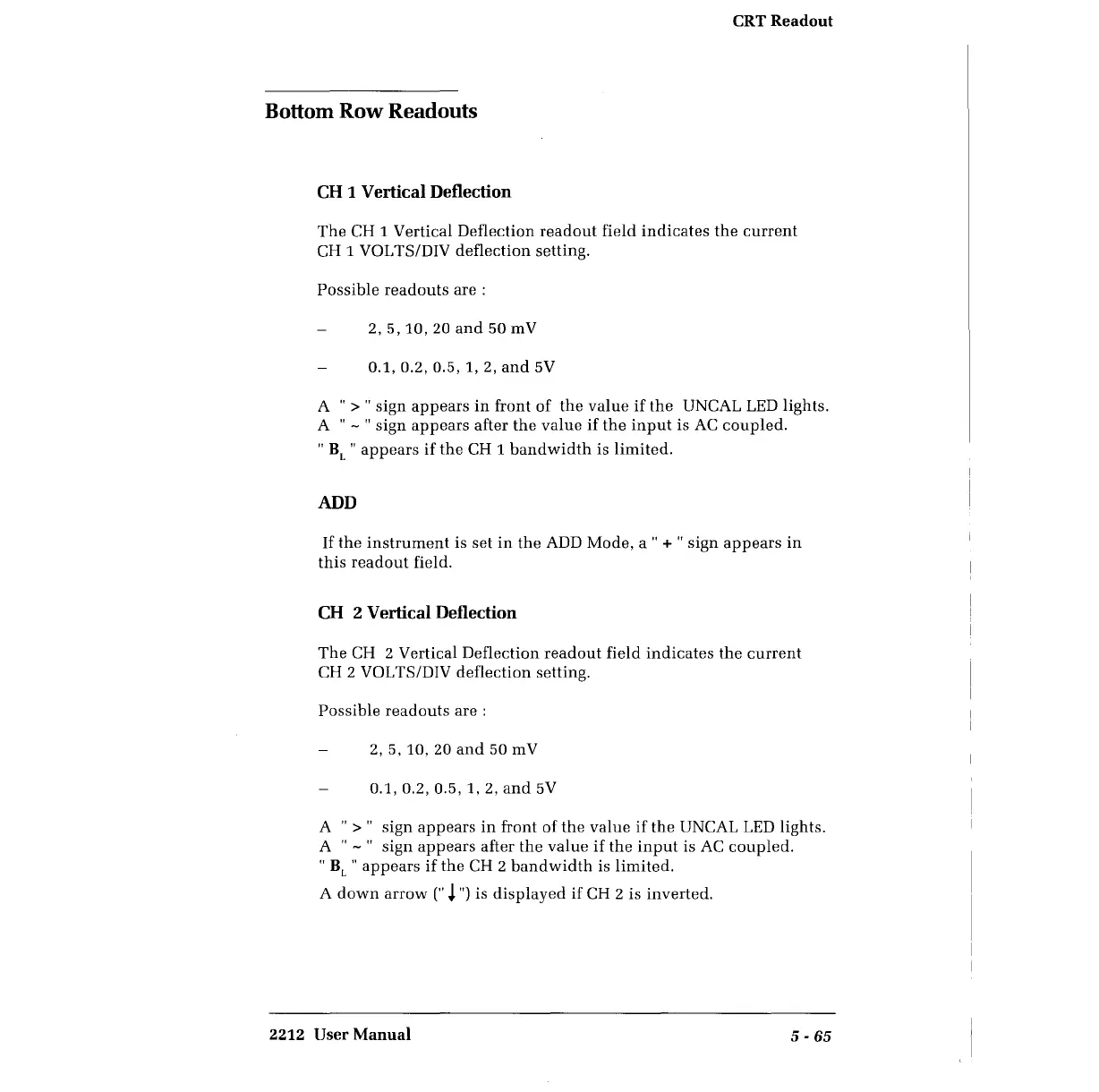

CRT
Readout
Bottom
Row
Readouts
CH
1 Vertical Deflection
The
CH 1 Vertical Deflection
readout
field
indicates
the
current
CH 1 VOL TS/DIV
deflection
setting.
Possible
readouts
are
:
2, 5,
10,
20
and
50 mV
0.1, 0.2, 0.5,
1,
2,
and
5V
A " > "
sign
appears
in
front
of
the
value
if
the
UNCAL
LED
lights.
A " ~ "
sign
appears
after
the
value
if
the
input
is AC
coupled.
" BL"
appears
if
the
CH 1
bandwidth
is
limited.
ADD
If
the
instrument
is set
in
the
ADD
Mode,
a " + "
sign
appears
in
this
readout
field.
CH
2 Vertical Deflection
The
CH 2 Vertical Deflection
readout
field
indicates
the
current
CH 2 VOL TS/DIV
deflection
setting.
Possible
readouts
are
:
2,
5, 10, 20
and
50 mV
0.1, 0.2, 0.5, 1, 2,
and
5V
A " > "
sign
appears
in
front
of
the
value
if
the
UNCALLED lights.
A " ~ "
sign
appears
after
the
value
if
the
input
is AC
coupled.
"
BL
"
appears
if
the
CH 2
bandwidth
is
limited.
A
down
arrow
("
,!
")
is
displayed
if
CH 2 is
inverted.
2212 User Manual
5-
65
